CARBURETOR ASSY ('82-'83 C3/C4)
KZ550C1 LTD 1980 USA CANADA

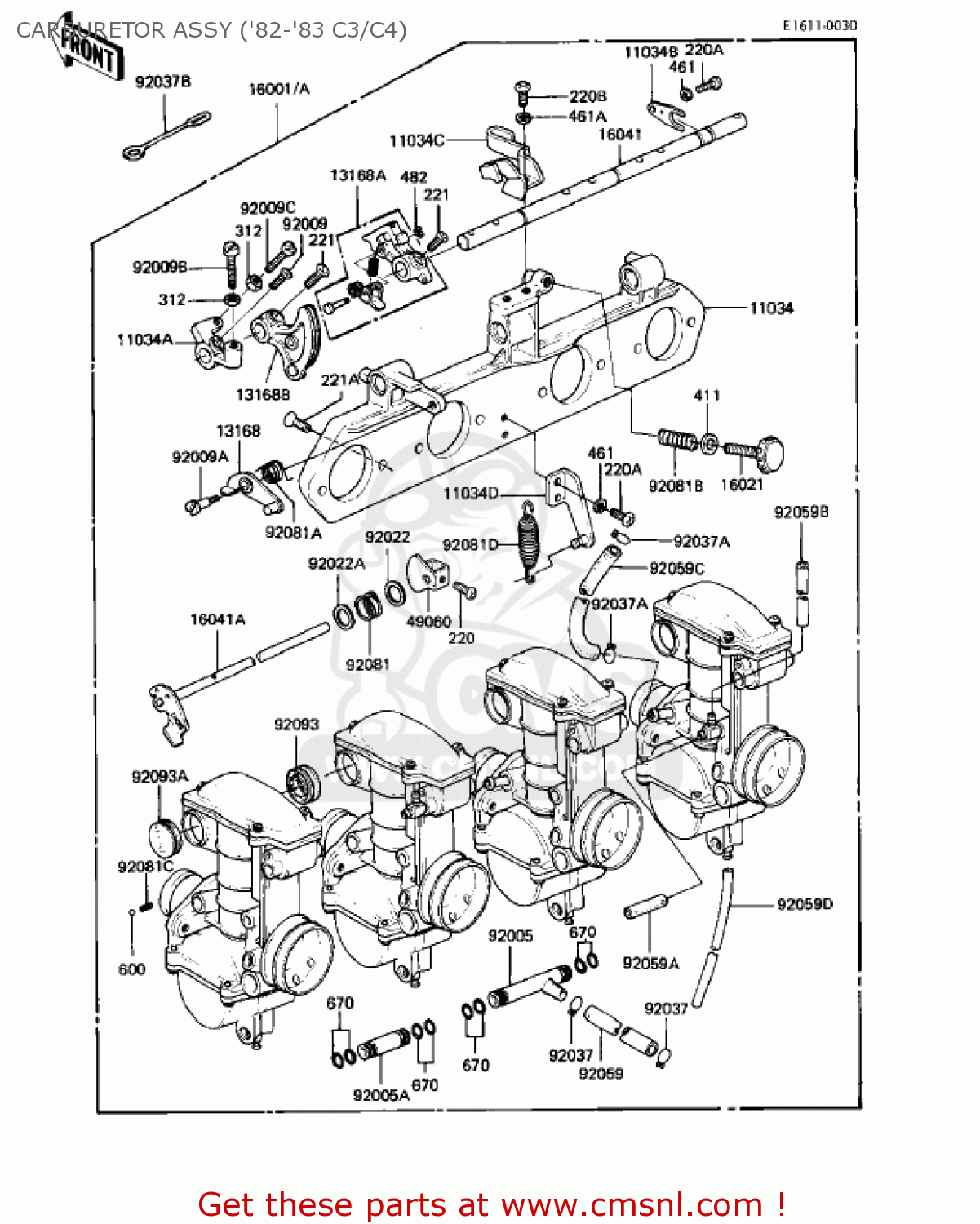

Carburetor assy ('82-'83 c3/c4) diagram KZ550C1 LTD 1980 USA CANADA
CARBURETOR ASSY ('82-'83 C3/C4) KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11034
110341588
ref: 11034
BRACKET,CARBURETOR
€ 80.50
11034A
110341590
ref: 11034A
BRACKET,THROTTLE STOP
€ 10.50
11034B
110341591
ref: 11034B
PLATE,THROTTLE SHAFT
€ 5.50
11034C
110341592
ref: 11034C
BRACKET,THROTTLE CABL
€ 13.00
11034D
110341593
ref: 11034D
BRACKET,THROTTLE SPR
€ 7.50
13168
131681053
ref: 13168
LEVER
€ 12.50
13168A
131681054
ref: 13168A
LEVER ASSY,THROTTLE
€ 27.00
13168B
131681055
ref: 13168B
LEVER ASSY,THROTTLE
€ 27.50
16001
160011210
ref: 16001
US
CARBURETOR ASSEMBLY
€ 826.00
16001A
160011285
ref: 16001A
CN
CARBURETOR ASSY
€ 1,742.00
16021
160211017
ref: 16021
SCREW,THROTTLE ADJUST
€ 12.00
16041
160411012
ref: 16041
SHAFT,THROTTLE
€ 65.00
16041A
160411021
ref: 16041A
SHAFT,CHOKE LEVER
€ 21.00
49060
490601002
ref: 49060
CAM,CHOKE
€ 8.00
92005
920051020
ref: 92005
FITTING,FUEL,T-TYPE
€ 20.50
92005A
920051021
ref: 92005A
FITTING,FUEL,I-TYPE
€ 20.00
92009
920091080
ref: 92009
SCREW,COUNTERSUNK HD
€ 2.50
92009A
920091081
ref: 92009A
SCREW,TIMING LEVER
€ 6.50
92009B
920091082
ref: 92009B
SCREW,TIMING LEVER
€ 3.00
92009C
920091083
ref: 92009C
SCREW,THROTTLE OPEN
€ 2.50
92022
920221168
ref: 92022
WASHER,CHOKE LEVER SP
€ 3.00
92022A
920221169
ref: 92022A
WASHER,CHOKE LEVER
€ 3.00
92037
920371158
ref: 92037
CLAMP,FUEL HOSE
€ 4.50
92037A
920371159
ref: 92037A
CLAMP,NEGATIVE HOSE
€ 2.00
92037B
92037134
ref: 92037B
CLAMP,OVER FLOW PIPE
€ 7.50
92059
920591098
ref: 92059
HOSE,FUEL,7X12X180
€ 19.50
92059A
920591099
ref: 92059A
HOSE,AIR VENT,4.5X30
€ 3.50
92059B
920591100
ref: 92059B
HOSE,AIR VENT,4.5X300
€ 11.50
92059C
920591101
ref: 92059C
HOSE,NEGATIVE,5.4X280
€ 20.00
92059D
920591102
ref: 92059D
HOSE,OVERFLOW,3.5X550
€ 16.50
92081
920811191
ref: 92081
SPRING,CHOKE LEVER
€ 4.50
92081A
920811192
ref: 92081A
SPRING,TIMING LEVER
€ 3.00
92081B
920811193
ref: 92081B
SPRING,ADJUST SCREW
€ 4.50
92081C
920811195
ref: 92081C
SPRING,CHOKE LEVER
€ 1.50
92081D
920811381
ref: 92081D
SPRING,THROTTLE RETRN
€ 9.50
92093
920931033
ref: 92093
SEAL,THROTTLE SHAFT
€ 10.00
92093A
920931034
ref: 92093A
CAP,THROTTLE SHAFT
€ 8.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0514
ref: 220A
ACREW-PAN HEAD,5X14
€ 2.50
220B
220B0614
ref: 220B
SCREW-PAN HEAD,6X14
€ 2.00
221
221B0514A
ref: 221
SCREW-CNTSNK HD,5X14
€ 2.50
221A
221B0616
ref: 221A
SCREW-CNTSNK HD,6X16
€ 0.50
312
312B0500
ref: 312
NUT-HEX,5MM
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
482
482J3000
ref: 482
CIRCLIP,3M/M
€ 2.00
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
670
670B1507
ref: 670
O RING,7MM
€ 1.00
