METERS ('82-'83 C3/C4)
KZ550C1 LTD 1980 USA CANADA

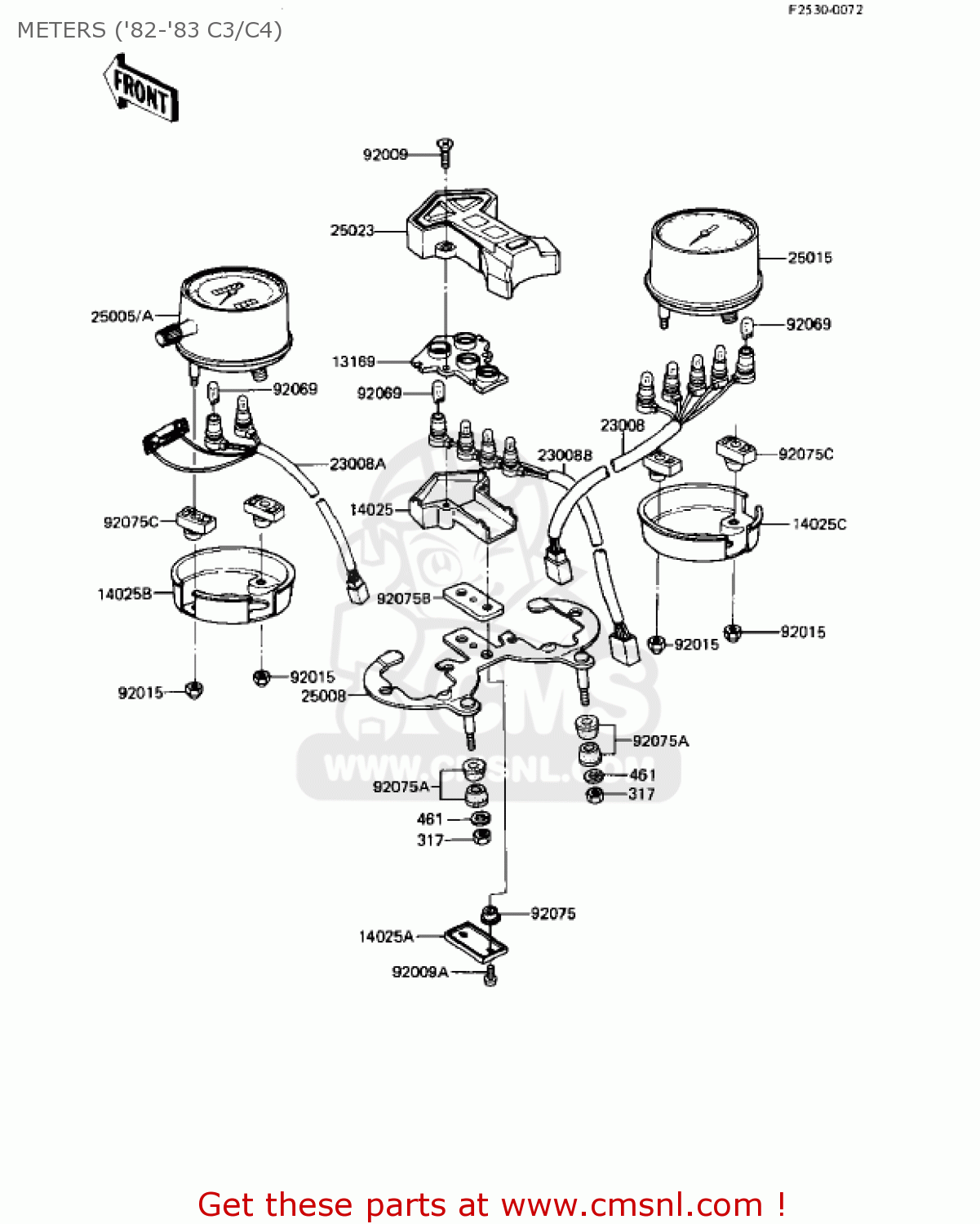

Meters ('82-'83 c3/c4) diagram KZ550C1 LTD 1980 USA CANADA
METERS ('82-'83 C3/C4) KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13169
131691120
ref: 13169
PLATE,SOCKET
€ 4.50
14025
140251067
ref: 14025
COVER,PILOT BOX,LWR
€ 18.00
14025A
140251070
ref: 14025A
COVER,PILOT BOX DAMPE
€ 3.50
14025B
140251218
ref: 14025B
COVER,SPEEDOMETER
€ 43.00
14025C
140251219
ref: 14025C
COVER,TACHOMETER
€ 20.50
23008
230081101
ref: 23008
TACHOMETER SOCKET ASSEMBLY
€ 42.00
23008A
230081122
ref: 23008A
SOCKET-ASSY,SPEEDOMET
€ 36.00
23008B
230081123
ref: 23008B
SOCKET-ASSY,PILOT BOX
€ 52.50
25005
250051151
ref: 25005
US
SPEEDOMETER, MPH
€ 358.00
25005A
250051152
ref: 25005A
CN
SPEEDOMETER,KPH
€ 299.50
25008
250081011
ref: 25008
BRACKET-METER
€ 55.50
25015
250151102
ref: 25015
TACHOMETER,X1000RPM
€ 324.00
25023
250231007
ref: 25023
COVER,PILOT BOX,UPP
€ 35.50
92009
920091039
ref: 92009
SCREW,4X10,BLACK
€ 2.50
92009A
920091040
ref: 92009A
SCREW,TAPPING,4X10
€ 2.50
92015
322N0500
ref: 92015
NUT-CAP,5MM
€ 2.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92075
25019023
ref: 92075
DAMPER RUBBER,METER
€ 2.50
92075A
92075080
ref: 92075A
DAMPER
€ 5.50
92075B
920751100
ref: 92075B
DAMPER,SHOCK,PILOT BO
€ 4.50
92075C
920751101
ref: 92075C
DAMPER,SHOCK,METER
€ 5.00
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
