FRAME FITTINGS/BATTERY CASE ('80
KZ550C1 LTD 1980 USA CANADA

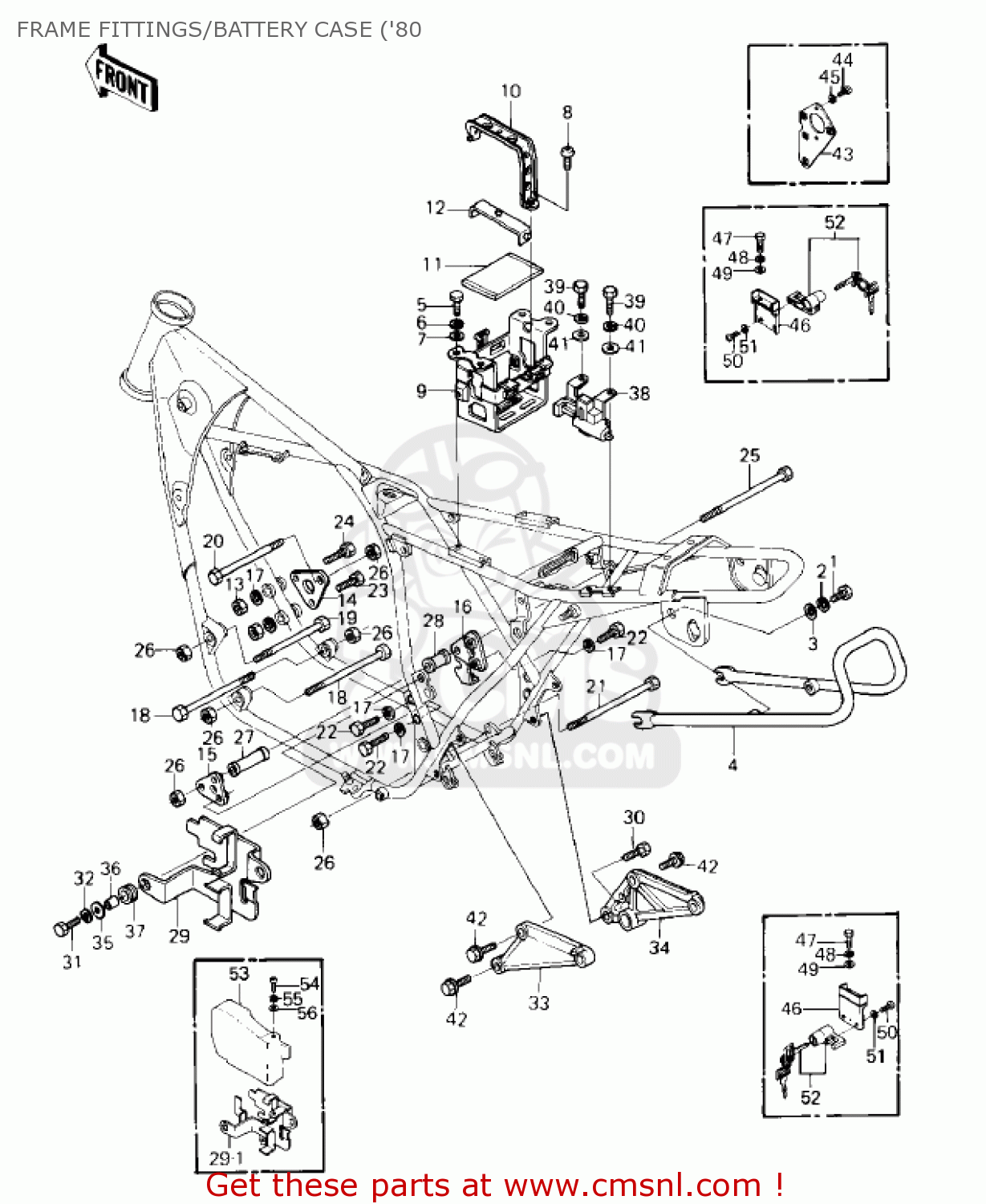

Frame fittings/battery case ('80 diagram KZ550C1 LTD 1980 USA CANADA
FRAME FITTINGS/BATTERY CASE ('80 KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
115G0818
ref: 1
BOLT SMALL-UPSET
€ 2.50
2
461F0800
ref: 2
WASHER-SPRING,8MM
€ 0.50
3
410B0800
ref: 3
WASHER-PLAIN-SMALL,8M
€ 0.50
4
350111050
ref: 4
STAY,REAR
€ 88.00
5
112G0612
ref: 5
BOLT-UPSET
€ 2.50
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
411B0600
ref: 7
WASHER-PLAIN,6MM
€ 0.50
8
220B0612
ref: 8
SCREW-PAN HEAD,6X12
€ 1.00
9
320971027
ref: 9
CASE,BATTERY
€ 26.50
10
920721019
ref: 10
BAND,BATTERY
€ 6.50
11
920751076
ref: 11
DAMPER,BATTERY BASE
€ 6.00
12
920751113
ref: 12
DAMPER,BATTERY BAND
€ 4.50
13
317B0800
ref: 13
NUT,8M/M
€ 0.50
14
320291048
ref: 14
BRACKET,ENGINE,FR,R.H
€ 6.00
15
320291049
ref: 15
BRACKET,ENGINE,RR,L.H
€ 8.50
16
320291050
ref: 16
BRACKET,ENGINE,RR,R.H
€ 3.50
17
461F0800
ref: 17
WASHER-SPRING,8MM
€ 0.50
18
920011048
ref: 18
BOLT, HEX HEAD, 10X84
€ 4.50
19
920011049
ref: 19
BOLT, HEX HEAD, 10X72
€ 4.00
20
920011599
ref: 20
BOLT,FLANGED,10X60
€ 4.50
21
920011606
ref: 21
BOLT,FLANGED,10X180
€ 15.00
22
920011578
ref: 22
KZ550-C1
BOLT,FLANGED,8X40
€ 4.00
22
920011578
ref: 22
KZ550-C2
BOLT,FLANGED,8X40
€ 4.00
23
110G0859
ref: 23
KZ550-C1
BOLT,HEX HEAD,8X59
€ 3.50
23
920011581
ref: 23
KZ550-C2
BOLT,FLANGED,8X60
€ 3.50
24
920011397
ref: 24
KZ550-C1
BOLT,8X63
€ 1.50
24
920011397
ref: 24
KZ550-C2
BOLT,8X63
€ 1.50
25
920011609
ref: 25
BOLT,FLANGED,10X255
€ 14.00
26
92019021
ref: 26
NUT,LOCK,10M/M
€ 2.00
27
920271109
ref: 27
COLLAR,L=57.5M/M
€ 13.00
28
920271110
ref: 28
COLLAR,L=37
€ 9.00
29
110341781
ref: 29
KZ550-C1
BRACKET,ELECTRO BASE
€ 8.50
29-1
110341975
ref: 29-1
KZ550-C2
BRACKET,ELECTRO BASE
€ 21.00
30
114G0830
ref: 30
BOLT,HEX HEAD,8X30
€ 3.00
31
112G0620
ref: 31
BOLT 6X20
€ 1.00
32
461F0600
ref: 32
WASHER-SPRING,6MM
€ 0.50
33
350111051
ref: 33
STAY,L.H,MUFFLER
€ 73.50
34
350111052
ref: 34
STAY,R.H,MUFFLER
€ 50.00
35
92022125
ref: 35
WASHER,6.5X20X1.6
€ 1.00
36
92027165
ref: 36
COLLAR,6.5X8.5X7.5
€ 3.00
37
92075149
ref: 37
DAMPER
€ 6.00
38
530451001
ref: 38
KZ550-C1
HOOK ASSY,HELMET
€ 31.00
39
112G0612
ref: 39
KZ550-C1
BOLT-UPSET
€ 2.50
40
461F0600
ref: 40
KZ550-C1
WASHER-SPRING,6MM
€ 0.50
41
411B0600
ref: 41
KZ550-C1
WASHER-PLAIN,6MM
€ 0.50
42
920011095
ref: 42
BOLT,8X28
€ 4.50
43
110341985
ref: 43
KZ550-C2
BRACKET,CDI UNIT
€ 12.00
44
220B0612
ref: 44
KZ550-C2
SCREW-PAN HEAD,6X12
€ 1.00
45
461F0600
ref: 45
KZ550-C2
WASHER-SPRING,6MM
€ 0.50
46
110341926
ref: 46
KZ550-C2
BRACKET,HELMET LOCK
€ 14.00
47
112B0614
ref: 47
KZ550-C2
BOLT-UPSET 6X14
€ 2.50
48
461F0600
ref: 48
KZ550-C2
WASHER-SPRING,6MM
€ 0.50
49
411B0600
ref: 49
KZ550-C2
WASHER-PLAIN,6MM
€ 0.50
50
220B0510
ref: 50
KZ550-C2
SCREW-PAN-CROS,5X10
€ 0.50
51
461F0500
ref: 51
KZ550-C2
WASHER-SPRING,5MM
€ 0.50
52
270165038
ref: 52
KZ550-C2
LOCK-ASSY,HELMET
€ 67.50
53
140251295
ref: 53
KZ550-C2
COVER,ELECTRO
€ 11.50
54
220B0614
ref: 54
KZ550-C2
SCREW-PAN HEAD,6X14
€ 2.00
55
461F0600
ref: 55
KZ550-C2
WASHER-SPRING,6MM
€ 0.50
56
92022125
ref: 56
KZ550-C2
WASHER,6.5X20X1.6
€ 1.00
