FOOTRESTS ('82-'83 C3/C4)
KZ550C1 LTD 1980 USA CANADA

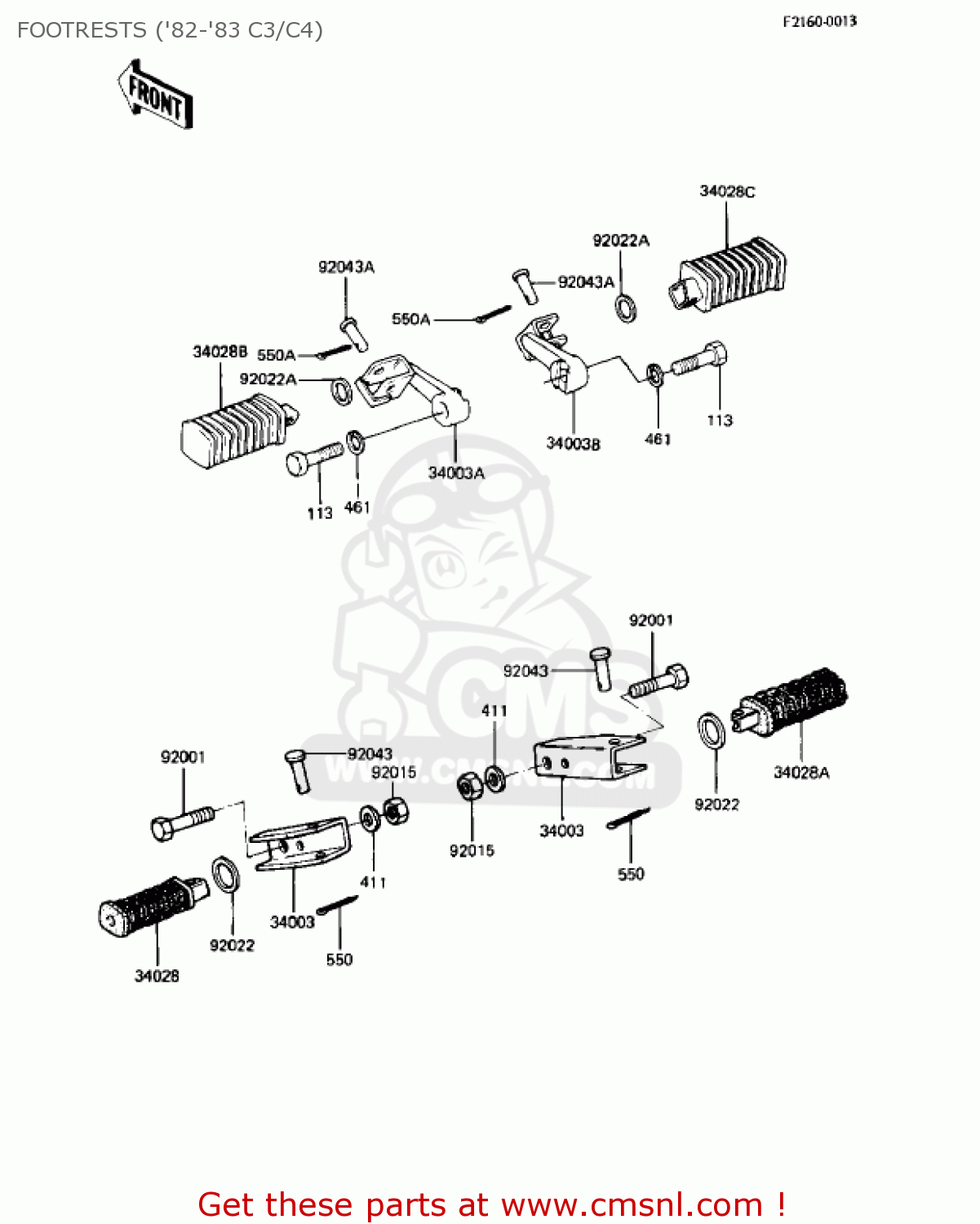

Footrests ('82-'83 c3/c4) diagram KZ550C1 LTD 1980 USA CANADA
FOOTRESTS ('82-'83 C3/C4) KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
34003
340031025
ref: 34003
HOLDER-STEP,RR
€ 18.00
34003A
340031115
ref: 34003A
HOLDER-STEP,FR,LH
€ 27.50
34003B
340031116
ref: 34003B
HOLDER-STEP,FR,RH
€ 48.50
34028
340281009
ref: 34028
STEP,RR,LH
€ 26.50
34028A
340281010
ref: 34028A
STEP,RR,RH
€ 49.50
34028B
340281018
ref: 34028B
STEP,FR FOOTREST
€ 41.50
34028C
340281018
ref: 34028C
STEP,FR FOOTREST
€ 41.50
92001
920011252
ref: 92001
BOLT,HEX HEAD,10X35
€ 3.50
92015
92019021
ref: 92015
NUT,LOCK,10M/M
€ 2.00
92022
92022181
ref: 92022
WASHER,22.5X30X2.6
€ 3.50
92022A
92022250
ref: 92022A
WASHER,PLAIN
€ 3.00
92043
920431464
ref: 92043
PIN
€ 5.50
92043A
92043115
ref: 92043A
PIN,FOOTREST BAR FIT
€ 6.50
113
113G1225A
ref: 113
BOLT,HEX HEAD,12X25
€ 4.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
461
461F1200
ref: 461
WASHER-SPRING,12MM
€ 0.50
550
550D2012
ref: 550
PIN,COTTER,2.0X12
€ 0.50
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
