SEAT ('82-'83 C3/C4)
KZ550C1 LTD 1980 USA CANADA

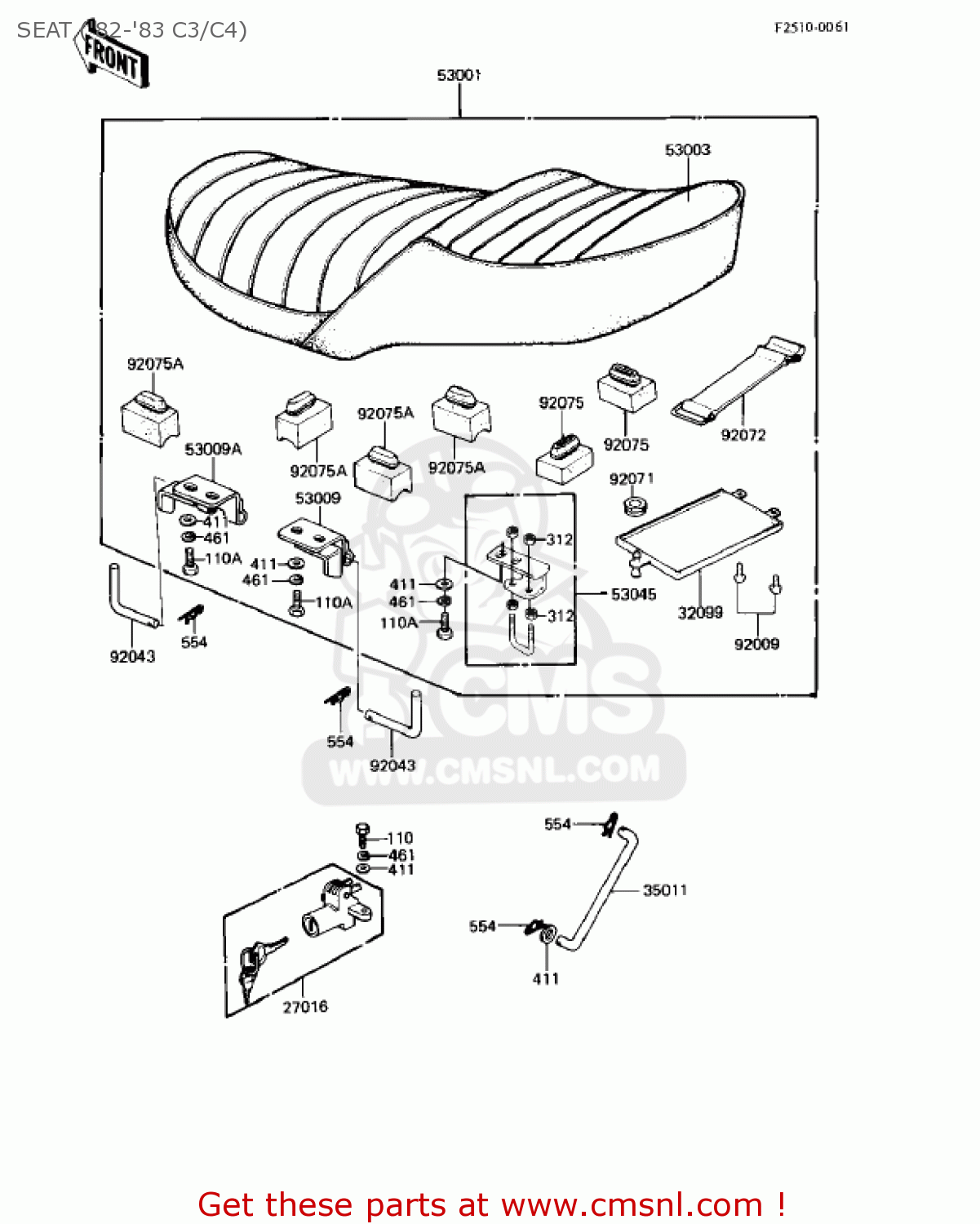

Seat ('82-'83 c3/c4) diagram KZ550C1 LTD 1980 USA CANADA
SEAT ('82-'83 C3/C4) KZ550C1 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
27016
270165010
ref: 27016
LOCK-ASSY,SEAT
€ 72.50
32099
32099011
ref: 32099
CASE,MANUAL
€ 11.50
35011
53054006
ref: 35011
STOPPER, SEAT
€ 4.00
53001
530011114
ref: 53001
SEAT-ASSY,DUAL
€ 441.00
53003
530031035
ref: 53003
SEAT,LEATHER
€ 128.00
53009
530091023
ref: 53009
HINGE,SEAT,FRONT
€ 7.50
53009A
530091024
ref: 53009A
HINGE,SEAT,REAR
€ 8.50
53045
530451002
ref: 53045
HOOK ASSY,SEAT
€ 8.50
92009
920091043
ref: 92009
SCREW,TAPPING,5X8
€ 3.00
92043
53011008
ref: 92043
PIN,SEAT PIVOT
€ 4.00
92071
92071056
ref: 92071
GROMMET
€ 2.50
92072
920721044
ref: 92072
BAND
€ 8.00
92075
92075099
ref: 92075
DAMPER RUBBER
€ 3.50
92075A
92075156
ref: 92075A
DAMPER,SEAT
€ 6.50
110
112B0614
ref: 110
BOLT-UPSET 6X14
€ 2.50
110A
112G0616
ref: 110A
BOLT UPSET,6X16
€ 1.00
312
312B0600
ref: 312
NUT,6MM
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
554
554A0500
ref: 554
PIN-SNAP
€ 1.50
