TURN SIGNALS ('78 C1/C1A)

KZ1000C4 POLICE 1000 1981 USA CANADA

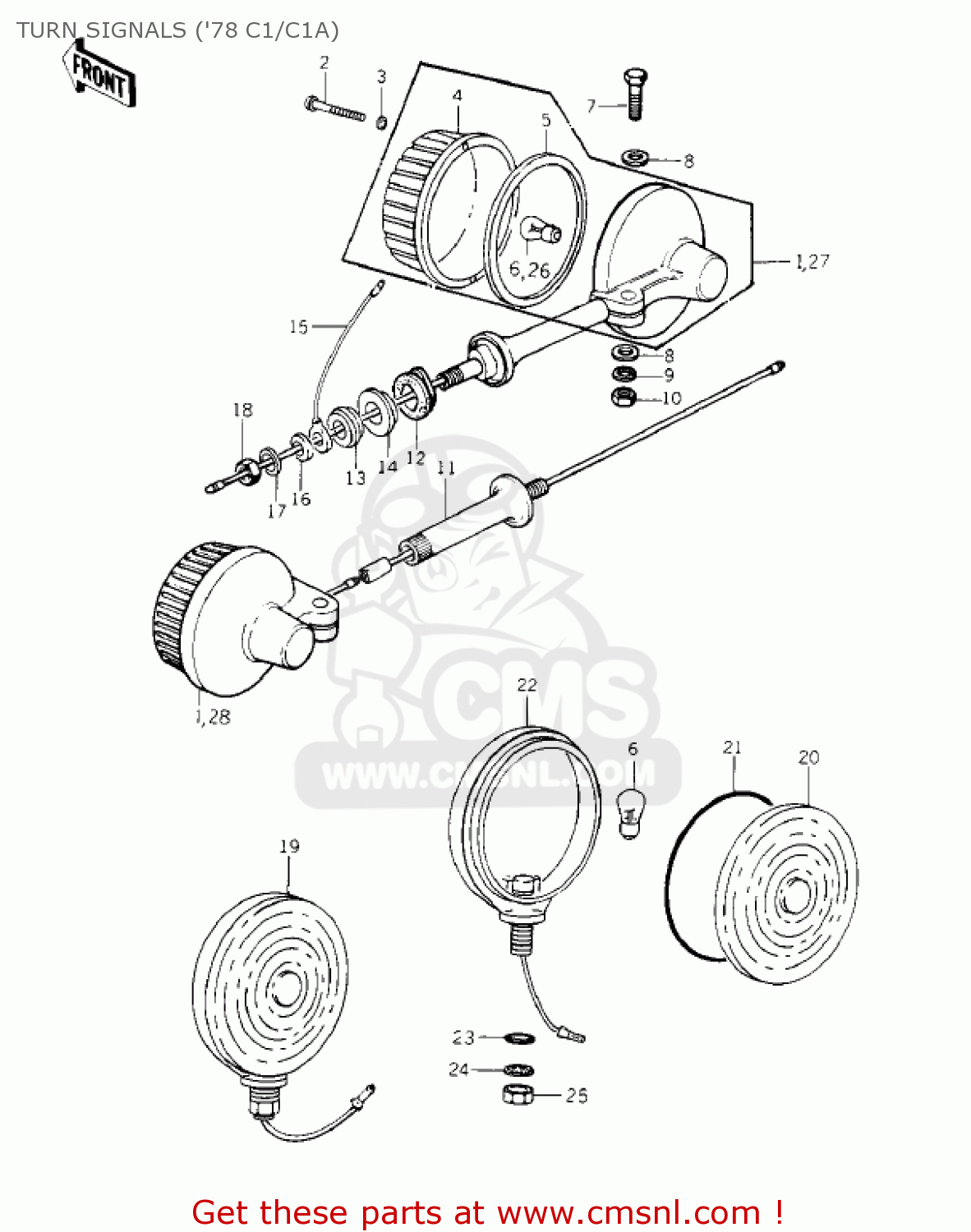

Turn signals ('78 c1/c1a) diagram KZ1000C4 POLICE 1000 1981 USA CANADA

TURN SIGNALS ('78 C1/C1A) KZ1000C4 POLICE 1000 1981 USA CANADA

TURN SIGNALS ('78 C1/C1A) KZ1000C4 POLICE 1000 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

23040034
ref: 1
KZ1000-C1

LAMP-SIGNAL

€ 100.00

2

220E0435A
ref: 2

SCREW-PAN HEAD,4X35

€ 4.50

3

23058002
ref: 3

WASHER,PLAIN,4MM

€ 2.00

4

230481024
ref: 4

LENS-SIGNAL LAMP,6.14

€ 12.50

5

23050002
ref: 5

GASKET,TURN SIGNAL LA (NAS)

€ 3.00

6

92069055
ref: 6

BULB 12V 32CP

€ 4.50

7

112G0630
ref: 7

BOLT-UPSET

€ 1.00

8

411B0600
ref: 8

WASHER-PLAIN,6MM

€ 0.50

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

311B0600
ref: 10

NUT,6MM

€ 0.50

11

23078001
ref: 11

BRACKET-SIGNAL LAMP

€ 65.50

11

230511006
ref: 11
KZ1000-C1A

BRACKET,TURN SIGNAL

€ 34.00

12

920751014
ref: 12

DAMPER,TURN SIGNAL FI

€ 6.50

13

920271025
ref: 13

COLLAR, TURN SIG FITT

€ 5.50

14

92075158
ref: 14

DAMPER

€ 3.50

15

26011095
ref: 15

WIRE-LEAD,L=285

€ 8.00

16

411B1000
ref: 16

WASHER-PLAIN,10MM

€ 0.50

17

461F1000
ref: 17

WASHER-SPRING,10MM

€ 0.50

18

315B1000
ref: 18

NUT,10MM

€ 0.50

19

23040055
ref: 19
INCLUDES DAMPER, NUT

LAMP ASSY, TURN, REAR

€ 100.50

20

23048018
ref: 20
STD, AMBER

LENS,REAR TURN SIGNAL

€ 13.00

21

23048019
ref: 21
OPT, RED

LENS,RED REAR TS OPT

€ 11.00

21

23048020
ref: 21
OPT, BLUE

REAR TURN SIGNAL LENS,BLUE,OPTIONAL

€ 28.50

21

92055103
ref: 21

O-RING

€ 7.50

22

23040055
ref: 22

LAMP ASSY, TURN, REAR

€ 100.50

23

92065037
ref: 23

OIL PIPE BANJO GASKET

€ 8.00

24

464G1200
ref: 24

WASHER-LOCK,12MM

€ 0.50

25

340BA1600
ref: 25

NUT

€ 1.00

26

92069060
ref: 26
KZ1000-C1A

BULB.12V 23/8W

€ 5.00

27

230401005
ref: 27
KZ1000-C1A

LAMP-SIGNAL,RH

€ 52.00

28

230401006
ref: 28
KZ1000-C1A

TURN SIGNAL LAMP ASSEMBLY,LH

€ 52.00
