Genuine KZ Kawasaki Parts delivered quickly!


OIL PUMP/OIL FILTER/OIL PAN ('78

KZ1000C4 POLICE 1000 1981 USA CANADA

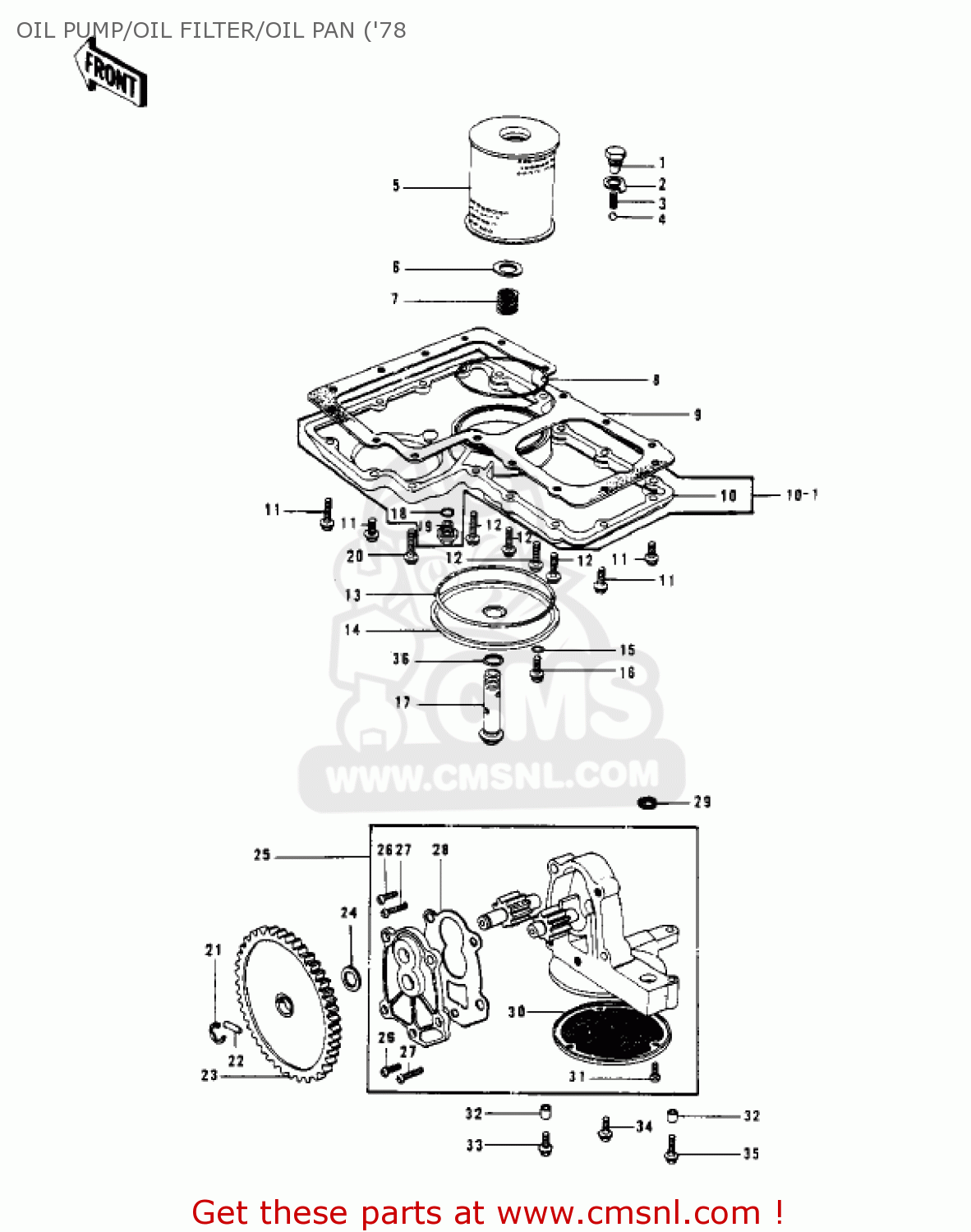

Oil pump/oil filter/oil pan ('78 diagram KZ1000C4 POLICE 1000 1981 USA CANADA

OIL PUMP/OIL FILTER/OIL PAN ('78 KZ1000C4 POLICE 1000 1981 USA CANADA
OIL PUMP/OIL FILTER/OIL PAN ('78 KZ1000C4 POLICE 1000 1981 USA CANADA
OIL PUMP/OIL FILTER/OIL PAN ('78 KZ1000C4 POLICE 1000 1981 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
92003095
ref: 1
BOLT
92003095
€ 10.50
2
92024048
ref: 2
WASHER,LOCK
92024048
€ 2.00
3
92081109
ref: 3
SPRING
92081109
€ 7.50
4
600A1200
ref: 4
BALL-STEEL,3/8
600A1200
€ 0.50
5
16099002
ref: 5
ELEMENT-OIL FILTER
16099002
€ 13.00
6
920221012
ref: 6
WASHER,20.5X30X1
920221012
€ 3.00
7
920811018
ref: 7
SPRING,OIL FILTER
920811018
€ 3.00
8
92055052
ref: 8
RING-O,91.6X3.4
92055052
€ 6.00
9
110601074
ref: 9
GASKET,OIL PAN (NAS)
110601074
€ 37.00
10
490345020
ref: 10
NO LONGER AVAILABLE
PAN-OIL
490345020
€ 165.00
10-1
490345020
ref: 10-1
PAN-OIL
490345020
€ 165.00
11
130G0625
ref: 11
BOLT,FLANGED,6X25
130G0625
€ 0.50
12
92003159
ref: 12
BOLT,HEX HEAD,6X34
92003159
€ 2.50
13
671B25105
ref: 13
O-ring,105mm
671B25105
€ 19.50
14
140251112
ref: 14
COVER,OIL FILTER
140251112
€ 19.50
15
670B1508
ref: 15
O RING,8MM
670B1508
€ 1.00
16
92066024
ref: 16
PLUG,30X8
92066024
€ 8.00
17
920011074
ref: 17
BOLT,OIL FILTER
920011074
€ 43.00
18
670B2022
ref: 18
O RING,22MM
670B2022
€ 3.00
19
920011183
ref: 19
BOLT,OIL DRAIN
920011183
€ 37.50
20
130G0650
ref: 20
BOLT-FLANGED,6X50
130G0650
€ 1.00
21
482K7000
ref: 21
CIRCLIP-TYPE-E,7MM
482K7000
€ 2.50
22
551A0314
ref: 22
PIN,DOWEL,3X14
551A0314
€ 0.50
23
16085019
ref: 23
GEAR-OIL PUMP 49T
16085019
€ 70.00
24
92026080
ref: 24
WASHER-LOCK,16MM
€ 3.00
25
160825001
ref: 25
PUMP-ASSY-OIL
€ 585.00
26
220B0618
ref: 26
SCREW-PAN HEAD,6X18
220B0618
€ 2.50
27
220B0628
ref: 27
SCREW-PAN HEAD,6X28
220B0628
€ 2.50
28
110091029
ref: 28
GASKET,OIL PUMP (NAS)
110091029
€ 6.00
29
92055048
ref: 29
RING-O,OD=18
92055048
€ 3.00
30
16111004
ref: 30
FILTER,OIL PUMP
16111004
€ 23.50
31
220B0508
ref: 31
SCREW-PAN-CROS,5X8
220B0508
€ 0.50
32
920431302
ref: 32
PIN,DOWEL,8X10
920431302
€ 1.00
33
92001164
ref: 33
BOLT,6X35
92001164
€ 3.50
34
920011352
ref: 34
BOLT,FLANGED,6X22
920011352
€ 2.50
35
92001165
ref: 35
BOLT,HEX HEAD,6X45
92001165
€ 3.00
36
670B2022
ref: 36
O RING,22MM
670B2022
€ 3.00
