BRAKE PEDAL ('79-'81 C2/C3/C4)

KZ1000C4 POLICE 1000 1981 USA CANADA

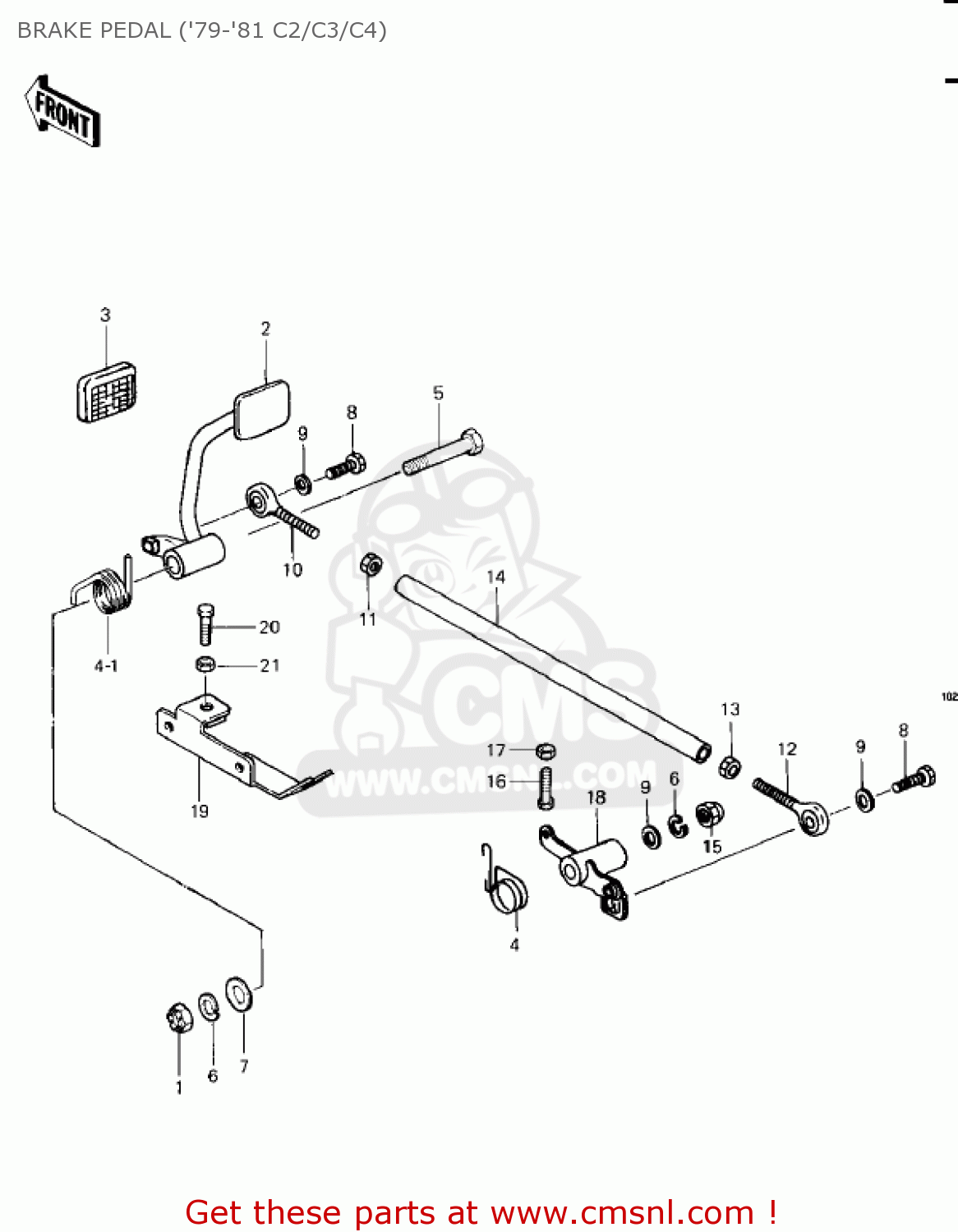

Brake pedal ('79-'81 c2/c3/c4) diagram KZ1000C4 POLICE 1000 1981 USA CANADA

BRAKE PEDAL ('79-'81 C2/C3/C4) KZ1000C4 POLICE 1000 1981 USA CANADA

BRAKE PEDAL ('79-'81 C2/C3/C4) KZ1000C4 POLICE 1000 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

321B0800
ref: 1

NUT-CASTLE,8MM

€ 3.00

2

430011006
ref: 2

BRAKE PEDAL

€ 99.50

2

430014005
ref: 2

PEDAL, BRAKE

€ 180.50

3

43091002
ref: 3

RUBBER BRAKE PEDAL

€ 20.00

4

43005037
ref: 4

SPRING, BRAKE PEDAL

€ 8.50

4-1

920814006
ref: 4-1

SPRING, BRAKE RETURN

€ 2.50

5

115B08105
ref: 5

BOLT-SMALL-UPSET,8X10

€ 4.00

6

461F0800
ref: 6

WASHER-SPRING,8MM

€ 0.50

6

461F0800
ref: 6

WASHER-SPRING,8MM

€ 0.50

7

410B0800
ref: 7

WASHER-PLAIN-SMALL,8M

€ 0.50

8

115G0825
ref: 8

BOLT-HEX,HEAD,8X25

€ 3.00

9

920221561
ref: 9

WASHER,8.5X20X1.6

€ 2.50

10

391124002
ref: 10

UNAVAILABLE IN PRICE BOOK

€ 0.00

11

920151006
ref: 11

NUT,LH THREAD

€ 0.50

12

391121001
ref: 12

TIE ROD END,RH,MALE

€ 28.50

13

920151005
ref: 13

NUT,RH THREAD

€ 0.50

14

391111001
ref: 14

BRAKE PEDAL CONTROL ROD

€ 23.50

15

92019013
ref: 15

NUT,CAP,LOCK,8MM

€ 5.50

16

112G0620
ref: 16

BOLT 6X20

€ 1.00

17

311B0600
ref: 17

NUT,6MM

€ 0.50

18

430041004
ref: 18

REAR BRAKE SHAFT

€ 23.00

19

110344023
ref: 19

REAR BRAKE BRACKET

€ 19.00

20

112G0640
ref: 20

BOLT-UPSET,6X40

€ 2.50

21

311B0600
ref: 21

NUT,6MM

€ 0.50
