ENGINE COVERS ('78 C1/C1A)

KZ1000C4 POLICE 1000 1981 USA CANADA

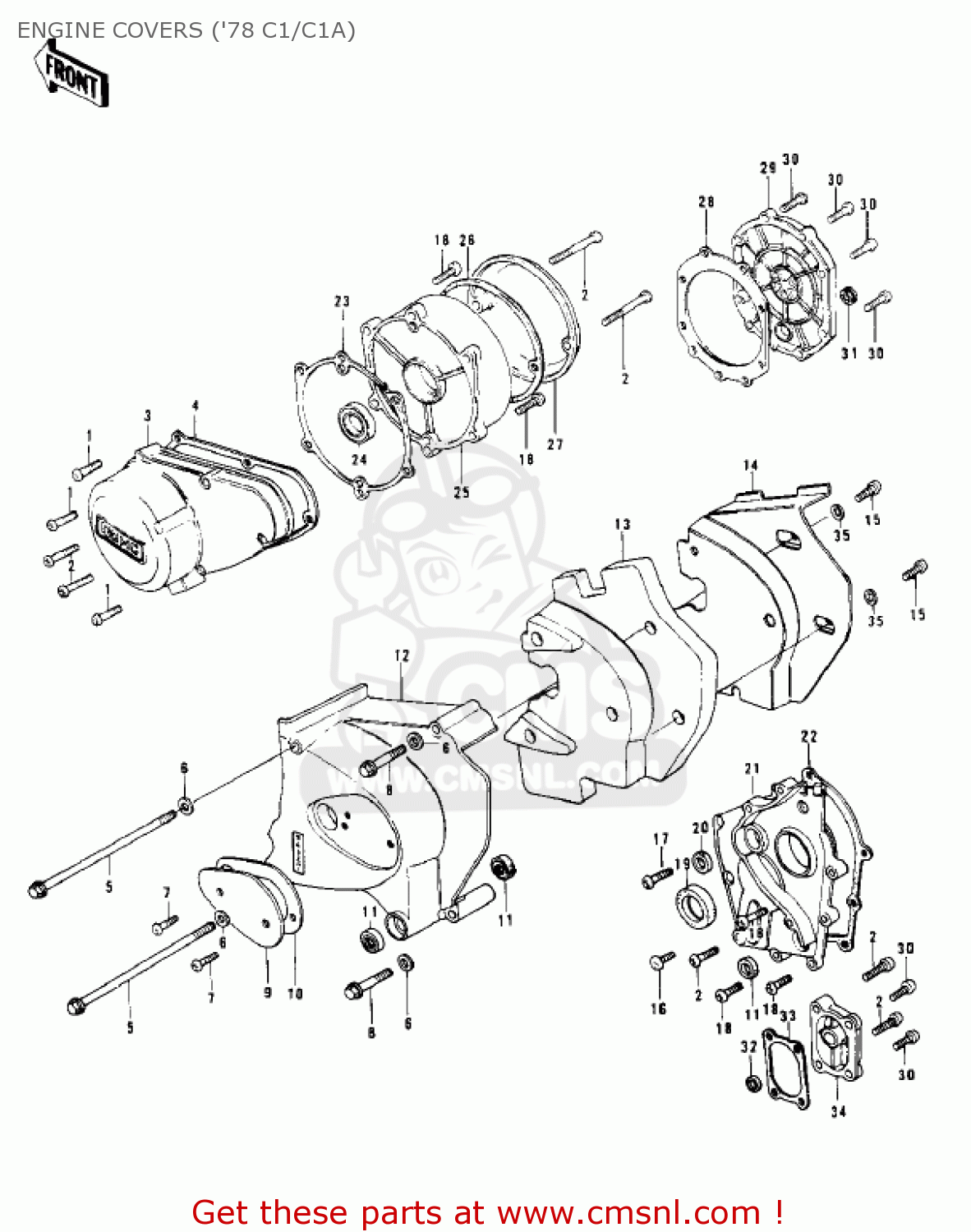

Engine covers ('78 c1/c1a) diagram KZ1000C4 POLICE 1000 1981 USA CANADA

ENGINE COVERS ('78 C1/C1A) KZ1000C4 POLICE 1000 1981 USA CANADA

ENGINE COVERS ('78 C1/C1A) KZ1000C4 POLICE 1000 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

220B0630
ref: 1

SCREW-PAN HEAD,6X30

€ 2.50

2

220B0640
ref: 2

SCREW-PAN HEAD,6X40

€ 2.00

3

1403110080
ref: 3
BUFF FINISH

COVER,L.H ENGINE,BUFF

€ 226.00

4

110601075
ref: 4

GASKET,GENERATOR COVE (NAS)

€ 15.00

5

112G06125
ref: 5

BOLT-UPSET,6X125

€ 3.50

6

410B0600
ref: 6

WASHER-PLAIN-SMALL,6M

€ 0.50

7

220B0616
ref: 7

SCREW-PAN HEAD,6X16

€ 2.50

8

110G0670
ref: 8

BOLT,HEX HEAD,6X70

€ 3.00

9

14026012
ref: 9

COVER-OIL PUMP

€ 13.00

10

14045015
ref: 10

GASKET,CHAIN COVER (MCA)

€ 7.00

11

92049004
ref: 11

OIL SEAL SB12205

€ 6.00

12

1402603980
ref: 12
BUFF FINISH

COVER,FRONT CHAIN,BUF

€ 143.00

13

92075314
ref: 13

DAMPER,SOUND

€ 49.00

14

14024012
ref: 14

COVER, ARRESTER SOUND

€ 25.00

15

220B0610
ref: 15

SCREW-PAN HEAD,6X10

€ 2.00

16

220B0660
ref: 16

SCREW-PAN HEAD,6X60

€ 2.50

17

220B0628
ref: 17

SCREW-PAN HEAD,6X28

€ 2.50

18

220B0622
ref: 18

SCREW-PAN HEAD,6X22

€ 2.50

19

92050024
ref: 19

OIL SEAL SC325210

€ 5.00

20

92050048
ref: 20

OIL SEAL,TC7187

€ 15.00

21

140251106
ref: 21

COVER,TRANSMISSION

€ 118.00

22

14058004
ref: 22

GASKET-MISSION COVER (MCA)

€ 22.00

23

110601071
ref: 23

GASKET,RH ENGINE COVE (NAS)

€ 10.50

24

92050047
ref: 24

OIL SEAL,S25407R

€ 19.50

25

14032083
ref: 25

COVER-R.H ENGINE

€ 337.50

26

14050006
ref: 26

GASKET-POINT CAP (MCA)

€ 16.50

27

1402702380
ref: 27

CAP,CONTACT BREAKER

€ 133.50

28

14046024
ref: 28

GASKET-CLUTCH COVER (MCA)

€ 30.50

29

14032121
ref: 29

COVER-CLUTCH

€ 133.50

30

220B0625
ref: 30

SCREW-PAN HEAD,6X25

€ 1.50

31

52015004
ref: 31

GAUGE,OIL LEVEL

€ 27.00

32

920491048
ref: 32

OIL SEAL,SC22325

€ 6.00

33

14046025
ref: 33

CASKET-KICK COVER (MCA)

€ 6.00

34

140320752H
ref: 34
BARREL

COVER,KICK SHAFT,BARL

€ 28.50

35

411B0600
ref: 35

WASHER-PLAIN,6MM

€ 0.50
