TAILIGHT ('79-'81 C2/C3/C4)

KZ1000C4 POLICE 1000 1981 USA CANADA

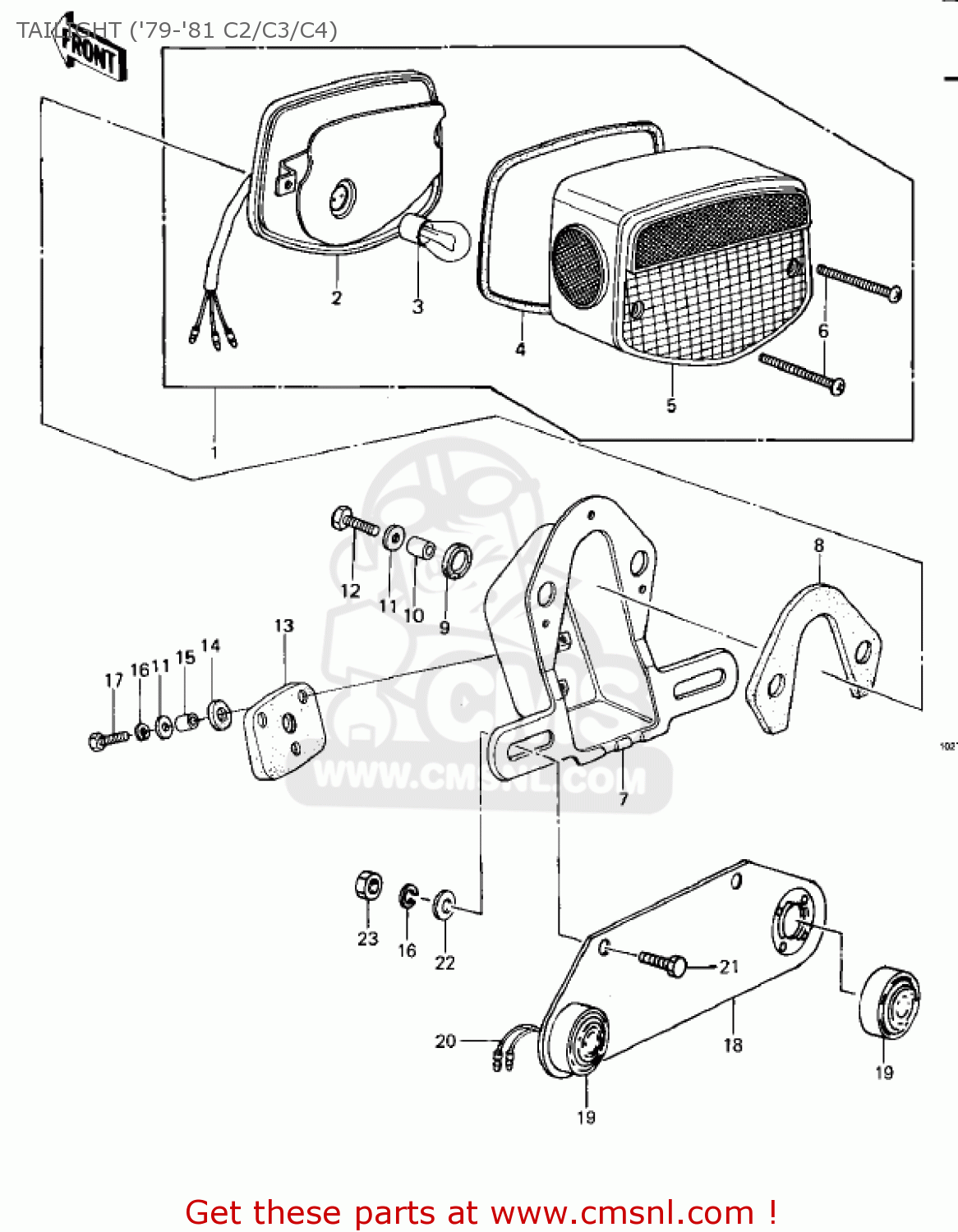

Tailight ('79-'81 c2/c3/c4) diagram KZ1000C4 POLICE 1000 1981 USA CANADA

TAILIGHT ('79-'81 C2/C3/C4) KZ1000C4 POLICE 1000 1981 USA CANADA

TAILIGHT ('79-'81 C2/C3/C4) KZ1000C4 POLICE 1000 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

23025064
ref: 1

LAMP-TAIL,220-40781MA

€ 139.00

2

23027041
ref: 2

BODY-COMP-TAIL LAMP

€ 96.00

3

92069059
ref: 3

BULB,12V 32/3CP

€ 5.50

4

23028021
ref: 4

GASKET,TAIL LAMP LENS (NAS)

€ 8.00

5

23026034
ref: 5

LENS,TAIL LAMP

€ 64.50

6

220R0460
ref: 6

SCREW-PAN-CROS

€ 3.00

7

26036046
ref: 7

UNAVAILABLE IN PRICE BOOK

€ 0.00

8

23066023
ref: 8

DAMPER

€ 10.50

9

23066020
ref: 9

DAMPER

€ 10.00

10

92027129
ref: 10

COLLAR,6.8X10X8.5

€ 3.00

11

92022125
ref: 11

WASHER,6.5X20X1.6

€ 1.00

12

112B0622
ref: 12

BOLT, 6X22

€ 2.50

13

35039004
ref: 13

DAMPER,TAIL LAMP

€ 12.00

14

92075121
ref: 14

DAMPER,FENDER

€ 2.50

15

92027156
ref: 15

COLLAR-BATTERY CASE

€ 3.00

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

112G0625
ref: 17

BOLT-UPSET,6X25

€ 4.00

18

230621002
ref: 18

BRACKET, LICENSE PLAT

€ 56.50

19

23065003
ref: 19
STD

TAIL LIGHT,ID,BLUE

€ 16.50

19

23065004
ref: 19

TAIL LIGHT,ID, RED

€ 16.00

19

26065005
ref: 19

UNAVAILABLE IN PRICE BOOK

€ 0.00

20

260014001
ref: 20

CONNECT ID LAMP WIRE

€ 6.00

21

112G0620
ref: 21

BOLT 6X20

€ 1.00

22

92022024
ref: 22

WASHER,7X16X1.2

€ 2.50

23

311B0600
ref: 23

NUT,6MM

€ 0.50
