CARRIER (KZ1000-C2)

KZ1000C4 POLICE 1000 1981 USA CANADA

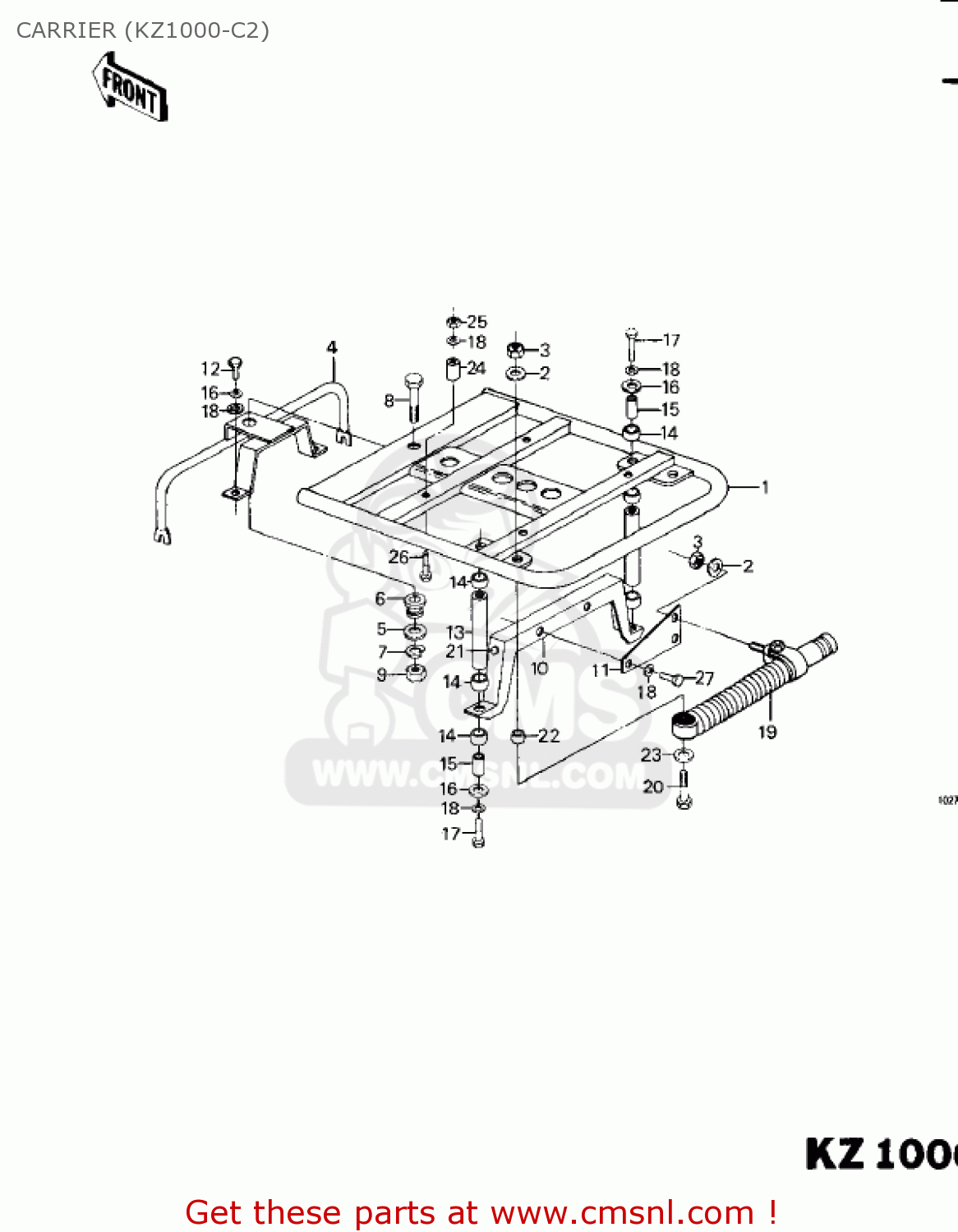

Carrier (kz1000-c2) diagram KZ1000C4 POLICE 1000 1981 USA CANADA

CARRIER (KZ1000-C2) KZ1000C4 POLICE 1000 1981 USA CANADA

CARRIER (KZ1000-C2) KZ1000C4 POLICE 1000 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

530294001
ref: 1

CARRIER

€ 119.00

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

311B0800
ref: 3

NUT,8MM

€ 0.50

4

230624001
ref: 4

BRACKET

€ 27.50

5

920224002
ref: 5

WASHER

€ 10.00

6

920754006
ref: 6

DAMPER

€ 18.00

7

461F1200
ref: 7

WASHER-SPRING,12MM

€ 0.50

8

920011262
ref: 8

BOLT,HEX HEAD,12X55

€ 6.00

9

314B1200
ref: 9

NUT-HEX-FINE

€ 1.00

10

110344016
ref: 10

BRACKET

€ 30.00

11

320374004
ref: 11

BRACKET

€ 4.00

12

112G0616
ref: 12

BOLT UPSET,6X16

€ 1.00

13

210834001
ref: 13

ARM

€ 5.50

14

92075031
ref: 14

DAMPER RUBB-SIDE STND

€ 3.00

15

92027149
ref: 15

COLLAR-SILENSER

€ 4.00

16

92022125
ref: 16

WASHER,6.5X20X1.6

€ 1.00

17

110G0650
ref: 17

BOLT,HEX HEAD,6X50

€ 1.00

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

450144005
ref: 19

SHOCK ABSORBER,REAR,CARRI

€ 95.50

20

115G0845
ref: 20

BOLT-SMALL-UPSET

€ 3.50

21

92075155
ref: 21

DAMPER

€ 1.50

22

41069002
ref: 22

COLLAR-FRONT HUB R.H

€ 4.00

23

410B0800
ref: 23

WASHER-PLAIN-SMALL,8M

€ 0.50

24

920271027
ref: 24

RADIO MOUNT COLLAR

€ 0.00

25

311G0600
ref: 25

NUT,6M/M

€ 0.50

26

112G0635
ref: 26

BOLT-UPSET,6X35

€ 2.50

27

112G0620
ref: 27

BOLT 6X20

€ 1.00
