STARTER MOTOR/STARTER CLUTCH ('7

KZ1000C4 POLICE 1000 1981 USA CANADA

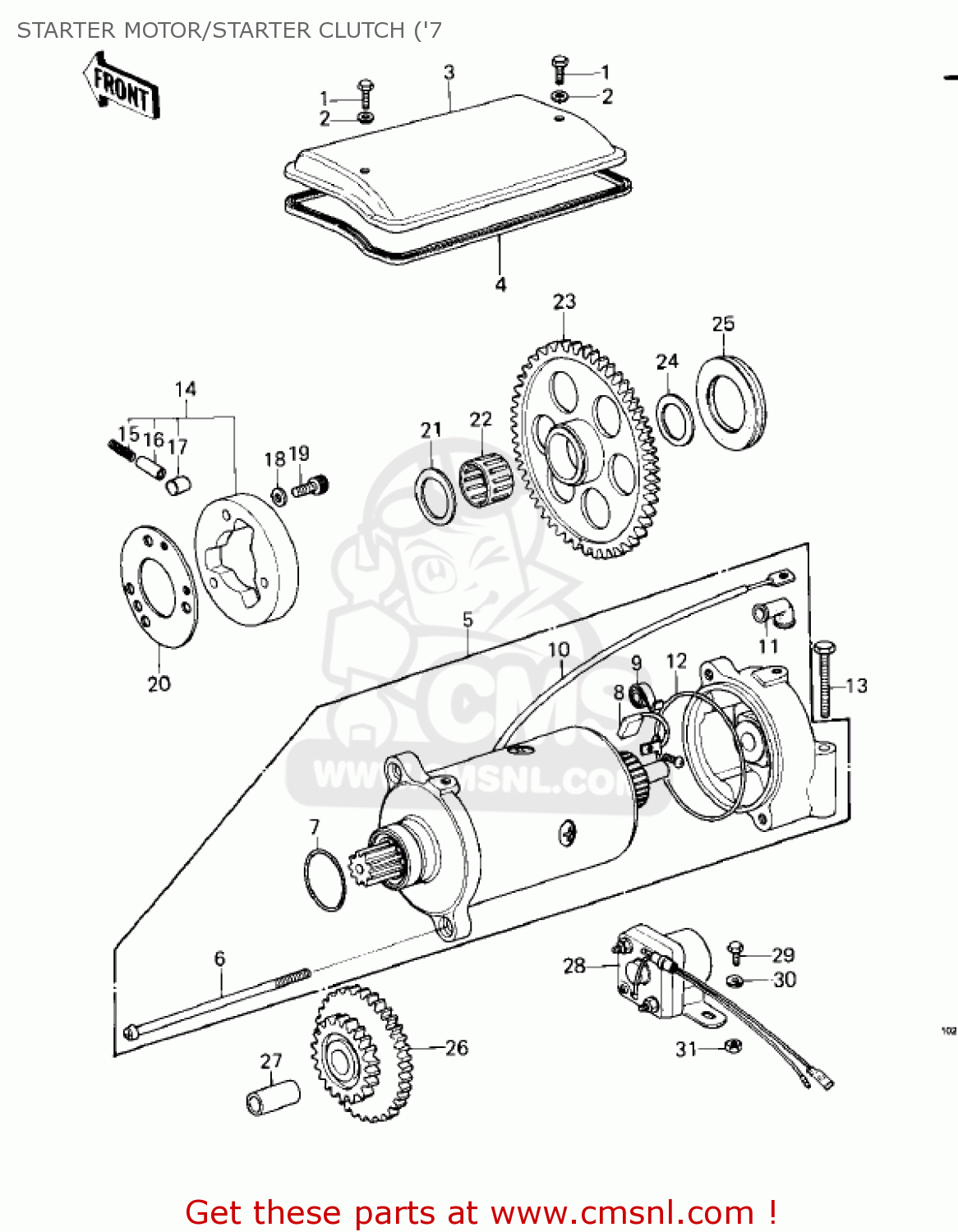

Starter motor/starter clutch ('7 diagram KZ1000C4 POLICE 1000 1981 USA CANADA

STARTER MOTOR/STARTER CLUTCH ('7 KZ1000C4 POLICE 1000 1981 USA CANADA

STARTER MOTOR/STARTER CLUTCH ('7 KZ1000C4 POLICE 1000 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

110R0610
ref: 1

BOLT,6X10

€ 5.00

2

410D0600
ref: 2

WASHER-PLAIN-SMALL,6M

€ 0.50

3

21165001
ref: 3

COVER,STARTER MOTOR

€ 30.00

4

21166001
ref: 4

GASKET,STARTER COVER (NAS)

€ 23.50

5

211631019
ref: 5

STARTER-ELECTRIC

€ 666.00

5

211631006
ref: 5

MOTOR ASSY,STARTING

€ 480.50

6

21015005
ref: 6

SCREW-PAN HEAD,6X110

€ 5.50

7

21027004
ref: 7

ORING-STARTING MOTR

€ 6.50

8

21039003
ref: 8

BRUSH,CARBON

€ 23.50

9

21040003
ref: 9

SPRING-BRUSH

€ 4.50

10

26010055
ref: 10

WIRE, STARTER MOTOR

€ 22.00

10

260111036
ref: 10

WIRE,STARTING MOT LEA

€ 29.00

11

21017017
ref: 11

GROMMET-CORD

€ 6.50

12

21027003
ref: 12

RING-O,STARTER MOTOR

€ 6.00

13

920011456
ref: 13

BOLT,6X55

€ 3.00

14

131931006
ref: 14

CLUTCH-ASSY-ONEWAY

€ 150.50

15

92081110
ref: 15

SPRING

€ 3.00

16

92043087
ref: 16

PIN

€ 8.00

17

92122001
ref: 17

ROLLER,15X14.4

€ 7.50

18

920221108
ref: 18

WASHER,8.5X13.5X2

€ 2.50

19

120P0816
ref: 19

BOLT-SOCKET

€ 2.50

20

92026112
ref: 20

SPACER,45X79.5X0.5 (NAS)

€ 7.50

21

920261031
ref: 21

SPACER,(I=25,O=38)

€ 7.00

22

920461022
ref: 22

BEARING-NEEDLE,K25302

€ 24.50

23

160851012
ref: 23

GEAR,STARTER CLUTCH

€ 180.50

24

920261033
ref: 24

SPACER,25X34X2.0

€ 4.50

25

920751129
ref: 25

DAMPER,T=6.3

€ 18.00

25

920751130
ref: 25

DAMPER,T=7.3

€ 15.00

25

920751131
ref: 25

DAMPER,T=8.3

€ 13.50

26

21167002
ref: 26

GEAR-STARTING MOTOR

€ 89.00

27

13002007
ref: 27

PIN

€ 13.00

28

270101023
ref: 28

SWITCH ASSY,MAGNETIC

€ 135.50

29

112G0616
ref: 29

BOLT UPSET,6X16

€ 1.00

29

112G0612
ref: 29

BOLT-UPSET

€ 2.50

30

461F0600
ref: 30

WASHER-SPRING,6MM

€ 0.50

31

92017014
ref: 31

NUT,LOCK,6MM

€ 4.00
