CAMSHAFTS/VALVES ('79-'81 C2/C3/

KZ1000C4 POLICE 1000 1981 USA CANADA

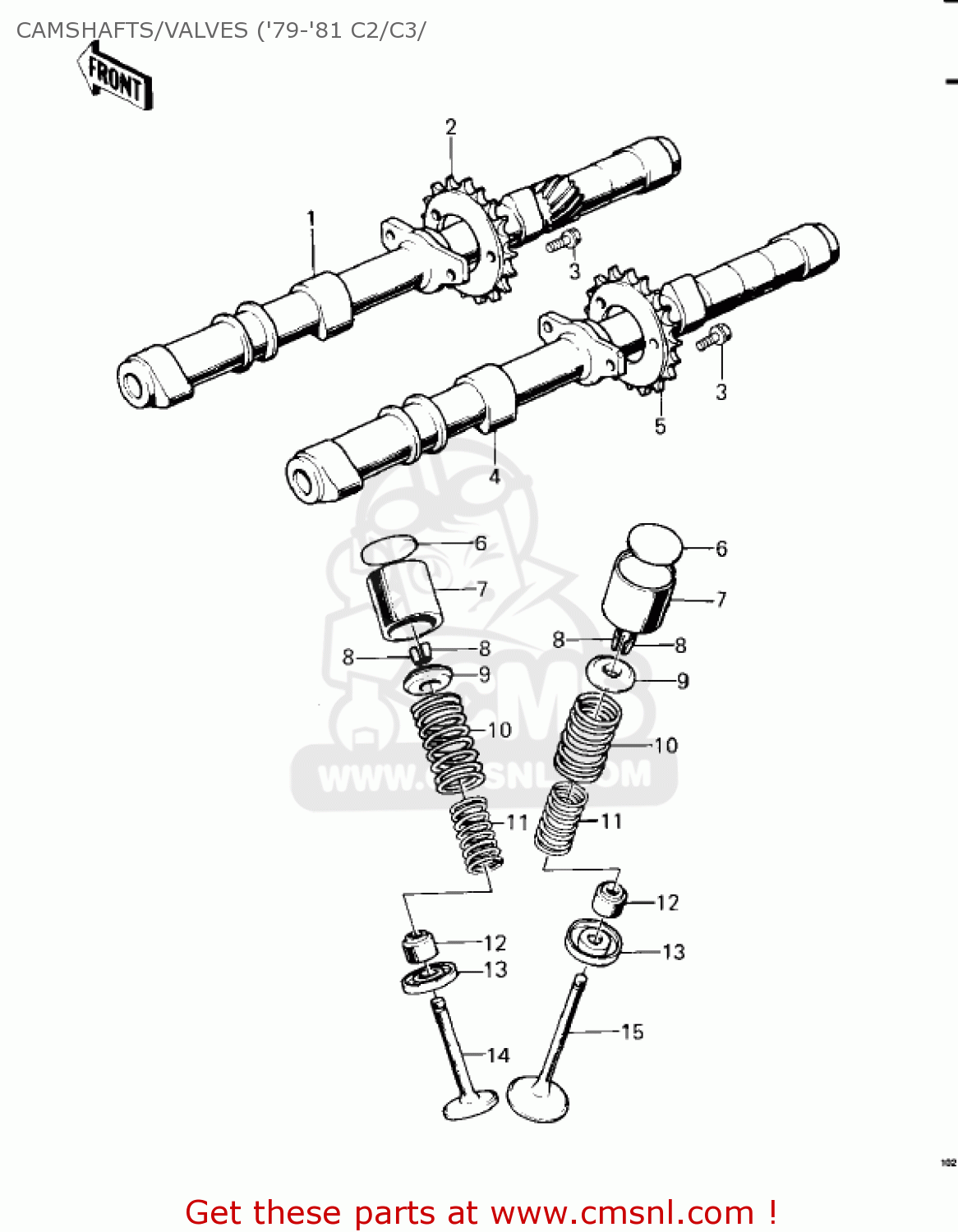

Camshafts/valves ('79-'81 c2/c3/ diagram KZ1000C4 POLICE 1000 1981 USA CANADA

CAMSHAFTS/VALVES ('79-'81 C2/C3/ KZ1000C4 POLICE 1000 1981 USA CANADA

CAMSHAFTS/VALVES ('79-'81 C2/C3/ KZ1000C4 POLICE 1000 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

12044015
ref: 1

CAMSHAFT-VALVE,EXHAUS

€ 493.00

2

12046002
ref: 2

SPROCKET-CAM SHAFT EX

€ 47.50

2

120461018
ref: 2

SPROCKET,EXHUT CAM SF

€ 73.50

3

92003208
ref: 3

BOLT,SPROCKET FITTING

€ 2.50

4

12044014
ref: 4

CAM SHAFT,INLET

€ 500.50

5

12046001
ref: 5

SPROCKET-CAM SHAFT IN

€ 73.50

5

120461017
ref: 5

SPROCKET,INLET CAM SF

€ 64.00

6

12037001
ref: 6

SHIM,T=2.00

€ 13.00

6

12037002
ref: 6

SHIM,T=2.05

€ 13.00

6

12037003
ref: 6

SHIM,T=2.10

€ 13.00

6

12037004
ref: 6

SHIM,T=2.15

€ 13.00

6

12037005
ref: 6

SHIM,T=2.20

€ 13.00

6

12037006
ref: 6

SHIM,T=2.25

€ 13.00

6

12037007
ref: 6

SHIM,T=2.30

€ 13.00

6

12037008
ref: 6

SHIM,T=2.35

€ 13.00

6

12037009
ref: 6

SHIM,T=2.40

€ 13.00

6

12037010
ref: 6

SHIM,T=2.45

€ 13.00

6

12037011
ref: 6

SHIM,T=2.50

€ 13.00

6

12037012
ref: 6

SHIM,T=2.55

€ 13.00

6

12037013
ref: 6

SHIM,T=2.60

€ 13.00

6

12037014
ref: 6

SHIM,T=2.65

€ 13.00

6

12037015
ref: 6

SHIM,T=2.70

€ 13.00

6

12037016
ref: 6

SHIM,T=2.75

€ 13.00

6

12037017
ref: 6

SHIM,T=2.80

€ 13.00

6

12037018
ref: 6

SHIM,T=2.85

€ 13.00

6

12037019
ref: 6

SHIM,T=2.90

€ 13.00

6

12037020
ref: 6

SHIM,T=2.95

€ 13.00

6

12037021
ref: 6

SHIM,T=3.00

€ 13.00

6

12037022
ref: 6

SHIM,T=3.05

€ 13.00

6

12037023
ref: 6

SHIM,T=3.10

€ 13.00

6

12037024
ref: 6

SHIM,T=3.15

€ 13.00

6

12037025
ref: 6

SHIM,T=3.20

€ 13.00

7

12032005
ref: 7

TAPPET

€ 52.50

8

12011004
ref: 8

COLLET,RETAINER

€ 3.50

9

12009005
ref: 9

RETAINER-VALVE SPRING

€ 9.00

10

12007012
ref: 10

SPRING1OUTER VALVE

€ 15.00

11

12007011
ref: 11

SPRING-INNER VALVE

€ 15.00

12

92049016
ref: 12

OIL SEAL,RV37129.5

€ 13.50

13

160071024
ref: 13

SEAT-SPRING,VALVE

€ 4.00

14

120051009
ref: 14

VALVE-EXHAUST

€ 101.50

15

120041010
ref: 15

VALVE-INTAKE

€ 73.50
