CHASSIS ELECTRICAL EQUIPMENT ('7

KZ1000C4 POLICE 1000 1981 USA CANADA

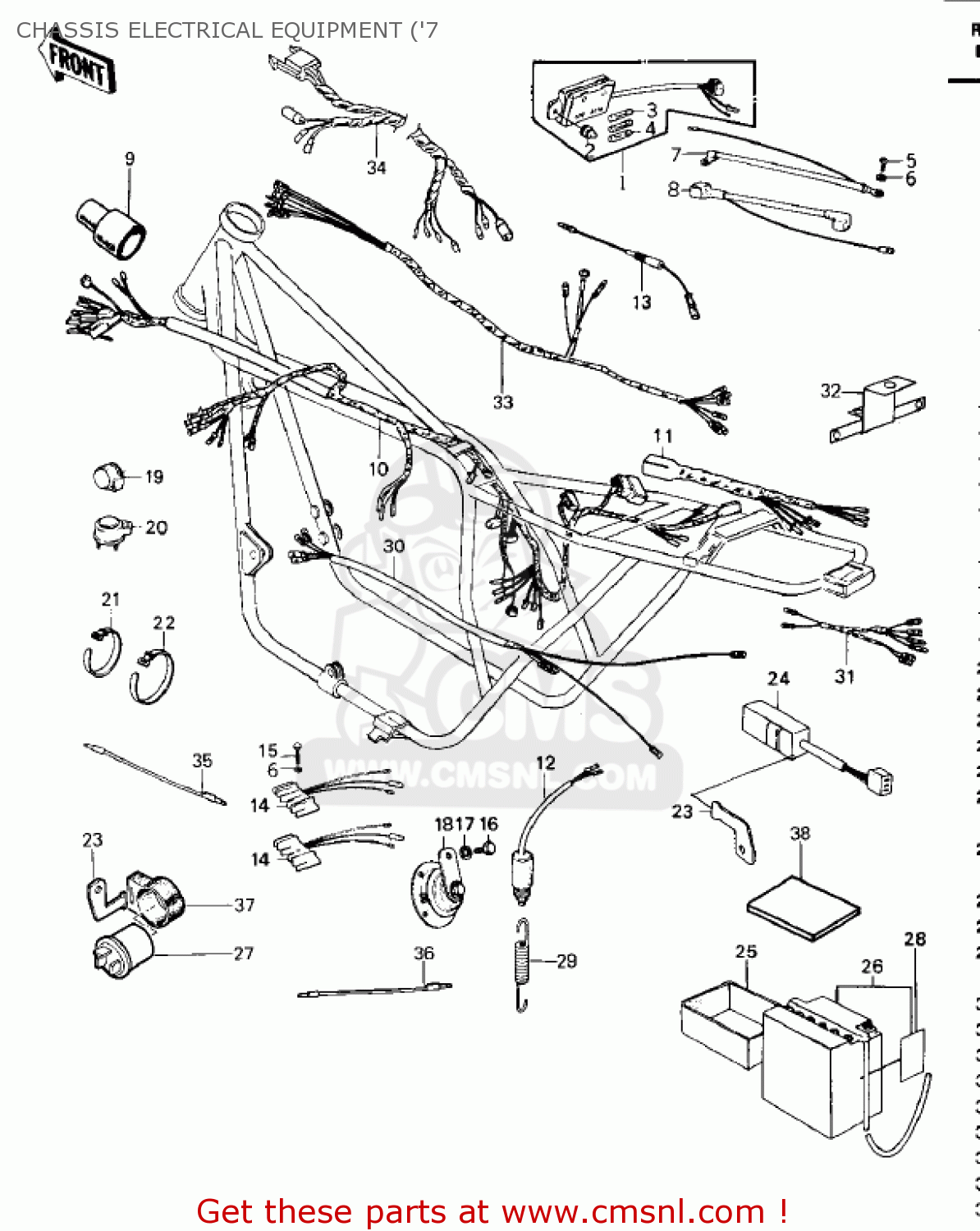

Chassis electrical equipment ('7 diagram KZ1000C4 POLICE 1000 1981 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000C4 POLICE 1000 1981 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000C4 POLICE 1000 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

260041006
ref: 1

FUSE-ASSY

€ 57.00

2

92075279
ref: 2

DAMPER,FUSE

€ 3.50

3

26006005
ref: 3

FUSE 20A

€ 3.50

4

26006003
ref: 4

FUSE 10A

€ 3.00

5

92001137
ref: 5

BOLT,HEX HEAD,6M/M

€ 4.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

26010054
ref: 7

WIRE-LEAD,BATTERY GRO

€ 17.00

8

260111047
ref: 8

WIRE-LEAD,STARTER MOT

€ 25.00

9

26009003
ref: 9

COVER-WIRING HARNESS

€ 2.00

10

260014003
ref: 10

WIRING HARNESS,MAIN

€ 156.00

10

260014005
ref: 10

WIRING HARNESS,MAIN

€ 155.50

10

260014009
ref: 10

HARNESS

€ 158.50

11

26002031
ref: 11

HARNESS,RR

€ 36.50

12

27010017
ref: 12

SWITCH,BRAKE LAMP

€ 23.50

13

260041001
ref: 13

FUSE ASSEMBLY

€ 6.00

14

21066024
ref: 14

REGULATOR

€ 33.00

15

112B0622
ref: 15

BOLT, 6X22

€ 2.50

15

110R0635
ref: 15

BOLT 6X35

€ 3.50

16

115G0816
ref: 16

BOLT-HEX,HEAD 8X16

€ 0.50

17

461F0800
ref: 17

WASHER-SPRING,8MM

€ 0.50

18

270031006
ref: 18

HORN

€ 99.00

19

27002011
ref: 19

RELAY-ASSY,TURN SIGNA

€ 69.50

20

27002016
ref: 20

RELAY-ASSY,HAZARD

€ 26.50

21

92072030
ref: 21

BAND,SHORT

€ 3.00

22

92072056
ref: 22

BAND,RUBBER

€ 3.00

23

32060014
ref: 23

BRACKET,OUTAGE SWITCH

€ 7.50

24

28019001
ref: 24

SWITCH,OUTAGE INDICTR

€ 46.00

25

32099015
ref: 25

CASE,BATTERY

€ 9.00

25

320991009
ref: 25

CASE

€ 10.50

26

260121008
ref: 26
YB-14L-A2

BATTERY,12V13AH W/LAB

€ 101.50

26

260121013
ref: 26
12N16-3B

BATTERY,12V 16AH

€ 80.50

27

270341001
ref: 27

ALTERNATING FLASH RELAY,OPTIONAL

€ 75.00

28

560401036
ref: 28

WARNING, BATTERY

€ 2.00

29

27011021
ref: 29

SPRING,BRAKE LAMP SW

€ 15.50

29

27011018
ref: 29

SPRING,BRAKE LAMP SW

€ 2.00

30

260011012
ref: 30

HAZARD WIRING HARNESS

€ 20.50

31

260011013
ref: 31

TAIL LAMP WIRING HARNESS

€ 16.50

32

230624002
ref: 32
OPTION

ANTENNA MOUNT BRACKET

€ 29.50

33

260014006
ref: 33

SIREN WIRING HARNESS

€ 26.50

34

260014008
ref: 34

HARNESS

€ 35.50

35

260014008
ref: 35

HARNESS

€ 35.50

36

260014013
ref: 36

HARNESS,AUXILIARY,BROWN

€ 3.00

37

27035001
ref: 37

HORN RELAY RUBBER

€ 13.50

38

920751143
ref: 38

DAMPER,BATTERY

€ 5.50
