FRONT FORK (KZ1000-C4)

KZ1000C4 POLICE 1000 1981 USA CANADA

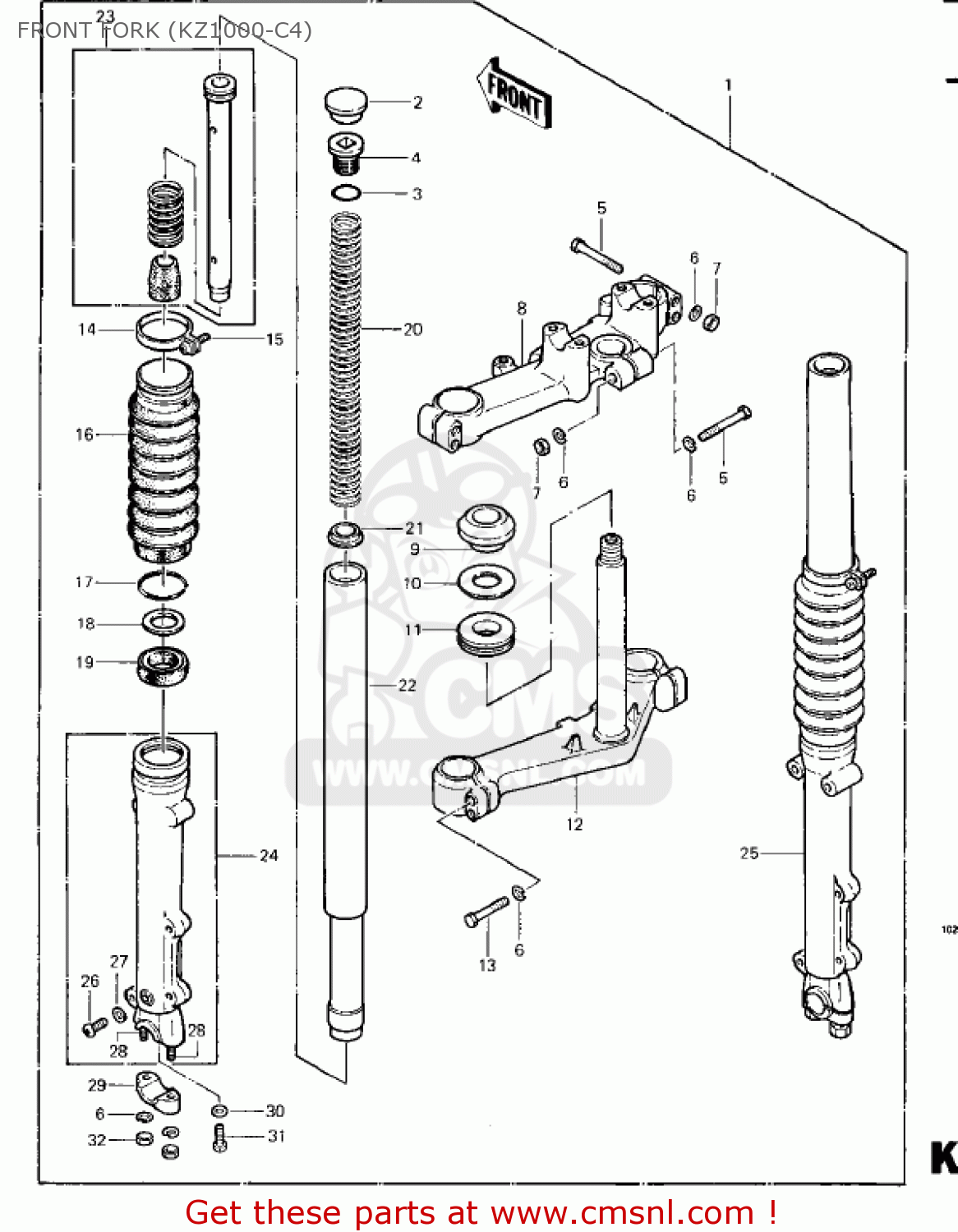

Front fork (kz1000-c4) diagram KZ1000C4 POLICE 1000 1981 USA CANADA

FRONT FORK (KZ1000-C4) KZ1000C4 POLICE 1000 1981 USA CANADA

FRONT FORK (KZ1000-C4) KZ1000C4 POLICE 1000 1981 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

440014005
ref: 1

FRONT FORK

€ 891.50

2

110121018
ref: 2

CAP,RUBBER

€ 9.00

3

920551012
ref: 3

RING-O,FORK TOP

€ 5.00

4

440291046
ref: 4

SEAT-FORK SPRING

€ 15.00

5

44041038
ref: 5

BOLT-HEX HEAD,8X55

€ 5.50

6

461F0800
ref: 6

WASHER-SPRING,8MM

€ 0.50

7

323N0800
ref: 7

NUT-CAP-SMALL,8MM

€ 2.50

8

440391003
ref: 8

STEERING STEM HEAD

€ 274.50

9

92047012
ref: 9

CONE-STRNG STM BRNG

€ 14.50

10

92022231
ref: 10

WASHER,PLAIN

€ 3.00

11

92056003
ref: 11

OIL SEAL,STEERING STM

€ 6.00

12

440371027
ref: 12

STEERING STEM

€ 358.00

13

115G0840
ref: 13

115G0840

14

920721046
ref: 14

BAND,BOOT

€ 6.50

15

220B0420
ref: 15

SCREW-PAN-CROS

€ 2.00

16

490161006
ref: 16

FORK BOOT

€ 49.00

17

920331002
ref: 17

CIRCLIP

€ 3.00

18

920221013
ref: 18

WASHER

€ 9.00

19

920491005
ref: 19

OIL SEAL

€ 14.50

20

440261002
ref: 20

FORK SPRING

€ 47.50

21

440281001
ref: 21

GUID,FORK SPRING

€ 5.50

22

440131002
ref: 22

FORK INNER TUBE

€ 191.50

23

440224002
ref: 23

FORK CYLINDER

€ 66.00

24

440051004
ref: 24

FORK OUTER TUBE,LH

€ 303.00

25

440061004
ref: 25

FORK OUTER TUBE,RH

€ 359.50

26

220B0408
ref: 26

SCREW-PAN-CROS

€ 0.50

27

44045002
ref: 27

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

28

920041009
ref: 28

STUD, 8X35

€ 4.00

29

44063014
ref: 29

HOLDER,FRONT AXLE

€ 23.50

30

44045057
ref: 30

GASKET (NAS)

€ 3.00

31

44041040
ref: 31

BOLT-FORK CYLINDER

€ 4.50

32

920151124
ref: 32

NUT,LOCK,8MM

€ 3.50
