Genuine KZ Kawasaki Parts delivered quickly!


CARBURETOR PARTS ('79-'81 C2/C3/

KZ1000C4 POLICE 1000 1981 USA CANADA

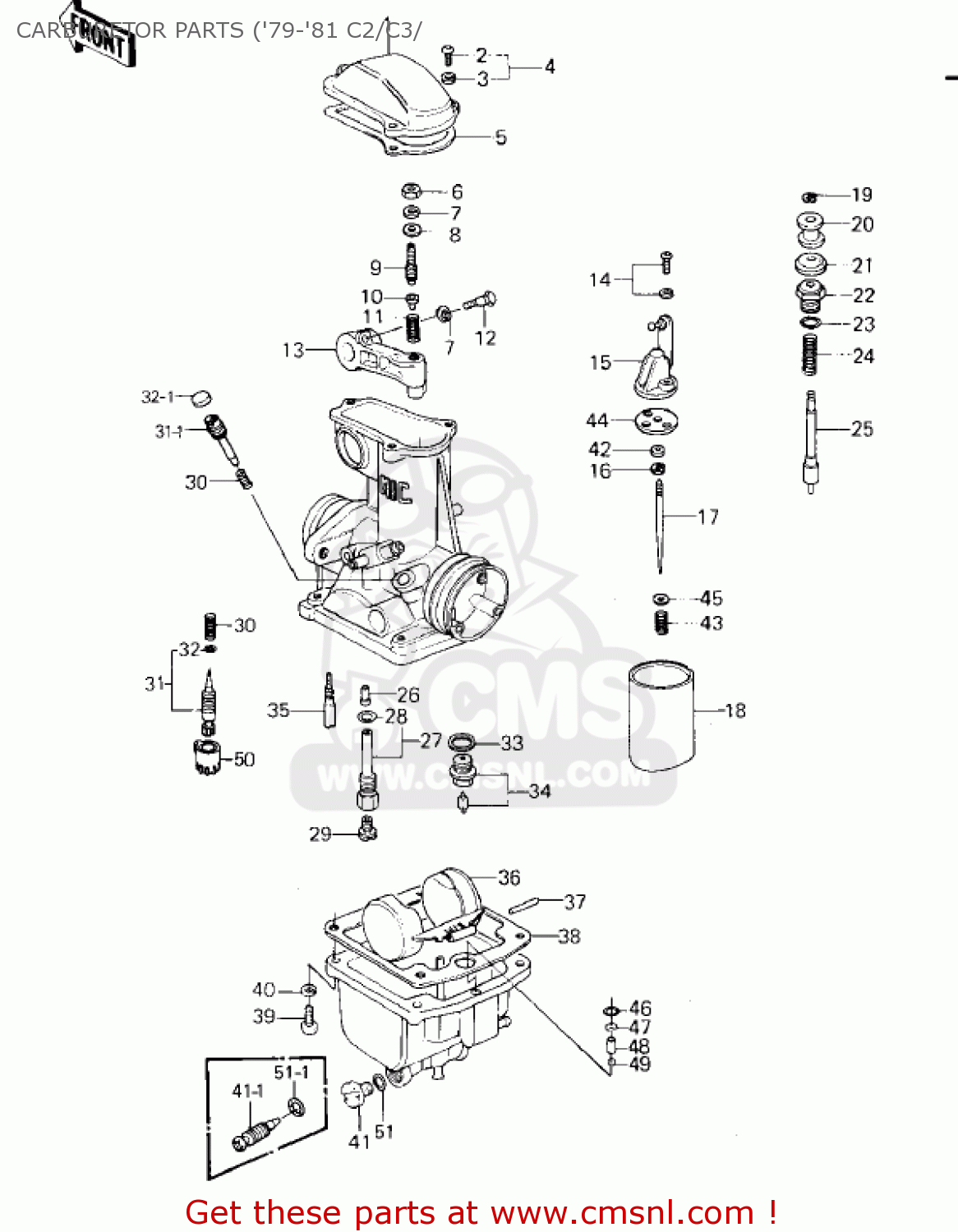

Carburetor parts ('79-'81 c2/c3/ diagram KZ1000C4 POLICE 1000 1981 USA CANADA

CARBURETOR PARTS ('79-'81 C2/C3/ KZ1000C4 POLICE 1000 1981 USA CANADA
CARBURETOR PARTS ('79-'81 C2/C3/ KZ1000C4 POLICE 1000 1981 USA CANADA
CARBURETOR PARTS ('79-'81 C2/C3/ KZ1000C4 POLICE 1000 1981 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
16005027
ref: 1
TOP,MIXING CHAMBER
16005027
€ 15.50
2
220B0414
ref: 2
SCREW-PAN-CROS
220B0414
€ 2.00
3
461F0400
ref: 3
WASHER-SPRING,4MM
461F0400
€ 0.50
4
223B0414
ref: 4
SCREW PAN-WS-CROS
€ 2.50
5
16019031
ref: 5
GASKET,CHAMBER,TOP (NAS)
16019031
€ 24.50
6
16003013
ref: 6
NUT,5M/M
16003013
€ 6.00
6
312B0500
ref: 6
NUT-HEX,5MM
312B0500
€ 0.50
7
461F0500
ref: 7
WASHER-SPRING,5MM
461F0500
€ 0.50
8
16039016
ref: 8
WASHER,PLAIN
16039016
€ 3.50
9
16046012
ref: 9
SCREW, SLOTTED
16046012
€ 13.50
10
16057002
ref: 10
SEAT-SPRING
€ 6.00
11
16040026
ref: 11
SPRING
€ 3.50
12
16067006
ref: 12
BOLT-HEX HEAD,5X14
16067006
€ 10.50
13
390751001
ref: 13
LEVER,THROTTLE
€ 25.00
14
16033031
ref: 14
SCREW, PAN HEAD, 3X14
16033031
€ 3.50
15
110341238
ref: 15
THROTTLE VALVE BRACKET
€ 29.00
16
16008010
ref: 16
CLAMP,E-TYPE
16008010
€ 5.00
17
160091030
ref: 17
JET,NEEDLE,5CN18
€ 21.00
17
160091046
ref: 17
JET,NEEDLE,5CN29
€ 21.00
18
160251014
ref: 18
THROTTLE VALVE,CA2.0
€ 67.00
18
160251026
ref: 18
THROTTLE VALVE,CA2.0
€ 57.50
19
16076003
ref: 19
CLAMP
16076003
€ 4.50
20
16073014
ref: 20
COLLAR,STARTER PLUNGE
16073014
€ 5.50
21
16039015
ref: 21
CAP,STARTER PLUNGER
16039015
€ 4.50
22
16012015
ref: 22
CAP-STARTER PLUNGER
16012015
€ 8.50
23
670B1509
ref: 23
O RING,9MM
670B1509
€ 1.00
24
16013008
ref: 24
SPRING-STARTER PLUNG
16013008
€ 4.50
25
16016021
ref: 25
PLUNGER,STARTER
16016021
€ 26.00
26
160171033
ref: 26
JET,NEEDLE,#AO-6
€ 19.50
26
160171035
ref: 26
NEEDLE-JET A0-4
€ 24.50
27
491221004
ref: 27
BLEED PIPE
€ 17.50
27
491221001
ref: 27
PIPE-BLEEDER
€ 37.50
28
16038016
ref: 28
GASKET,O-RING
16038016
€ 2.50
29
920631028
ref: 29
STD
JET-MAIN,#A102.5R
920631028
€ 10.00
29
920631033
ref: 29
JET-MAIN,#A100R
920631033
€ 17.00
29
920631042
ref: 29
JET-MAIN,#A105R
920631042
€ 10.50
29
92063073
ref: 29
JET-MAIN,#107.5R
92063073
€ 9.50
30
16022016
ref: 30
SPRING, PILOT SCREW
16022016
€ 6.00
30
16022007
ref: 30
SPRING-THR STOP SCREW
16022007
€ 5.50
31
16014018
ref: 31
SCREW-PILOT AIR
16014018
€ 19.00
31-1
160141020
ref: 31-1
PILOT ADJUSTING SCREW
160141020
€ 9.00
32
16038024
ref: 32
O RING
16038024
€ 1.00
32-1
920661051
ref: 32-1
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
33
16029004
ref: 33
WASHER-FLOAT VLV SEAT
16029004
€ 2.50
34
16030027
ref: 34
VALVE-FLOAT
16030027
€ 85.00
35
920641017
ref: 35
PILOT JET #A15
920641017
€ 15.00
36
16031031
ref: 36
FLOAT
16031031
€ 114.50
37
16032003
ref: 37
FLOAT PIN
16032003
€ 4.00
38
110091562
ref: 38
GASKET,FLOAT CHAMBER (NAS)
110091562
€ 12.50
39
220B0416
ref: 39
SCREW-PAN-CROS
220B0416
€ 2.00
40
461F0400
ref: 40
WASHER-SPRING,4MM
461F0400
€ 0.50
41
16049007
ref: 41
KZ1000-C2-EARLY C3
SCREW, GUIDE
16049007
€ 9.50
41-1
920661064
ref: 41-1
LATE KZ1000-C3-C4
SCREW,DRAIN
920661064
€ 8.50
42
920271103
ref: 42
RING,JET NEEDLE
920271103
€ 4.50
43
920811072
ref: 43
NEEDLE JET SPRING
€ 2.50
44
131691107
ref: 44
NEEDLE JET PLATE
131691107
€ 5.50
45
920221024
ref: 45
WASHER,THROTTLE VALVE
920221024
€ 4.50
46
920551059
ref: 46
RING-O,CHECK VALVE
920551059
€ 7.50
47
920371123
ref: 47
CLAMP,SPRING,CHECK VA
920371123
€ 3.50
48
130421004
ref: 48
WEIGHT,PUMP,CHECK VAL
130421004
€ 3.50
49
921401003
ref: 49
BALL,STEEL,5/32
921401003
€ 3.50
50
110121041
ref: 50
LIMITER CAP
110121041
€ 3.00
51
16038016
ref: 51
KZ1000-C2-EARLY C3
GASKET,O-RING
16038016
€ 2.50
51-1
92055044
ref: 51-1
LATE KZ1000-C3-C4
'O' RING
92055044
€ 7.00
