SWING ARM ('83 KX250-C1)

KX250-C1 KX250 1983 USA CANADA

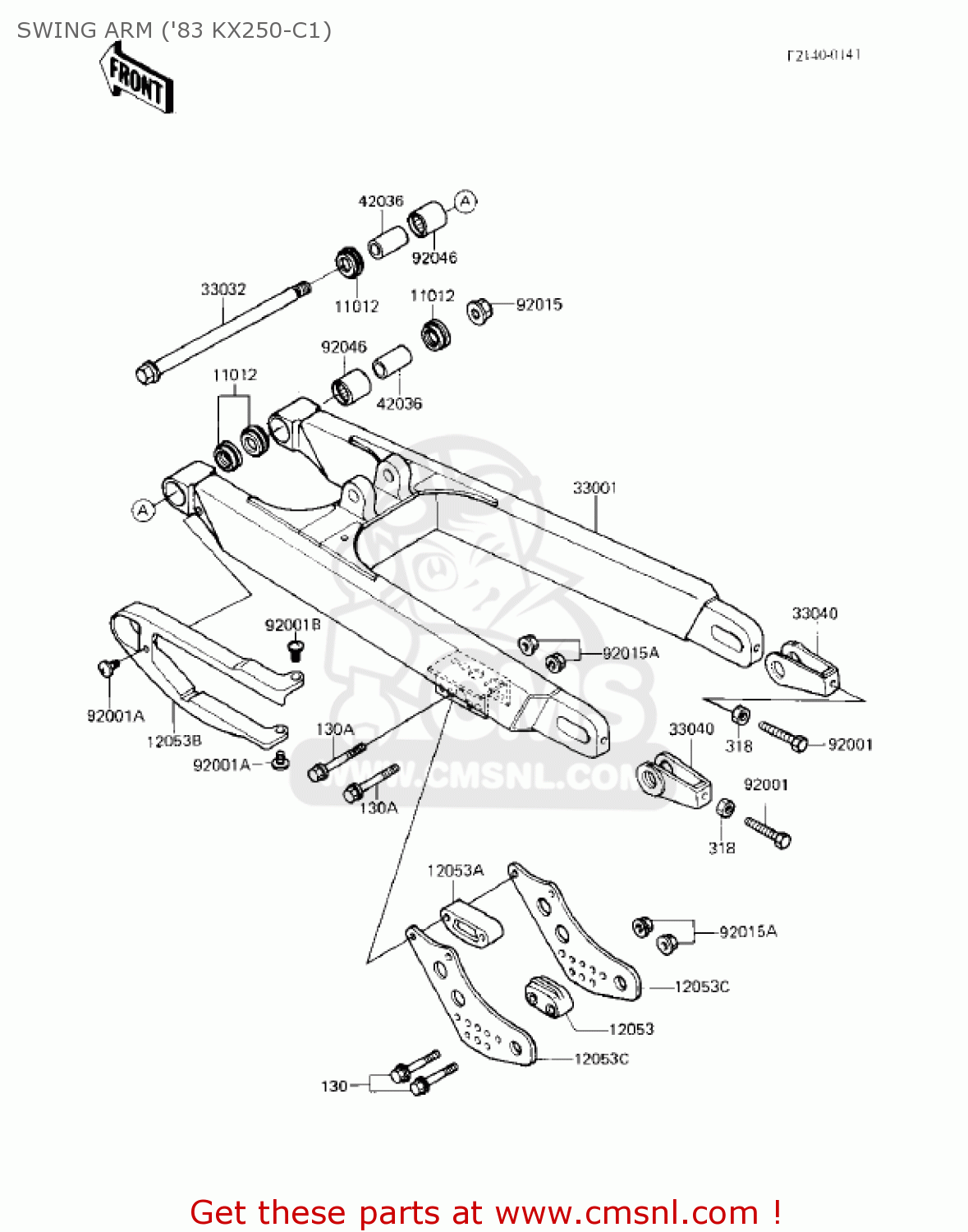

Swing arm ('83 kx250-c1) diagram KX250-C1 KX250 1983 USA CANADA

SWING ARM ('83 KX250-C1) KX250-C1 KX250 1983 USA CANADA

SWING ARM ('83 KX250-C1) KX250-C1 KX250 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121259
ref: 11012

CAP,SWING ARM

€ 15.00

12053

120531011
ref: 12053

GUIDE-CHAIN,RR,LWR

€ 16.50

12053A

120531039
ref: 12053A

GUIDE-CHAIN,RR,UPP

€ 10.50

12053B

120531068
ref: 12053B

GUIDE-CHAIN,FR

€ 38.50

12053C

120531073
ref: 12053C

GUIDE-CHAIN,RR

€ 40.50

33001

330011174
ref: 33001

ARM-COMP-SWING

€ 442.00

33032

330321042
ref: 33032

SHAFT-SWING ARM

€ 49.00

33040

330401022
ref: 33040

ADJUSTER-CHAIN

€ 27.00

42036

420361064
ref: 42036

SLEEVE,SWING ARM

€ 14.50

92001

920011027
ref: 92001

BOLT,CHAIN ADJUSTER

€ 9.50

92001A

920091286
ref: 92001A

SCREW,6X10

€ 2.50

92001B

920091287
ref: 92001B

SCREW,6X14

€ 1.50

92015

920151407
ref: 92015

NUT,14MM

€ 6.50

92015A

920151078
ref: 92015A

NUT,6M/M

€ 1.50

92046

920461031
ref: 92046

BEARING-NEEDLE,HMK203

€ 20.50

130

130H0635
ref: 130

BOLT-FLANGED,6X35

€ 0.50

130A

130G0645
ref: 130A

BOLT,FLANGED,6X45

€ 0.50

318

318G0800
ref: 318

NUT-HEX-SMALL,8MM

€ 1.00
