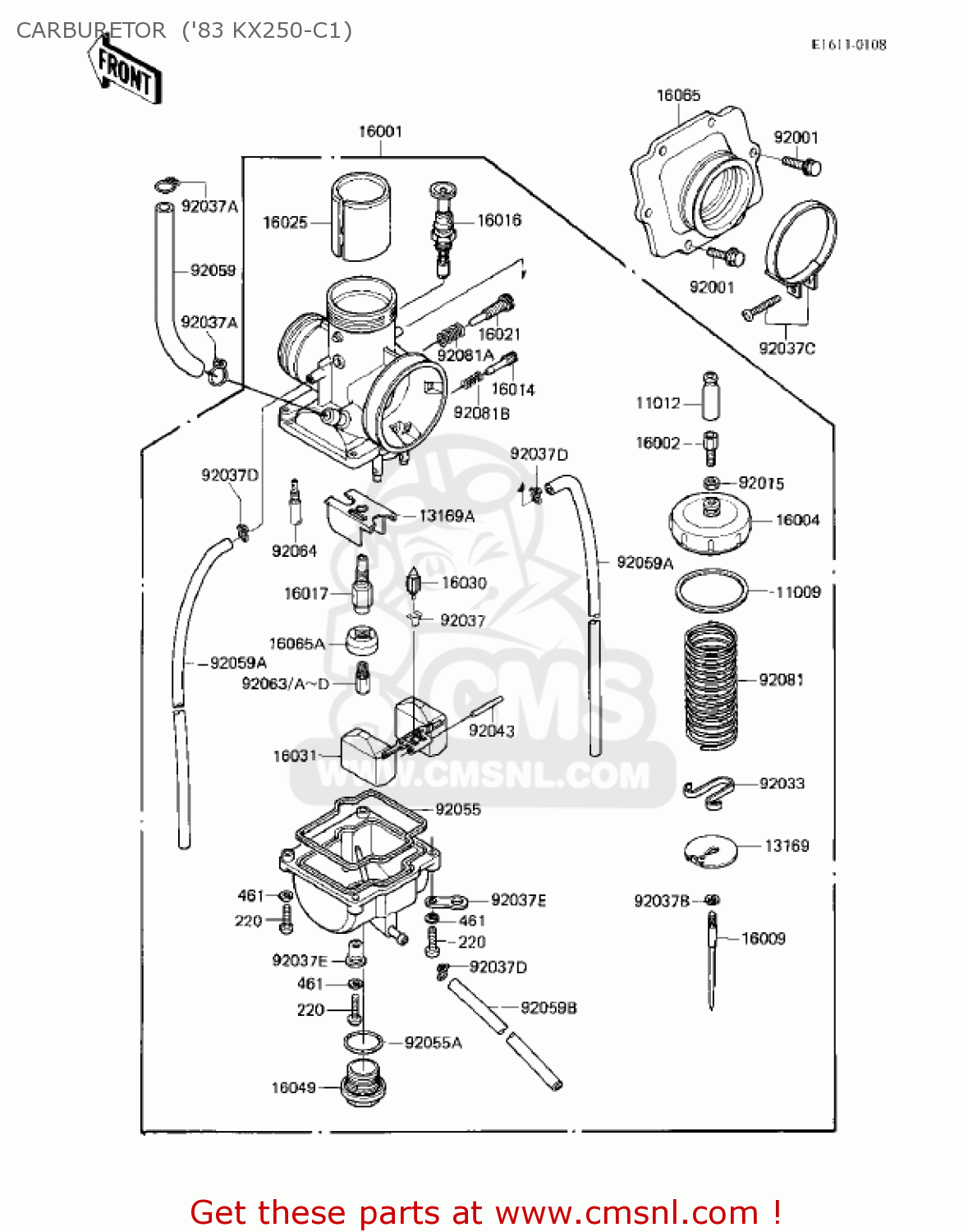

CARBURETOR ('83 KX250-C1)

ref

part #

description

quantity

11009

110091337
ref: 11009

GASKET,CHAMBER CAP

€ 11.50

11012

110121293
ref: 11012

CAP,CABLE ADJUSTER

€ 6.00

13169

131691609
ref: 13169

PLATE,THROTTLE VALVE

€ 5.00

13169A

131691610
ref: 13169A

PLATE,FLOAT CHAMBER

€ 8.50

16001

160011678
ref: 16001

CARBURETOR

€ 275.00

16002

160021015
ref: 16002

ADJUSTER-CABLE

€ 7.00

16004

160041017
ref: 16004

CAP-CHAMBER,MIXING

€ 22.50

16009

160091139
ref: 16009

NEEDLE-JET,N13A

€ 15.50

16014

160141033
ref: 16014

SCREW-PILOT AIR

€ 13.50

16016

160161028
ref: 16016

PLUNGER,STARTER

€ 75.00

16017

160171126
ref: 16017

JET-NEEDLE

€ 22.50

16021

160211045
ref: 16021

SCREW THROTTLE

€ 8.00

16025

160251079
ref: 16025

VALVE-THROTTLE,CA3.5

€ 80.00

16030

160301028
ref: 16030

VALVE-FLOAT,3.6

€ 27.00

16031

160311022
ref: 16031

FLOAT

€ 23.50

16049

160491007
ref: 16049

COVER-MAIN JET

€ 16.00

16065

160651048
ref: 16065

HOLDER-CARBURETOR

€ 43.00

16065A

160651074
ref: 16065A

HOLDER-CARBURETOR,JET

€ 8.00

92001

132G0620
ref: 92001

BOLT-FLANGED-SMALL

€ 1.50

92015

920151252
ref: 92015

NUT,CABLE ADJUST LOCK

€ 2.50

92033

920331096
ref: 92033

RING-SNAP,THROTTLE VA

€ 2.00

92037

16044007
ref: 92037

CLIP, FLOAT VALVE

€ 4.00

92037A

92037056
ref: 92037A

CLAMP,FUEL TUBE

€ 3.00

92037B

920371039
ref: 92037B

CLAMP,JET NEEDLE

€ 2.00

92037C

920371313
ref: 92037C

CLAMP,CARBURETOR HOLD

€ 7.00

92037D

920371396
ref: 92037D

CLAMP,TUBE

€ 3.50

92037E

920371969
ref: 92037E

CLAMP,HOSE

€ 5.00

92043

920431148
ref: 92043

PIN,FLOAT

€ 6.00

92055

920551166
ref: 92055

RING-O,FLOAT CHAMBER

€ 8.00

92055A

920551167
ref: 92055A

RING-O,MAIN JET COVER

€ 6.50

92059

920591252
ref: 92059

TUBE,FUEL,6.5X11.5

€ 8.50

92059A

920591284
ref: 92059A

TUBE,4X7X400

€ 4.50

92059B

920591285
ref: 92059B

TUBE,3.5X6.5X270

€ 3.50

92063

920631256
ref: 92063
(OPTION)

JET-MAIN,#155

€ 10.00

92063A

920631257
ref: 92063A
(OPTION)

JET-MAIN,#158

€ 10.00

92063B

920631258
ref: 92063B

JET-MAIN,#160

€ 10.00

92063C

920631259
ref: 92063C
(OPTION)

JET-MAIN,#162

€ 9.50

92063D

920631260
ref: 92063D
(OPTION)

JET-MAIN,#165

€ 9.50

92064

920641063
ref: 92064

JET-PILOT,#60

€ 8.50

92081

920811553
ref: 92081

SPRING,THROTTLE VALVE

€ 10.50

92081A

920811554
ref: 92081A

SPRING,STOP SCREW

€ 4.50

92081B

920811555
ref: 92081B

SPRING,ADJUST SCREW

€ 3.50

220

220B0416
ref: 220

SCREW-PAN-CROS

€ 2.00

461

461F0400
ref: 461

WASHER-SPRING,4MM

€ 0.50
