KICKSTARTER MECHANISM ('83 KX250

KX250-C1 KX250 1983 USA CANADA

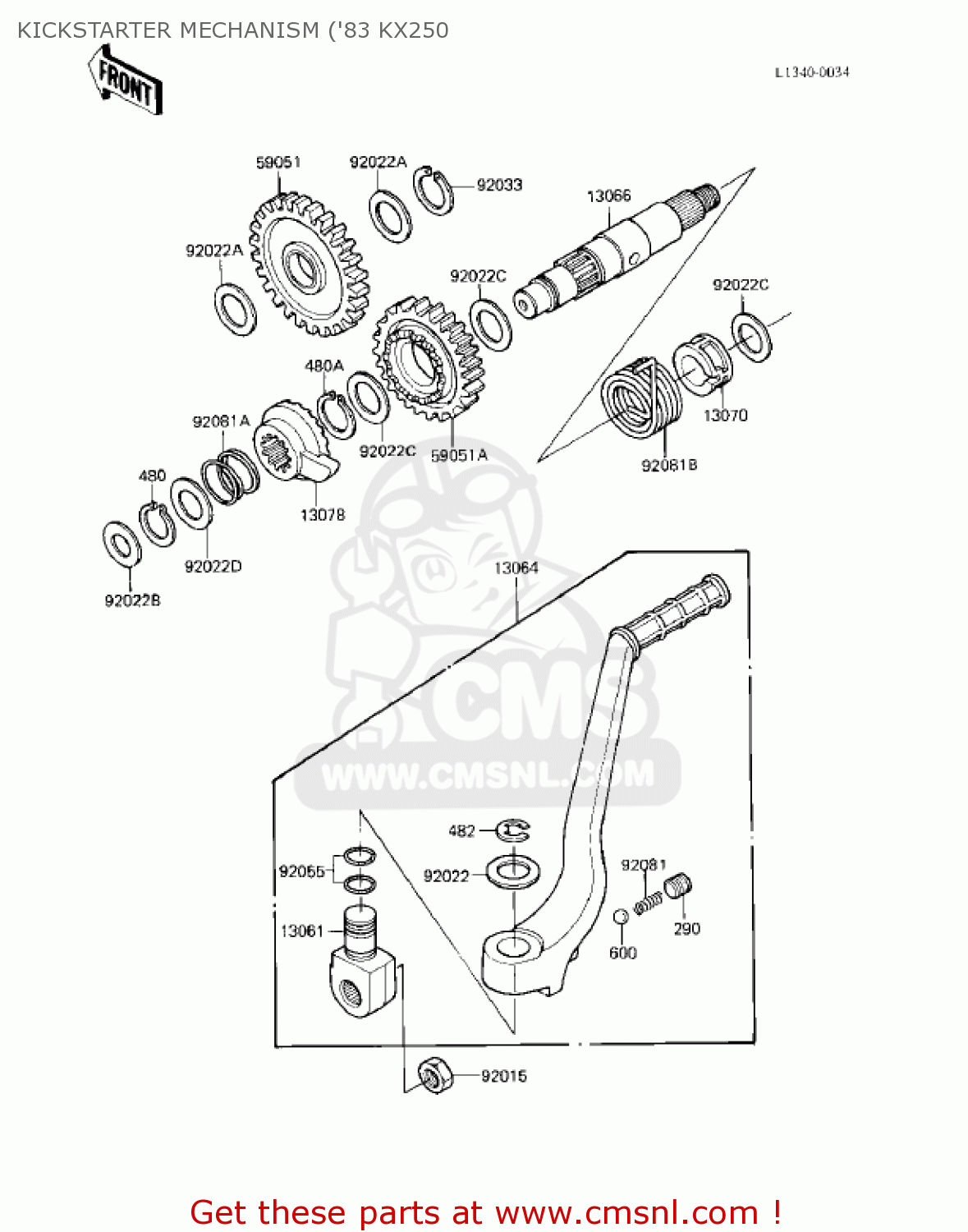

Kickstarter mechanism ('83 kx250 diagram KX250-C1 KX250 1983 USA CANADA

KICKSTARTER MECHANISM ('83 KX250 KX250-C1 KX250 1983 USA CANADA

KICKSTARTER MECHANISM ('83 KX250 KX250-C1 KX250 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

13061

130611055
ref: 13061

BOSS,KICK PEDAL

€ 62.00

13064

130641038
ref: 13064

LEVER-ASSY-KICK,PEDAL

€ 166.00

13066

130661026
ref: 13066

SHAFT-KICK

€ 67.00

13070

13070011
ref: 13070

GUIDE,KICKSTARTER SPR

€ 6.50

13078

130781061
ref: 13078

RATCHET

€ 50.50

59051

590511022
ref: 59051

GEAR-SPUR,30T

€ 72.50

59051A

590511051
ref: 59051A

GEAR-SPUR,KICKSTARTER

€ 78.00

92015

920151001
ref: 92015

NUT,12MM

€ 3.50

92022

920221019
ref: 92022

WASHER,15.2X20X1

€ 3.50

92022A

92022252
ref: 92022A

WASHER

€ 4.00

92022B

92022269
ref: 92022B

WASHER,PLAIN

€ 1.00

92022C

92022271
ref: 92022C

WASHER,PLAIN

€ 3.50

92022D

92022315
ref: 92022D

WASHER, 16.8X22X0.5

€ 4.00

92033

92033029
ref: 92033

CIRCLIP,18MM

€ 6.50

92055

92055072
ref: 92055

RING-O

€ 3.00

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081122
ref: 92081A

SPRING,RATCHET

€ 6.00

92081B

920811253
ref: 92081B

SPRING,KICKSTARTER

€ 12.50

290

290Q0816
ref: 290

SCREW-SET/SOCKET 8X16

€ 2.00

480

480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 2.50

480A

480J1800
ref: 480A

CIRCLIP-TYPE-C,18MM

€ 1.00

482

482K0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 0.50

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50
