Genuine KX Kawasaki Parts delivered quickly!


CYLINDER HEAD/CYLINDER/REED VALV

KX250-C1 KX250 1983 USA CANADA

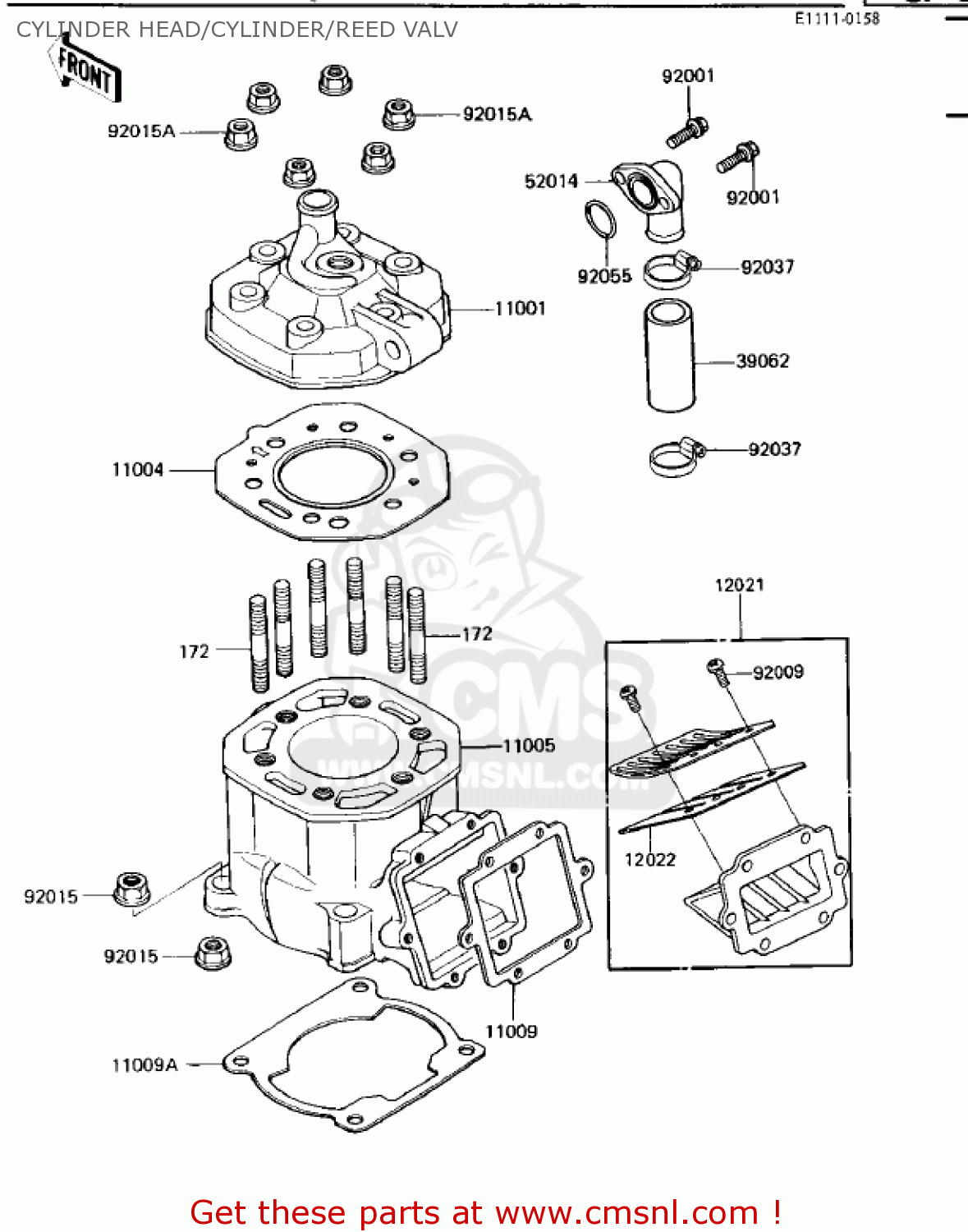

Cylinder head/cylinder/reed valv diagram KX250-C1 KX250 1983 USA CANADA

CYLINDER HEAD/CYLINDER/REED VALV KX250-C1 KX250 1983 USA CANADA
CYLINDER HEAD/CYLINDER/REED VALV KX250-C1 KX250 1983 USA CANADA
CYLINDER HEAD/CYLINDER/REED VALV KX250-C1 KX250 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
11001
110011159
ref: 11001
HEAD-CYLINDER
€ 90.00
11004
110041057
ref: 11004
GASKET-HEAD,CYLINDER (MCA)
110041057
€ 26.50
11005
110051347
ref: 11005
CYLINDER-ENGINE
€ 779.00
11009
110091950
ref: 11009
GASKET,REED VALVE (NAS)
110091950
€ 7.50
11009A
110091318
ref: 11009A
GASKET,CYLINDER BASE (MCA)
110091318
€ 6.50
12021
120211019
ref: 12021
VALVE-ASSY-REED
120211019
€ 113.00
12022
120221017
ref: 12022
VALVE-REED
120221017
€ 19.50
39062
390621256
ref: 39062
HOSE-COOLING,RADIATOR
390621256
€ 17.00
52014
520141004
ref: 52014
ELBOW,CYLINDER
€ 25.50
92001
132G0616
ref: 92001
BOLT-FLANGED-SMALL
132G0616
€ 1.00
92009
920091014
ref: 92009
SCREW,REED VALVE
920091014
€ 2.00
92015
920151415
ref: 92015
NUT,10MM
920151415
€ 3.00
92015A
920151143
ref: 92015A
NUT,8MM
920151143
€ 0.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
920371589
€ 13.00
92055
92055055
ref: 92055
'0'RING
92055055
€ 2.50
172
920041009
ref: 172
STUD, 8X35
920041009
€ 4.00
