GEAR CHANGE DRUM & FORKS ('83 KX

KX250-C1 KX250 1983 USA CANADA

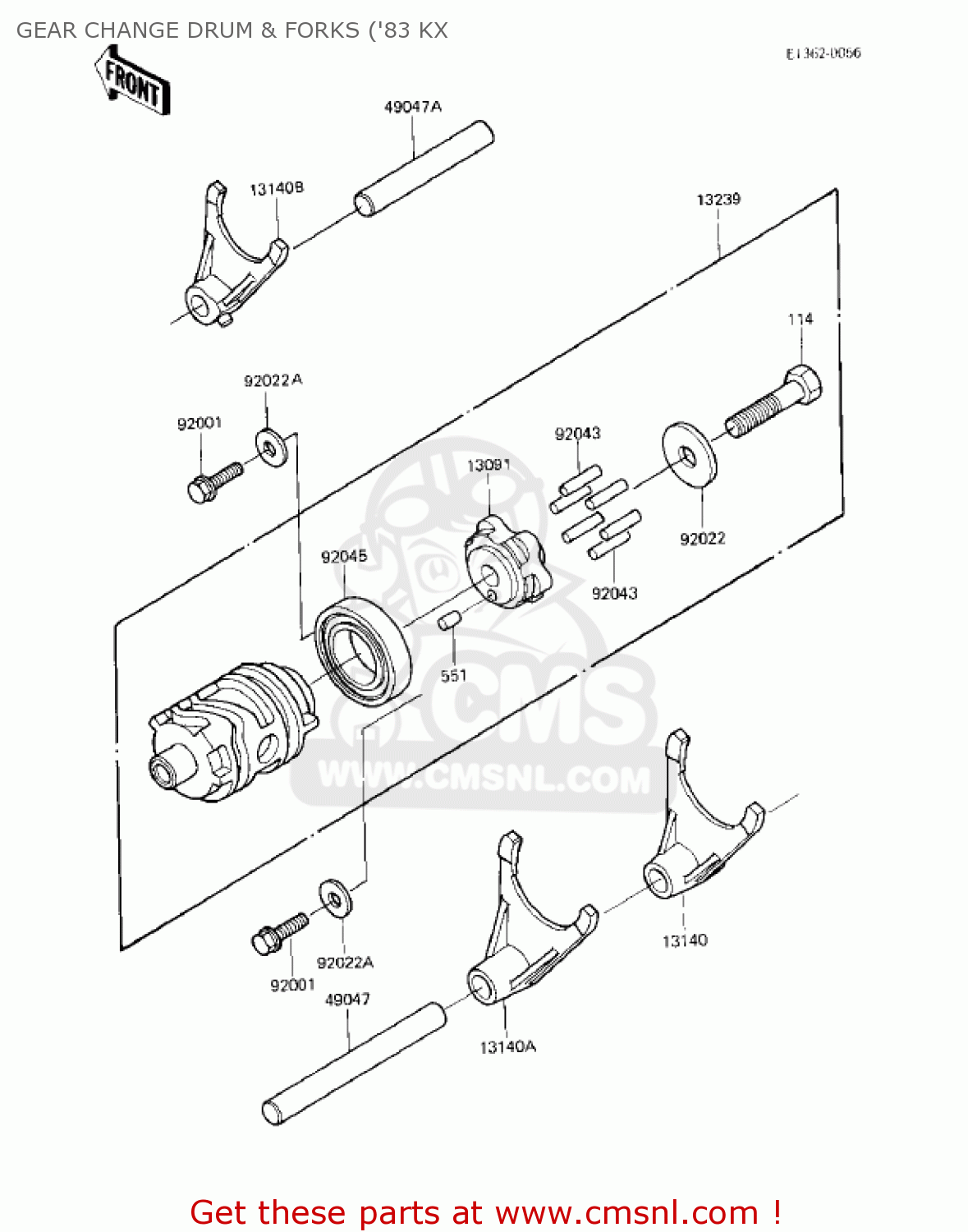

Gear change drum & forks ('83 kx diagram KX250-C1 KX250 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

13091

130911189
ref: 13091

HOLDER,CHANGE DRUM

€ 49.00

13140

131401071
ref: 13140

FORK-SHIFT,LOW

€ 62.50

13140A

131401072
ref: 13140A

FORK-SHIFT,2ND&3RD

€ 58.50

13140B

131401073
ref: 13140B

FORK-SHIFT,4TH&TOP

€ 58.00

13239

132391077
ref: 13239

DRUM-ASSY-CHANGE

€ 171.00

49047

490471009
ref: 49047

ROD,SHIFT,10X90

€ 11.00

49047A

490471011
ref: 49047A

ROD,SHIFT,L=65M/M

€ 6.00

92001

920011627
ref: 92001

BOLT,FLANGED,6X14

€ 1.00

92022

920221564
ref: 92022

WASHER

€ 2.50

92022A

920221393
ref: 92022A

WASHER,6X14X2

€ 2.50

92043

92042029
ref: 92043

PIN,GEAR CHANGE DRUM

€ 3.50

92045

920451058
ref: 92045

BEARING-BALL,6905Z

€ 36.50

114

115G0835
ref: 114

BOLT HEX,HEAD,8X35

€ 3.00

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50
