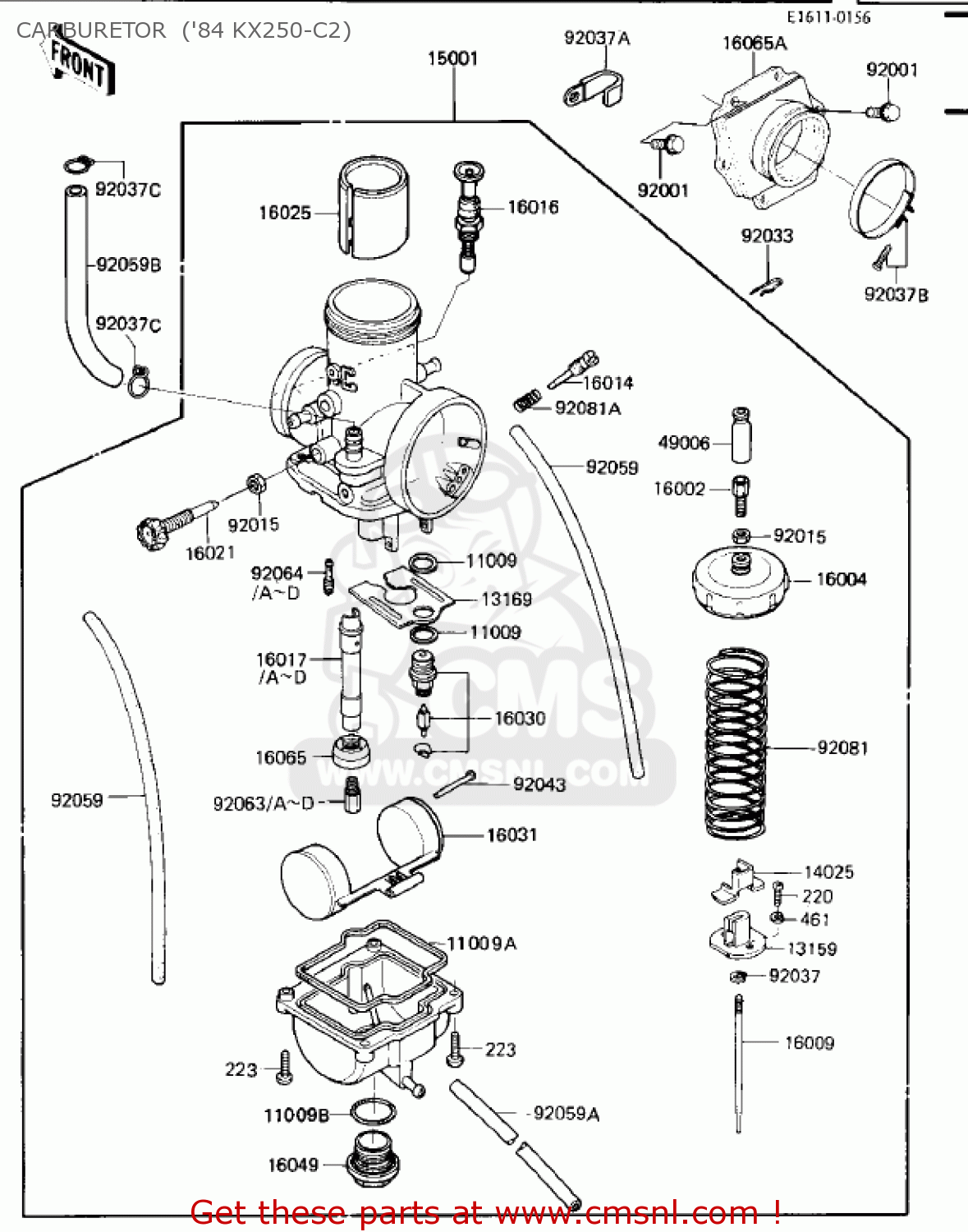

CARBURETOR ('84 KX250-C2)

ref

part #

description

quantity

11009

110091076
ref: 11009

GASKET,FLOAT VALVE (NAS)

€ 2.00

11009A

16019028
ref: 11009A

GASKET,FLOAT CHAMBER (NAS)

€ 11.50

11009B

16038009
ref: 11009B

GASKET,MAIN JET COVER

€ 5.50

13159

131591010
ref: 13159

CONNECTOR,THROTTLE

€ 9.00

13169

131691520
ref: 13169

PLATE,FLOAT CHAMBER

€ 7.50

14025

140251478
ref: 14025

COVER,THROTTLE

€ 5.50

15001

160011927
ref: 15001

CARBURETOR

€ 271.50

16002

16002011
ref: 16002

CABLE ADJUSTER

€ 9.50

16004

16004026
ref: 16004

CAP-CHAMBER,MIXING

€ 31.00

16009

160091225
ref: 16009

NEEDLE-JET,6J04

€ 19.50

16014

16014006
ref: 16014

SCREW-PILOT AIR

€ 9.00

16016

160161026
ref: 16016

PLUNGER,STARTER

€ 40.50

16017

160171212
ref: 16017
(OPTION)

JET-NEEDLE,R-4

€ 26.50

16017A

160171213
ref: 16017A
(OPTION)

JET-NEEDLE,R-6

€ 25.00

16017B

160171250
ref: 16017B

JET-NEEDLE,R-2

€ 26.50

16017C

160171238
ref: 16017C
(OPTION)

JET-NEEDLE,R-0

€ 18.00

16017D

160171239
ref: 16017D

JET-NEEDLE,Q-8

€ 20.50

16021

160211108
ref: 16021

SCREW-THROTTLE STOP

€ 12.50

16025

160251112
ref: 16025

VALVE-THROTTLE,CA 2.5

€ 63.00

16030

160301015
ref: 16030

VALVE-FLOAT,#3.0

€ 31.50

16031

16031030
ref: 16031

FLOAT

€ 36.00

16049

160491005
ref: 16049

COVER-MAIN JET

€ 12.50

16065

160651040
ref: 16065

HOLDER-CARBURETOR

€ 40.50

16065A

160651048
ref: 16065A

HOLDER-CARBURETOR

€ 43.00

49006

490061169
ref: 49006

BOOT,CARBURETOR

€ 22.00

92001

132G0620
ref: 92001

BOLT-FLANGED-SMALL

€ 1.50

92015

16003006
ref: 92015

NUT-CABLE ADJUST LOCK

€ 4.50

92033

92036018
ref: 92033

CIRCLIP

€ 2.50

92037

16008010
ref: 92037

CLAMP,E-TYPE

€ 5.00

92037A

920371069
ref: 92037A

CLAMP,L=60

€ 1.50

92037B

920371313
ref: 92037B

CLAMP,CARBURETOR HOLD

€ 7.00

92037C

92037147
ref: 92037C

CLAMP,CHAIN OILER

€ 4.50

92043

16032008
ref: 92043

PIN,FLOAT

€ 4.00

92059

920591142
ref: 92059

TUBE,3.5X6.5X410

€ 16.50

92059A

920591233
ref: 92059A

TUBE,3.5X6.5X300

€ 4.50

92059B

920591252
ref: 92059B

TUBE,FUEL,6.5X11.5

€ 8.50

92063

92063045
ref: 92063
(OPTION)

MAIN JET #300

€ 6.00

92063A

92063046
ref: 92063A
(OPTION)

JET-MAIN,#310

€ 8.00

92063B

92063047
ref: 92063B

JET-MAIN,#320

€ 8.50

92063C

92063048
ref: 92063C
(OPTION)

JET-MAIN,#330

€ 12.50

92063D

92063049
ref: 92063D
(OPTION)

JET-MAIN,#340

€ 10.50

92064

92064022
ref: 92064

PILOT JET #30 ISO

€ 11.50

92064A

92064023
ref: 92064A
(OPTION)

JET-PILOT,#35

€ 13.00

92064B

92064024
ref: 92064B
(OPTION)

JET-PILOT,#40

€ 14.00

92064C

92064032
ref: 92064C
(OPTION)

PILOT JET #25

€ 12.50

92064D

920641033
ref: 92064D
(OPTION)

JET-PILOT,#27.5

€ 11.50

92081

16006028
ref: 92081

SPRING,THROTTLE VALVE

€ 8.50

92081A

16022007
ref: 92081A

SPRING-THR STOP SCREW

€ 5.50

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

223

223B0516
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

461

461F0300
ref: 461

WASHER-SPRING,3MM

€ 0.50
