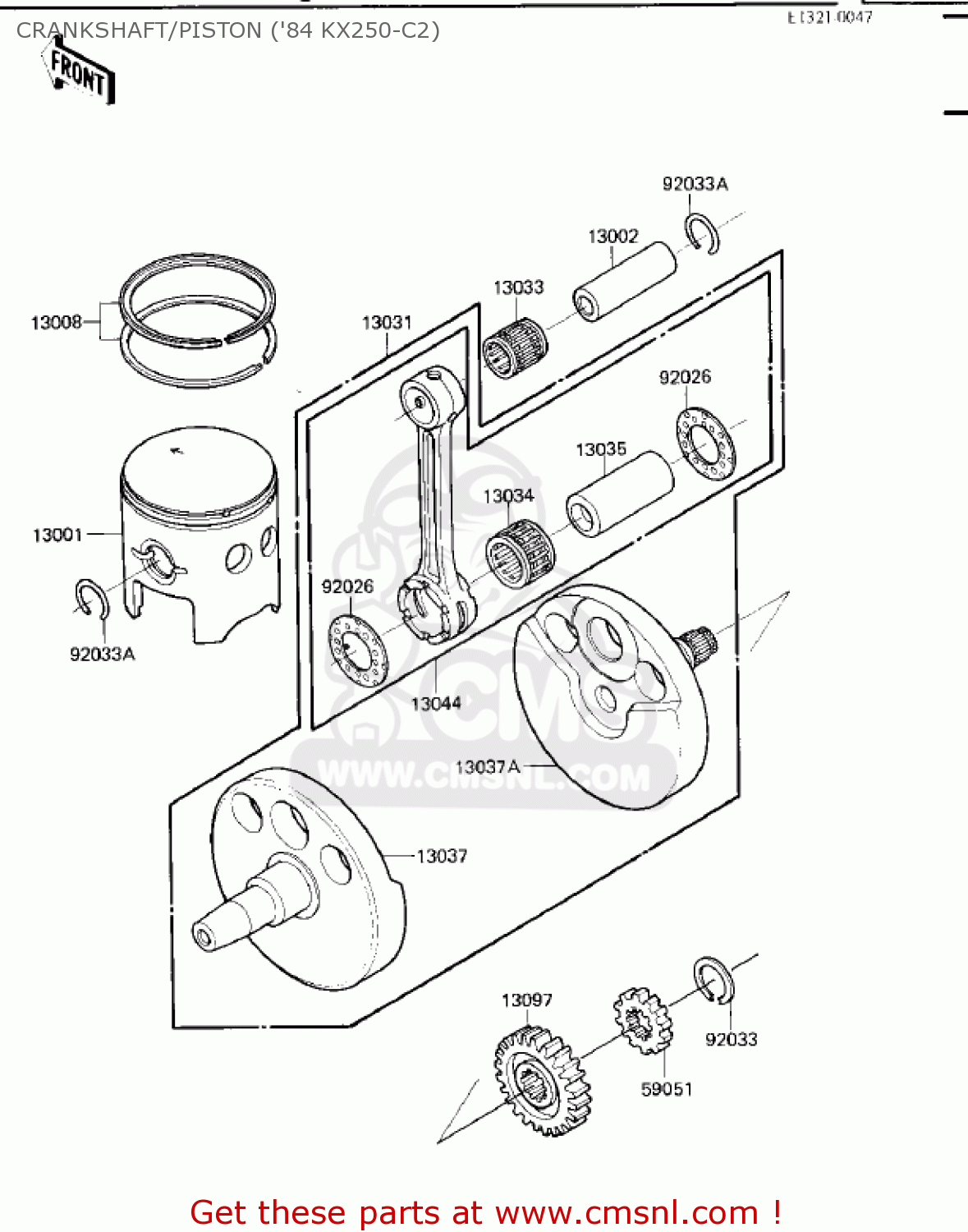

CRANKSHAFT/PISTON ('84 KX250-C2)

KX250-C1 KX250 1983 USA CANADA

Crankshaft/piston ('84 kx250-c2) diagram KX250-C1 KX250 1983 USA CANADA

CRANKSHAFT/PISTON ('84 KX250-C2) KX250-C1 KX250 1983 USA CANADA

CRANKSHAFT/PISTON ('84 KX250-C2) KX250-C1 KX250 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

13001

130011004
ref: 13001

PISTON-ENGINE

€ 69.50

13002

13002017
ref: 13002

PIN-PISTON

€ 17.50

13008

130085008
ref: 13008

RING-SET-PISTON

€ 51.50

13031

130311189
ref: 13031

CRANKSHAFT-COMP

€ 622.00

13033

130331010
ref: 13033

BEARING-NEEDLE,KBK18X

€ 22.50

13034

130341034
ref: 13034

BEARING-BIG END,H24X3

€ 57.50

13035

13035034
ref: 13035

PIN-CRANK

€ 54.50

13037

130371097
ref: 13037

CRANKSHAFT,LH

€ 257.50

13037A

130371158
ref: 13037A

CRANKSHAFT,RH

€ 170.50

13044

130445045
ref: 13044

SET-CONNECTING ROD

€ 138.50

13097

130971070
ref: 13097

GEAR-PRIMARY SPUR,20T

€ 39.50

59051

590511049
ref: 59051

GEAR-SPUR,WATER PUMP,

€ 18.00

92026

920261241
ref: 92026

SPACER

€ 4.00

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

92036015
ref: 92033A

RING-SNAP,PISTON PIN

€ 3.00
