SHOCK ABSORBER ('84 KX250-C2)

KX250-C1 KX250 1983 USA CANADA

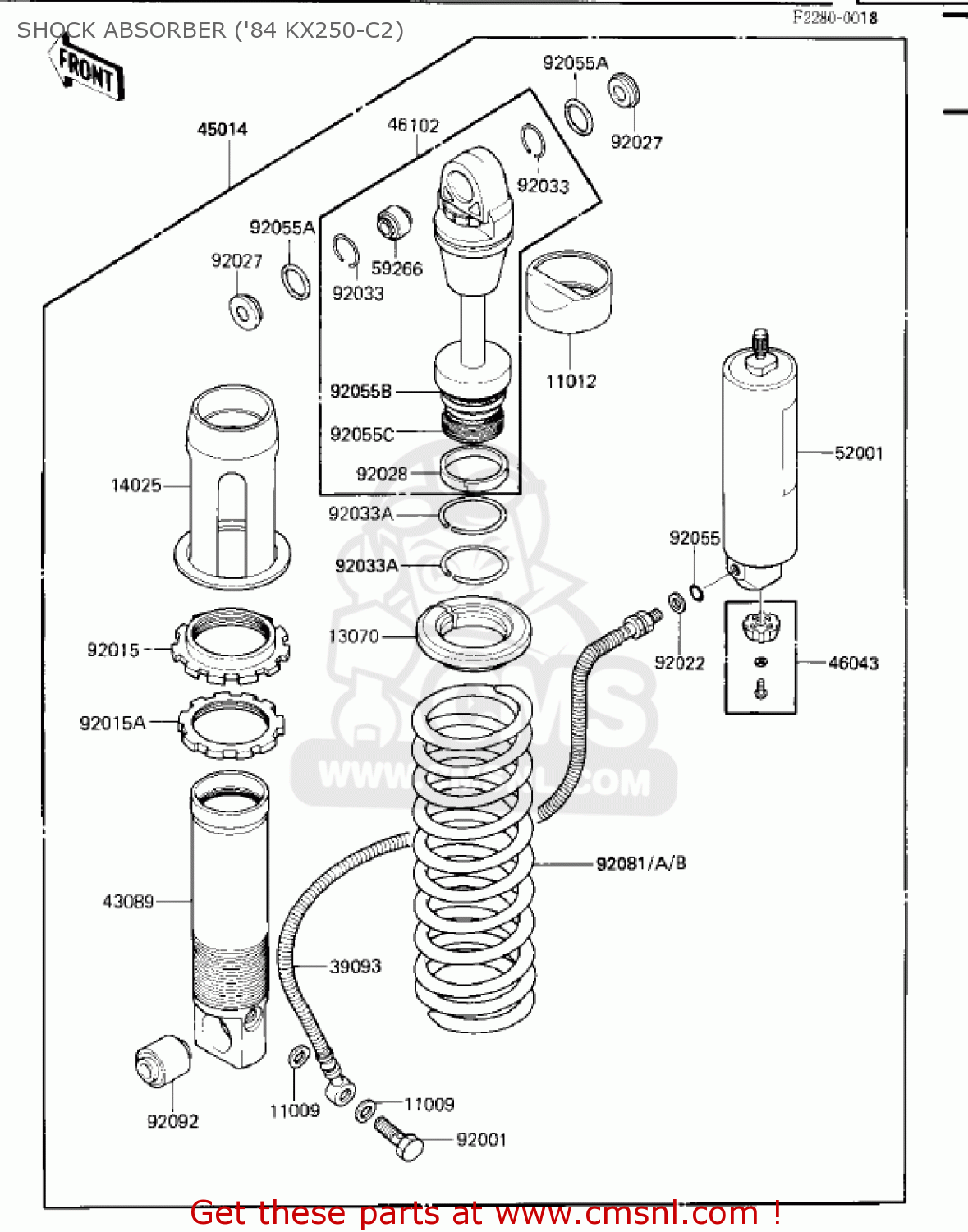

Shock absorber ('84 kx250-c2) diagram KX250-C1 KX250 1983 USA CANADA

SHOCK ABSORBER ('84 KX250-C2) KX250-C1 KX250 1983 USA CANADA

SHOCK ABSORBER ('84 KX250-C2) KX250-C1 KX250 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

44045057
ref: 11009

GASKET (NAS)

€ 3.00

11012

110121278
ref: 11012

CAP,REARSHOCK

€ 4.00

13070

130701075
ref: 13070

GUIDE,SPRING

€ 49.50

14025

140251664
ref: 14025

COVER,SHOCKABSORBER

€ 14.00

39093

390931102
ref: 39093

PIPE-COMP-SUSP

€ 109.50

43089

430891102
ref: 43089

CYLINDER-SHOCKABSORBE

€ 273.00

45014

450141258
ref: 45014

SHOCKABSORBER,RR

€ 876.50

46043

460431051
ref: 46043

KNOB-ASSY,REAR SHOCK

€ 8.50

46102

461021116
ref: 46102

ROD,SHOCKABSORBER

€ 524.50

52001

520011052
ref: 52001

TANK-OIL,REARSHOCK

€ 216.50

59266

592661053
ref: 59266

JOINT-BALL

€ 78.00

92001

920011752
ref: 92001

BOLT,PIPE-COMP-SUSP

€ 8.00

92015

920151238
ref: 92015

NUT,SPRING ADJUST LOC

€ 12.50

92015A

920151239
ref: 92015A

NUT,SPRING ADJUST

€ 31.50

92022

920221297
ref: 92022

WASHER,REAR SHOCK

€ 1.50

92027

920271534
ref: 92027

COLLAR,REARSHOCK

€ 9.00

92028

920281288
ref: 92028

BUSHING,ROD

€ 12.50

92033

920331090
ref: 92033

RING-SNAP

€ 3.50

92033A

920331091
ref: 92033A

RING-SNAP,REARSHOCK

€ 3.00

92055

920551099
ref: 92055

RING-O

€ 3.00

92055A

920551156
ref: 92055A

RING-O,REARSHOCK

€ 1.00

92055B

920551181
ref: 92055B

RING-O,ROD

€ 5.50

92055C

920551234
ref: 92055C

RING-O,ROD

€ 3.50

92081

920811573
ref: 92081

SPRING,SHOCKABSORBER,

€ 235.00

92081A

920811574
ref: 92081A
(OPTION)

SPRING,SHOCKABSORBER

€ 235.00

92081B

920811575
ref: 92081B
(OPTION)

SPRING

€ 182.50

92092

920921008
ref: 92092

BUSHING-RUBBER,SHOCKA

€ 22.00
