IGNITION ('83 KX250-C1)

KX250-C1 KX250 1983 USA CANADA

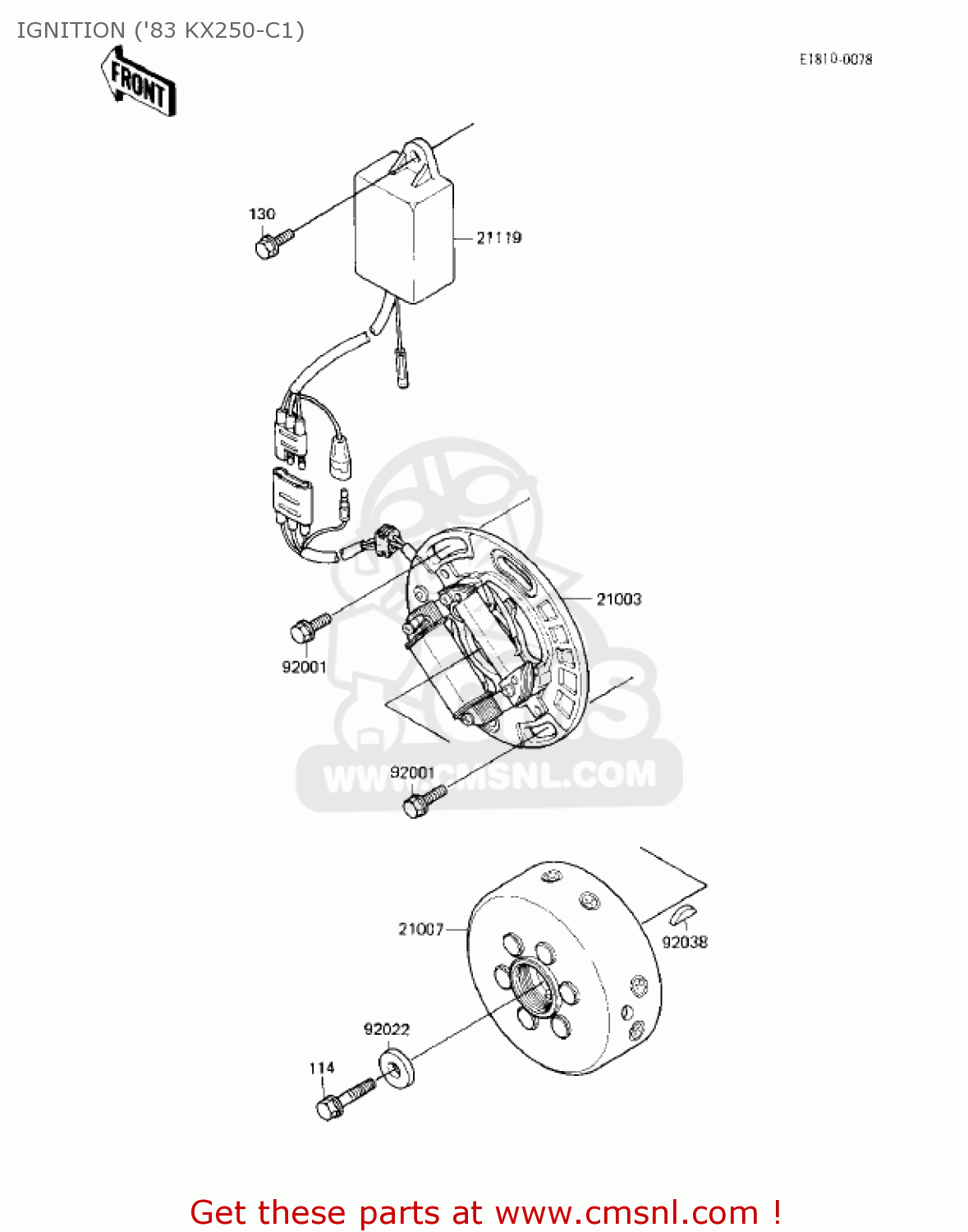

Ignition ('83 kx250-c1) diagram KX250-C1 KX250 1983 USA CANADA

IGNITION ('83 KX250-C1) KX250-C1 KX250 1983 USA CANADA

IGNITION ('83 KX250-C1) KX250-C1 KX250 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

21003

210031075
ref: 21003

STATOR

€ 645.00

21007

210071060
ref: 21007

ROTOR

€ 440.00

21119

211191063
ref: 21119

IGNITER

€ 373.50

92001

132G0616
ref: 92001

BOLT-FLANGED-SMALL

€ 1.00

92022

92022276
ref: 92022

WASHER,PLAIN,8MM

€ 6.50

92038

92038001
ref: 92038

WOODRUFF KEY

€ 3.00

114

114G0830
ref: 114

BOLT,HEX HEAD,8X30

€ 3.00

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50
