MUFFLER ('83 KX250-C1)
KX250-C1 KX250 1983 USA CANADA

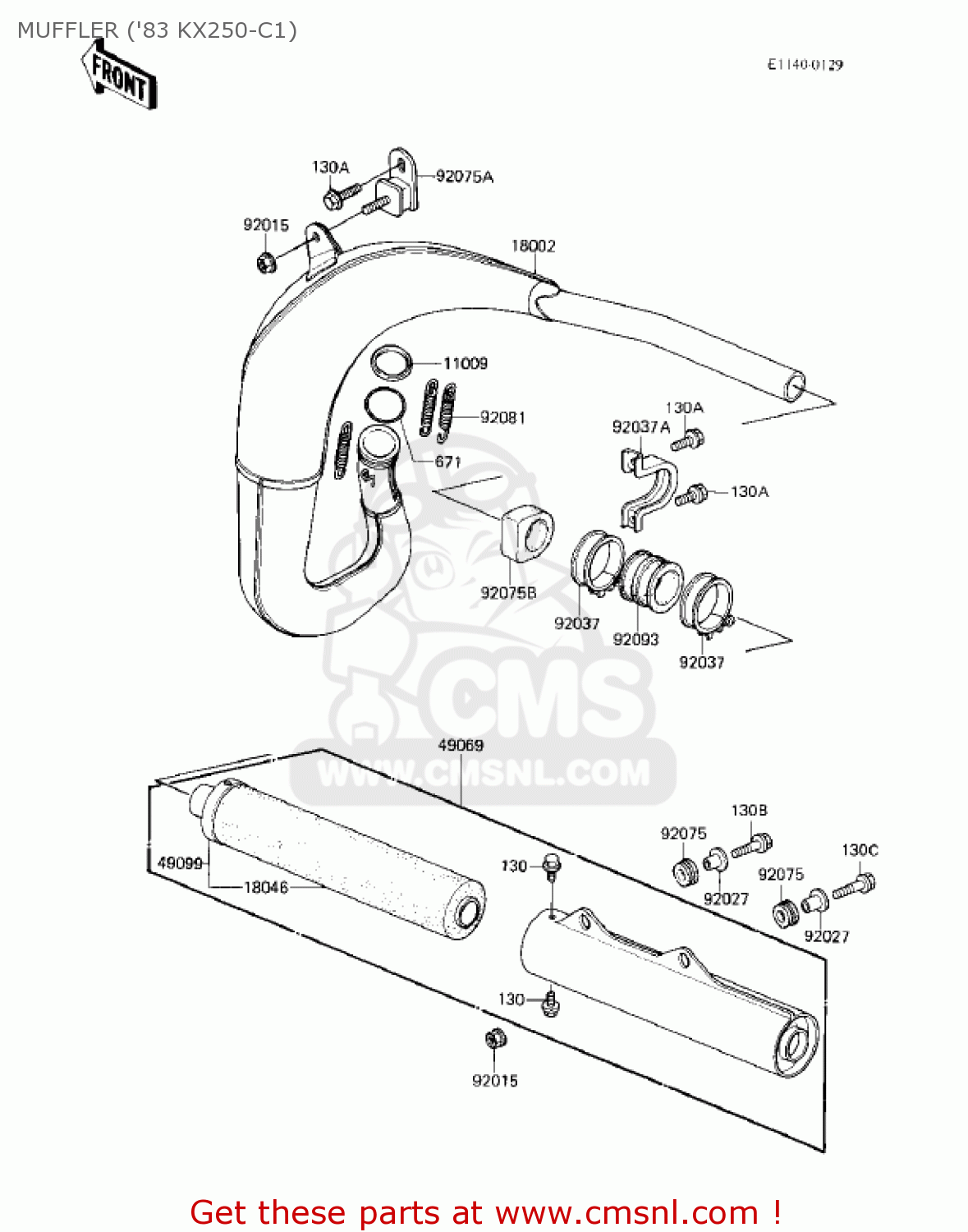

Muffler ('83 kx250-c1) diagram KX250-C1 KX250 1983 USA CANADA
MUFFLER ('83 KX250-C1) KX250-C1 KX250 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091253
ref: 11009
GASKET,EXHAUST PIPE (NAS)
€ 7.50
18002
180021294
ref: 18002
BODY-COMP-MUFFLER
€ 211.00
18046
180461075
ref: 18046
WOOL,MUFFLER BAFFLE P
€ 40.00
49069
490691006
ref: 49069
MUFFLER-ASSY
€ 195.00
49099
490991110
ref: 49099
BAFFLE-PIPE MUFFLER
€ 79.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92027
920271062
ref: 92027
COLLAR,SEAT
€ 4.50
92037
920371129
ref: 92037
CLAMP,40MM
€ 6.00
92037A
920371372
ref: 92037A
CLAMP,MUFFLER
€ 6.50
92075
920751123
ref: 92075
DAMPER,RUBBER
€ 3.00
92075A
920751891
ref: 92075A
DAMPER,MUFFLER
€ 21.00
92075B
920751428
ref: 92075B
DAMPER,MUFFLER
€ 17.50
92081
920811526
ref: 92081
SPRING,MUFFLER CONECT
€ 7.50
92093
920931085
ref: 92093
SEAL,MUFFLER
€ 23.50
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
130A
130G0612
ref: 130A
BOLT,FLANGE,6X12
€ 0.50
130B
130G0620
ref: 130B
BOLT,FLANGED,6X20
€ 2.50
130C
130G0625
ref: 130C
BOLT,FLANGED,6X25
€ 0.50
671
671E2550
ref: 671
O RING,50MM
€ 10.50
