FUEL TANK ('83 KX250-C1)
KX250-C1 KX250 1983 USA CANADA

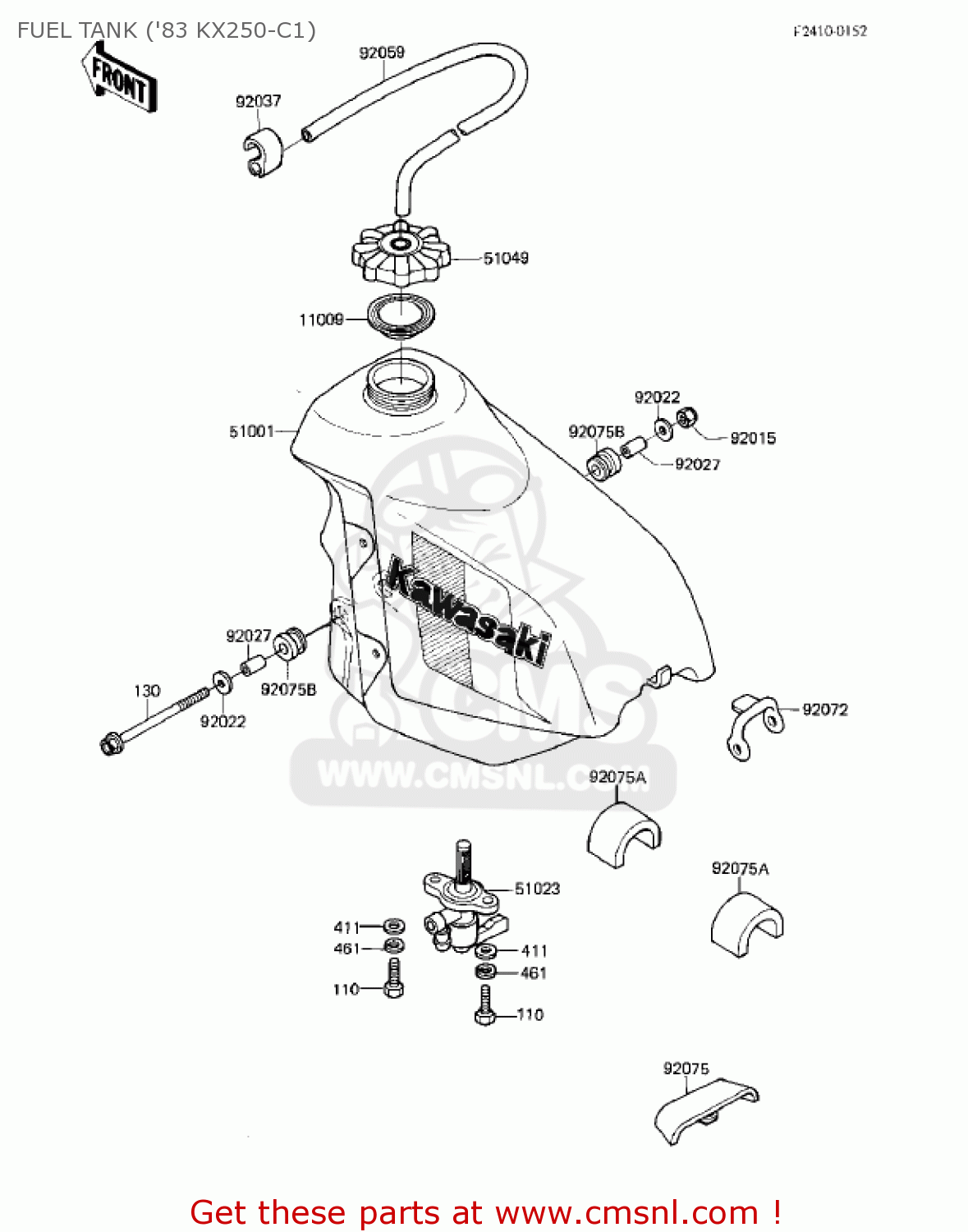

Fuel tank ('83 kx250-c1) diagram KX250-C1 KX250 1983 USA CANADA
FUEL TANK ('83 KX250-C1) KX250-C1 KX250 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091452
ref: 11009
GASKET,FUEL TANK CAP (NAS)
€ 15.00
51001
5100152976W
ref: 51001
TANK-COMP-FUEL,L.GREE
€ 234.50
51023
510231115
ref: 51023
TAP-ASSY,FUEL
€ 37.00
51049
510491006
ref: 51049
CAP-TANK,FUEL
€ 21.50
92015
92019008
ref: 92015
NUT-LOCK,6MM
€ 3.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
€ 3.00
92037
920371377
ref: 92037
CLAMP,TUBE
€ 3.50
92059
920591258
ref: 92059
TUBE,5X9X250
€ 8.50
92072
920721056
ref: 92072
BAND,FUEL TANK
€ 6.50
92075
920751355
ref: 92075
DAMPER
€ 9.00
92075A
920751382
ref: 92075A
DAMPER,FUEL TANK
€ 20.50
92075B
920751424
ref: 92075B
DAMPER,FUEL TANK
€ 3.50
110
112G0616
ref: 110
BOLT UPSET,6X16
€ 1.00
130
130G0695
ref: 130
BOLT-FLANGED,6X95
€ 3.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
