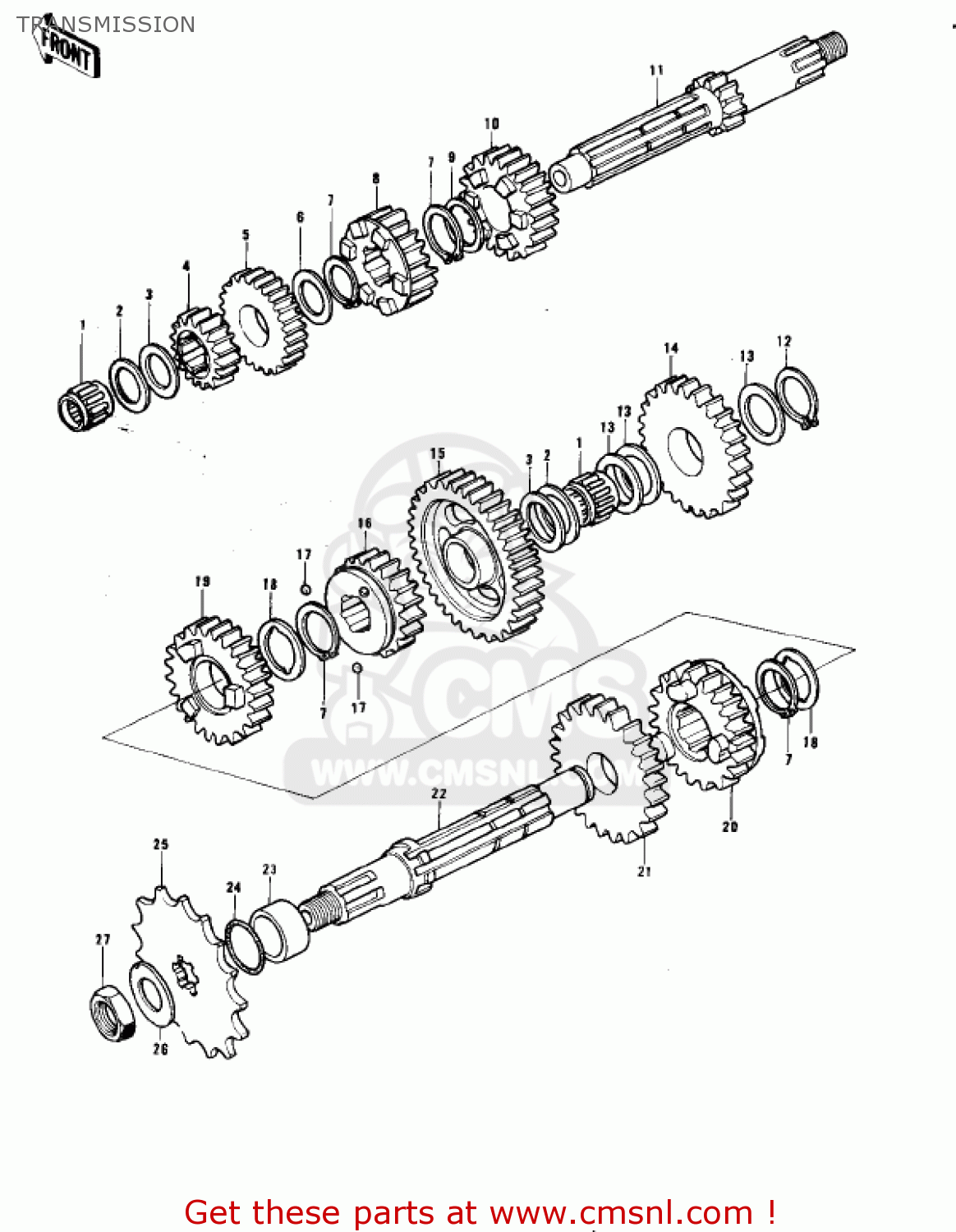

TRANSMISSION

ref

part #

description

quantity

1

92046026
ref: 1
7EHKS16241Z-1

BEARING-NEEDLE,#7E-HK

€ 24.50

2

92022170
ref: 2
T=1.0 M/M

WASHER-THRUST

€ 6.00

3

92022171
ref: 3
PHOSPHOR-BRONZE

WASHER-THRUST

€ 2.50

4

13130024
ref: 4
10T

2ND GEAR-DRIVE SHAFT

€ 29.50

5

13134023
ref: 5
20T

4TH GEAR,DRIVE,20T

€ 41.50

6

92022181
ref: 6
1-D=22.5

WASHER,22.5X30X2.6

€ 3.50

7

480J2100
ref: 7

CIRCLIP-TYPE-C,21MM

€ 3.00

8

13132022
ref: 8
20T

3RD GEAR-DRIVE SHAFT

€ 71.00

9

92022106
ref: 9

WASHER,22.5X30X1

€ 2.50

10

13136052
ref: 10
22T

TOP GEAR,DRIVE SHAFT

€ 77.50

11

13127029
ref: 11
12T

SHAFT-DRIVE

€ 86.00

12

480J1500
ref: 12

CIRCLIP-TYPE-C,15MM

€ 1.00

13

92022169
ref: 13
(=0.5 M/M

WASHER-PLAIN

€ 3.00

14

13073009
ref: 14
29T

IDLE GEAR-KICKSTARTER

€ 68.50

15

13129051
ref: 15
32T

LOW GEAR,OUTPUT SHAF

€ 25.50

16

13137034
ref: 16
17T

TOP GEAR,OUTPUT SHAFT

€ 86.00

17

600A0500
ref: 17

BALL-STEEL,5/32

€ 0.50

18

92024031
ref: 18

WASHER,TOOTHED,22.5X3

€ 4.00

19

13133021
ref: 19
24T

3RD GEAR-OUTPUT SHAFT

€ 41.50

20

13135029
ref: 20
19T

4TH GEAR,OUTPUT,19T

€ 79.50

21

13131029
ref: 21
28T

2ND GEAR-OUTPUT SHAFT

€ 68.50

22

13128028
ref: 22

SHAFT-OUTPUT

€ 78.50

23

92027180
ref: 23

COLLAR,ENG SPROCKET

€ 29.50

24

92055022
ref: 24

'O' RING

€ 4.00

25

131441058
ref: 25
STD

SPROCKET-OUTPUT,14T

€ 20.00

25

131441058
ref: 25
STD KE175-B2/-B3

SPROCKET-OUTPUT,14T

€ 20.00

25

13144053
ref: 25
OPT

SPROCKET-OUTPUT,13T

€ 30.00

25

13144054
ref: 25
OPT

SPROCKET-OUTPUT,15T

€ 30.00

26

92024002
ref: 26

WASHER,CLAW,12.5X30X0

€ 3.50

27

92016024
ref: 27

NUT,12MM

€ 3.50
