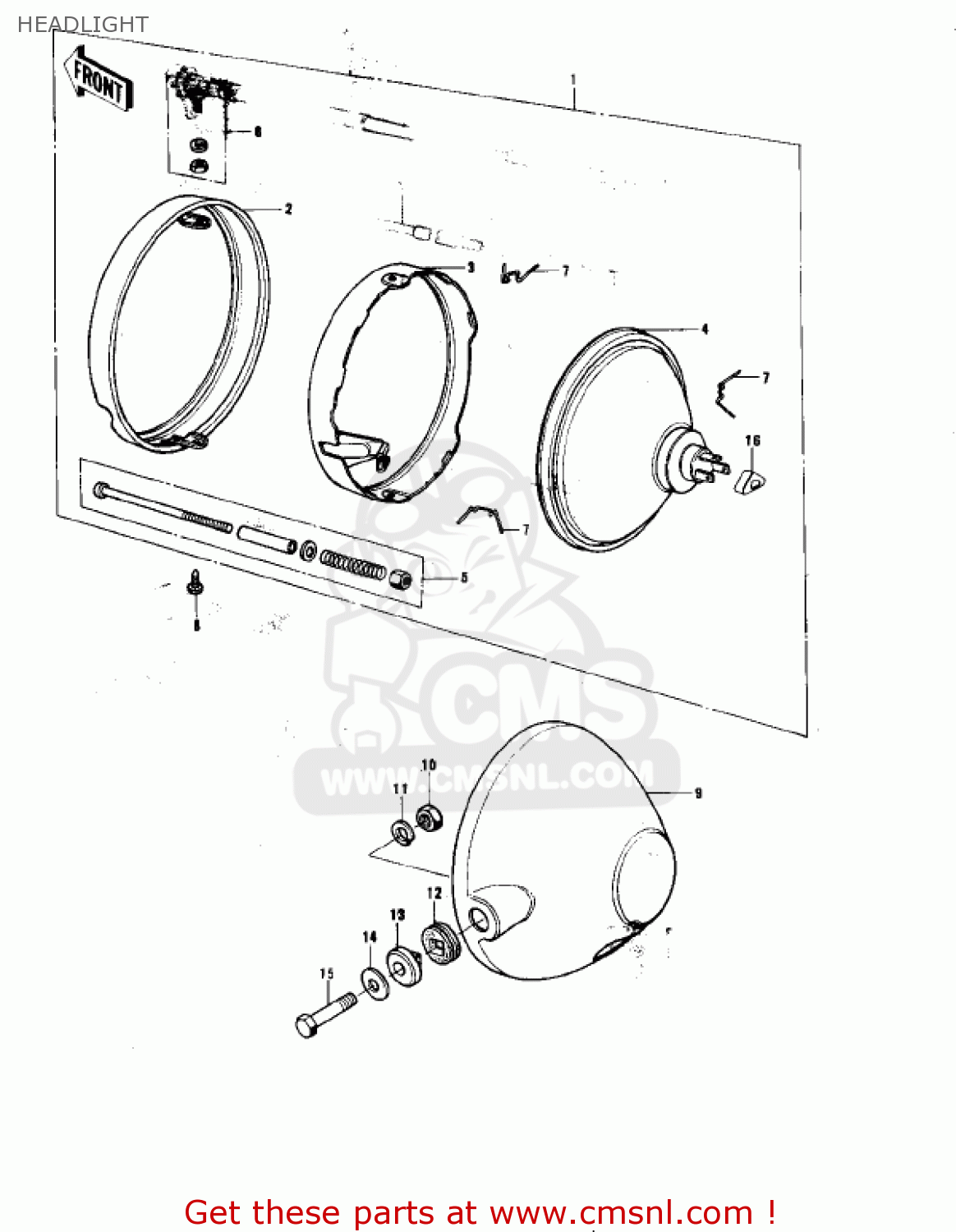

HEADLIGHT

ref

part #

description

quantity

1

230041012
ref: 1

HEADLAMP,UNIT

€ 118.00

1

230041012
ref: 1
KE175-B3

HEADLAMP,UNIT

€ 118.00

2

23006042
ref: 2

RIM,HEAD LAMP

€ 43.00

3

23072002
ref: 3

RETAINER,SEALED BEAM

€ 29.50

4

23007068
ref: 4

HEADLAMP UNIT LENS

€ 259.00

4

23007073
ref: 4
KE175-B3

SEALED BEAM UNIT

€ 229.50

5

230135001
ref: 5

SCREW ASSY,FOCUS AJST

€ 10.50

6

23013007
ref: 6

SCREW ASY,LENS UNIT

€ 3.50

7

23009015
ref: 7

SPRING,HEAD LAMP LENS

€ 3.50

8

23019025
ref: 8

SCREW,PAN HEAD,5X14

€ 1.50

9

2300505021
ref: 9
FLAT BLACK

HEADLAMP BODY,FLAT BLACK

€ 140.50

10

314B1000
ref: 10

NUT,10MM

€ 0.50

11

461F1000
ref: 11

WASHER-SPRING,10MM

€ 0.50

12

23066011
ref: 12

DAMPER

€ 3.50

13

23052005
ref: 13

COLLAR,L=9.6

€ 8.50

14

411D1000
ref: 14

WASHER-PLAIN,10MM

€ 3.00

15

92007041
ref: 15

BOLT,HEX HEAD,10X30

€ 7.00

16

23081001
ref: 16
KE175-B3

COVER,HD LAMP SOCKET

€ 6.50

all assemblies
