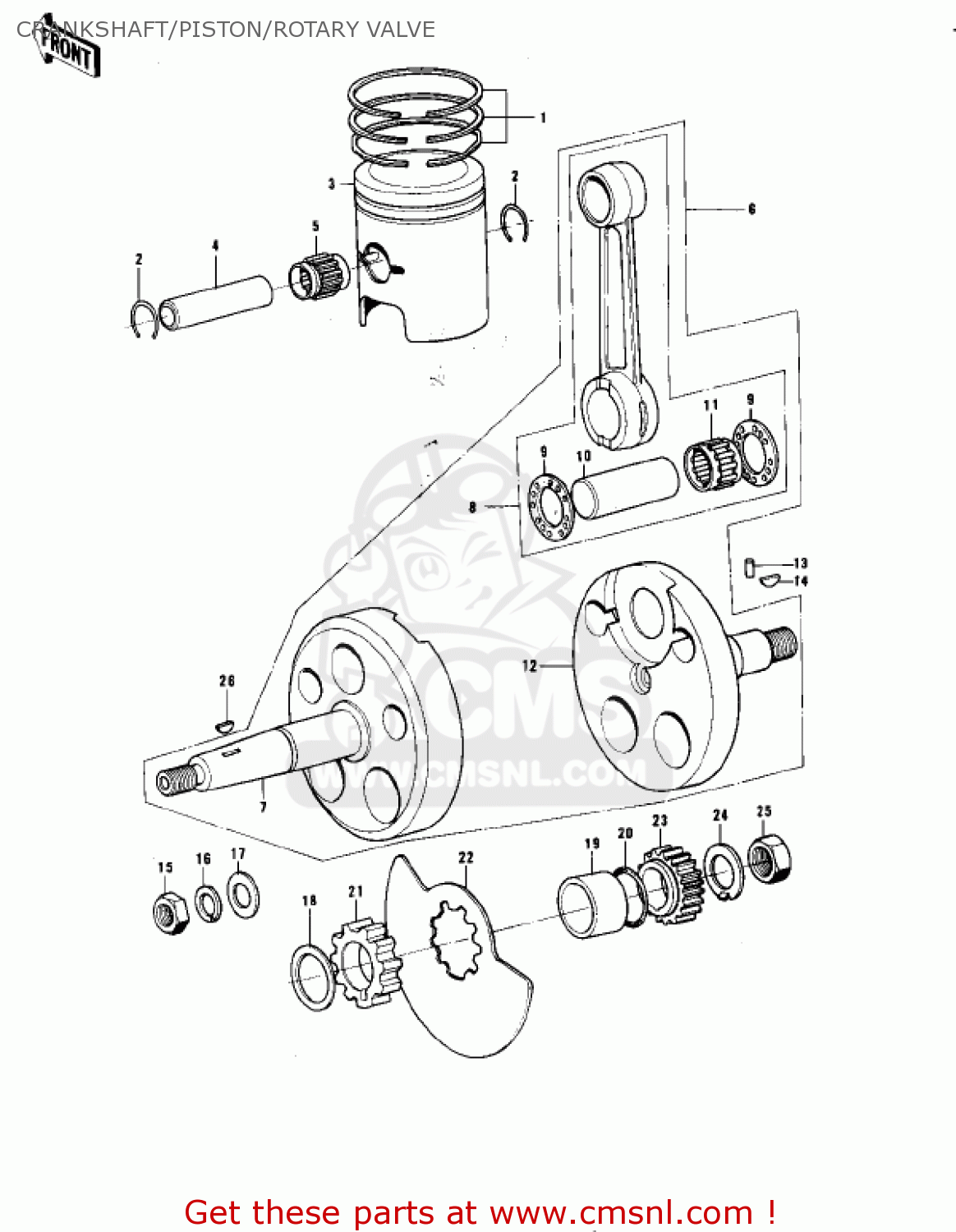

CRANKSHAFT/PISTON/ROTARY VALVE

ref

part #

description

quantity

1

13008058
ref: 1

RING-SET-PISTON,STD

€ 56.00

2

92036003
ref: 2

CIRCLIP-PISTON PIN

€ 0.50

3

13001074
ref: 3

PISTON-ENGINE,STD

€ 66.00

4

13002018
ref: 4

PIN-PISTON

€ 22.50

5

13033034
ref: 5
KTV141822EG01-B2

BEARING-NEEDLE,R1422P

€ 29.00

6

13036049
ref: 6

CRANK & CONROD ASSY

€ 528.50

7

13037038
ref: 7

CRANKSHAFT,L.H

€ 100.50

8

13044039
ref: 8

CONNECTING ROD SET

€ 186.00

9

92026011
ref: 9

SPACER,22.5X37X1.0

€ 6.50

10

13035022
ref: 10

CRANK PIN

€ 17.50

11

13034042
ref: 11
72VS1925

BEARING-NEEDLE,22VS29

€ 18.00

12

13038034
ref: 12

CRANKSHAFT,R.H

€ 287.00

13

610A0410
ref: 13

ROLLER,4X10

€ 2.50

14

92038003
ref: 14

WOODRUFF KEY-PRY PINI

€ 1.50

15

92015043
ref: 15

NUT,14MM

€ 3.50

16

461F1400
ref: 16

WASHER-SPRING,14MM

€ 0.50

17

92022172
ref: 17

WASHER,14.5X25X3.6

€ 6.50

18

92027118
ref: 18

COLLAR-CRANKSHAFT

€ 2.50

19

921431370
ref: 19

COLLAR,25X32X10.5

€ 9.50

20

92055018
ref: 20

RING-O,22MM

€ 2.50

21

92027242
ref: 21

COLLAR,CRANKSHAFT

€ 19.00

22

12002028
ref: 22

VALVE-ROTARY

€ 17.50

23

13121027
ref: 23

PINION,PRIMARY

€ 58.50

24

92024067
ref: 24

WASHER,LOCK

€ 2.00

25

92015019
ref: 25

NUT,18MM

€ 4.00

26

92038001
ref: 26

WOODRUFF KEY

€ 3.00
