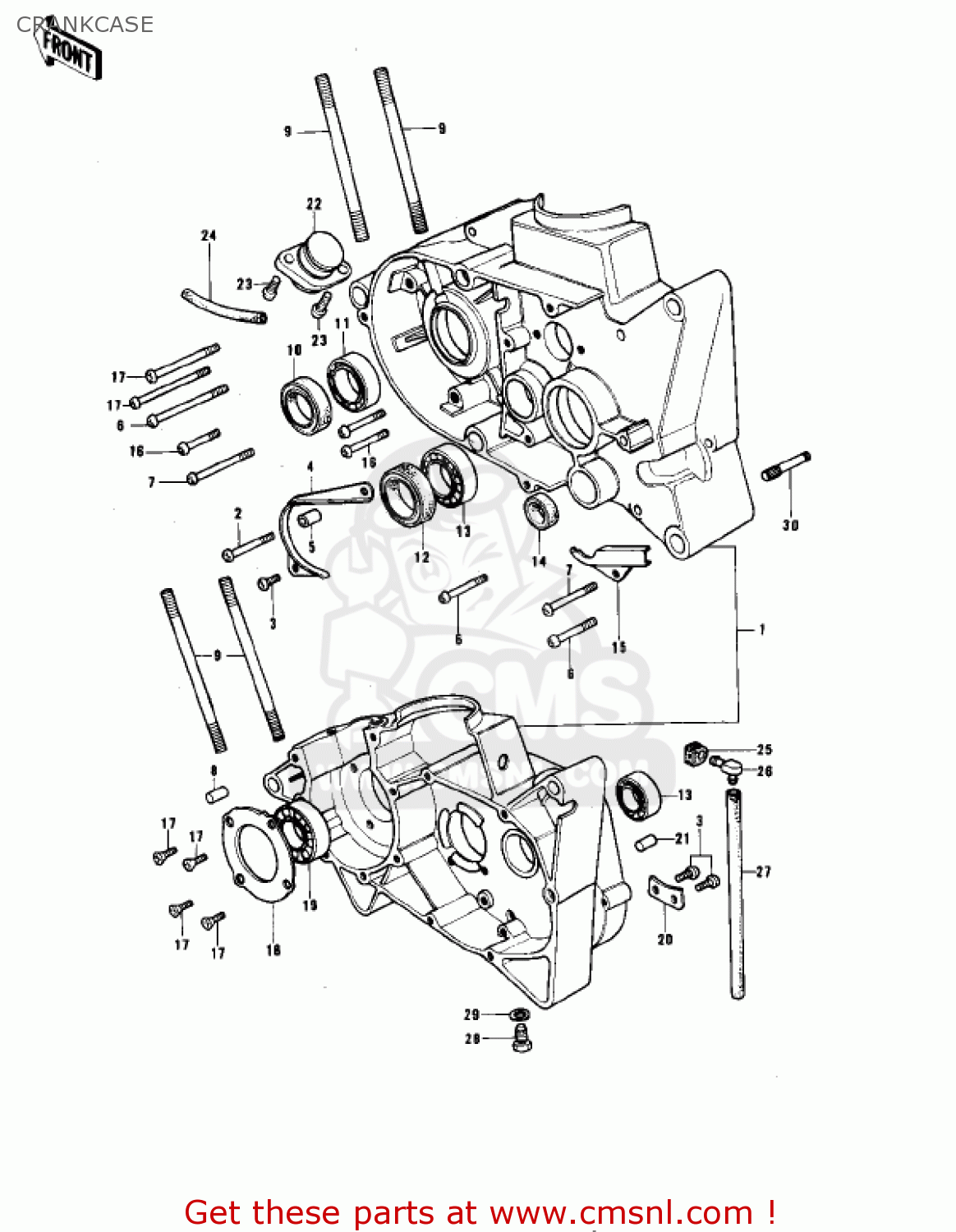

CRANKCASE

ref

part #

description

quantity

1

1400107421
ref: 1
FLAT BLACK

CRANKCASE SET,F.BLACK

€ 476.50

2

220B0685
ref: 2

SCREW-PAN HEAD,6X85

€ 3.50

3

220B0612
ref: 3

SCREW-PAN HEAD,6X12

€ 1.00

4

14077002
ref: 4

GUIDE-CHAIN

€ 7.50

5

92027169
ref: 5

COLLAR,6.8X10X16

€ 4.00

6

220B0655
ref: 6

SCREW-PAN HEAD,6X55

€ 2.50

7

220B0665
ref: 7

SCREW-PAN HEAD,6X65

€ 2.50

8

920431037
ref: 8

PIN,DOWEL,10X8.2X14

€ 0.50

9

172G0875
ref: 9

STUD,8X75

€ 4.50

10

920491250
ref: 10

SEAL-OIL

€ 12.00

11

601B6205
ref: 11

BEARING-BALL,#6205C3

€ 14.00

12

92050039
ref: 12

OIL SEAL SC30426

€ 9.00

13

920451046
ref: 13

BEARING-BALL,6204C3

€ 22.00

14

92049004
ref: 14

OIL SEAL SB12205

€ 6.00

15

14076002
ref: 15

COVER-WIRING HARNESS

€ 2.50

16

220B0640
ref: 16

SCREW-PAN HEAD,6X40

€ 2.00

17

221B0616
ref: 17

SCREW-CNTSNK HD,6X16

€ 0.50

18

14014021
ref: 18

HOLDER-CRANK BEARING

€ 2.00

19

601B6305
ref: 19

BEARING-BALL,#6305C3

€ 30.00

20

14014022
ref: 20

HOLDER-MISSION BERNG

€ 2.00

21

551A0816
ref: 21

PIN-DOWEL,8X16

€ 0.50

22

16137002
ref: 22

PUMP,FUEL DRIN

€ 69.00

23

220B0616
ref: 23

SCREW-PAN HEAD,6X16

€ 2.50

24

92059031
ref: 24

PIPE-FUEL OVERFLOW

€ 1.50

25

92071042
ref: 25

GROMMET

€ 2.50

26

140691001
ref: 26

BREATHER

€ 17.50

27

92059061
ref: 27

PIPE-BREATHER

€ 3.00

28

92067001
ref: 28

PLUG-OIL DRAIN

€ 3.00

29

92065058
ref: 29

GASKET, 10,5X16X1 (NAS)

€ 2.50

30

92043117
ref: 30

PIN,KICK PEDAL

€ 5.50

all assemblies
