FRONT FORK
KE175-B2 KE175 1977 USA CANADA / MPH KPH

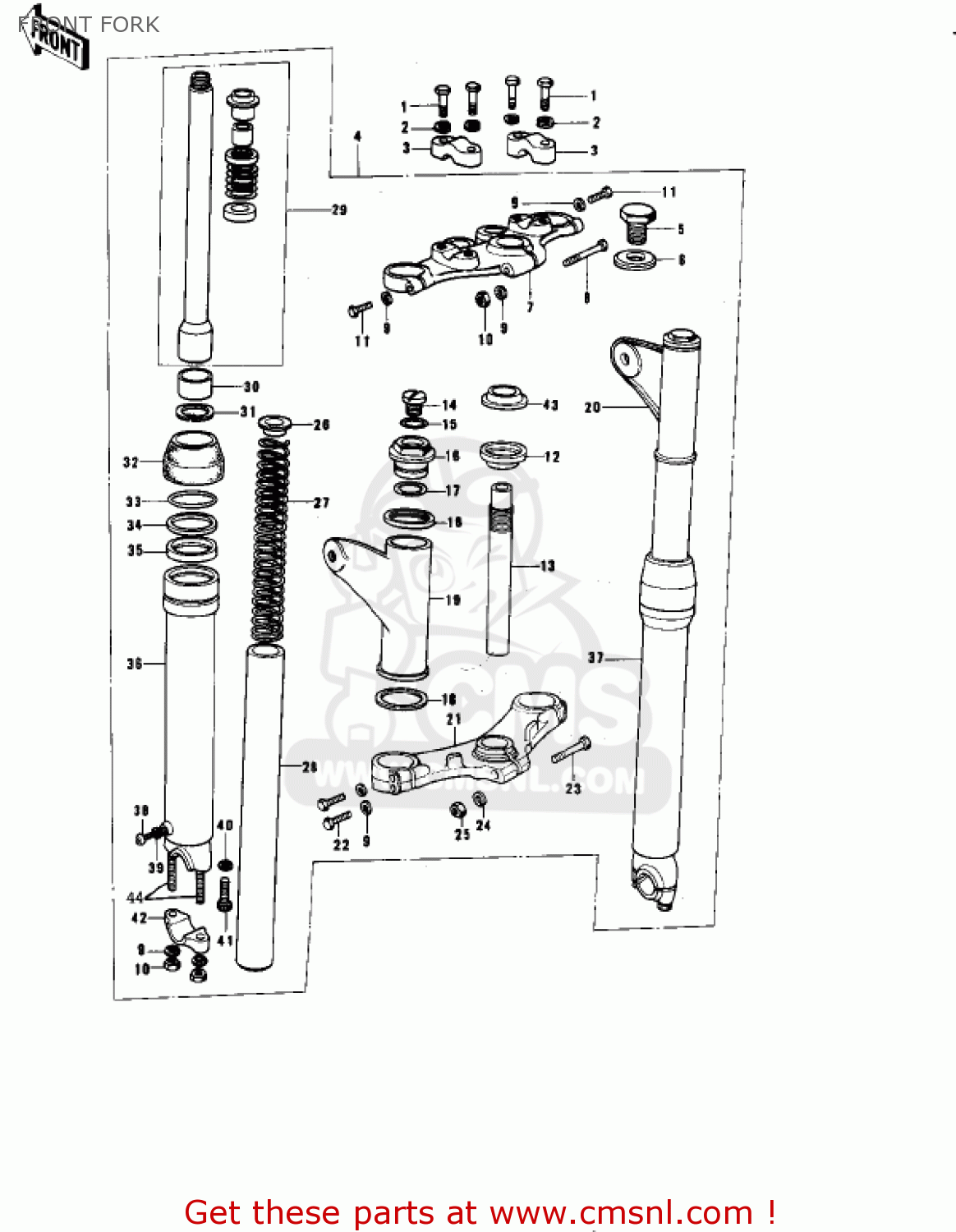

Front fork diagram KE175-B2 KE175 1977 USA CANADA / MPH KPH
FRONT FORK KE175-B2 KE175 1977 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
920011405
ref: 1
BOLT,8X38
€ 10.00
2
461F0800
ref: 2
WASHER-SPRING,8MM
€ 0.50
3
46012014
ref: 3
HOLDER-HANDLE
€ 15.50
4
44001171
ref: 4
FRONT FORK
€ 1,569.50
5
44041007
ref: 5
BOLT-STRNG STEM HEAD
€ 11.50
6
44043016
ref: 6
WASHER,FORK UPPER HOL
€ 7.00
7
44039068
ref: 7
HEAD,STEERING STEM
€ 78.00
8
44041065
ref: 8
BOLT,FORK TOP
€ 18.50
9
461F0800
ref: 9
WASHER-SPRING,8MM
€ 0.50
10
311B0800
ref: 10
NUT,8MM
€ 0.50
11
44041044
ref: 11
BOLT-STEERING STEM HD
€ 6.50
12
44010020
ref: 12
DUST SHIELD-STRNG STM
€ 2.50
13
44052011
ref: 13
SHAFT,STEERING STEM
€ 45.50
14
44041082
ref: 14
SCREW,FORK DRIN
€ 3.00
15
44046024
ref: 15
'O' RING
€ 1.00
16
44032013
ref: 16
BOLT,FORK TOP
€ 14.50
17
44046013
ref: 17
'O'RING,FORK FIT BOLT
€ 3.50
18
44045055
ref: 18
GASKET FORK COVER (NAS)
€ 3.00
19
44033075
ref: 19
FORK COVER,LH
€ 140.00
20
44034075
ref: 20
FORK COVER,RH
€ 140.00
21
44038010
ref: 21
STEM,STEERING
€ 191.50
22
110N0835
ref: 22
BOLT, HEX HEAD, 8X35
€ 1.50
23
44041042
ref: 23
BOLT-STEERING STEM HD
€ 3.00
24
461F1000
ref: 24
WASHER-SPRING,10MM
€ 0.50
25
311B1000
ref: 25
NUT,10MM
€ 0.50
26
44028038
ref: 26
GUIDE,FORK SPRING
€ 3.50
27
44026069
ref: 27
SPRING,FORK INNER
€ 19.00
28
44013053
ref: 28
TUBE,FORK INNER
€ 86.00
29
44022036
ref: 29
CYLINDER,FORK
€ 39.00
30
44018010
ref: 30
PISTON,FORK CYLINDER
€ 5.50
31
481J2600
ref: 31
CIRCLIP,26MM
€ 1.50
32
44010033
ref: 32
DUST SHIELD FORK
€ 17.00
33
44044022
ref: 33
CIRCLIP,FORK OUTER
€ 1.50
34
44043059
ref: 34
WASHER,FORK OUT TUBE
€ 1.50
35
44009025
ref: 35
OIL SEAL,FORK
€ 16.50
36
44005062
ref: 36
TUBE,L.H FORK OUTER
€ 139.50
37
44006060
ref: 37
TUBE,R.H FORK OUTER
€ 133.00
38
220B0408
ref: 38
SCREW-PAN-CROS
€ 0.50
39
44045002
ref: 39
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
40
44045057
ref: 40
GASKET (NAS)
€ 3.00
41
44041040
ref: 41
BOLT-FORK CYLINDER
€ 4.50
42
44063013
ref: 42
HOLDER,FRONT AXLE
€ 14.00
43
92047010
ref: 43
CONE-STERNG BERG LOW
€ 10.00
44
172G0830
ref: 44
STUD,8X30
€ 1.50
