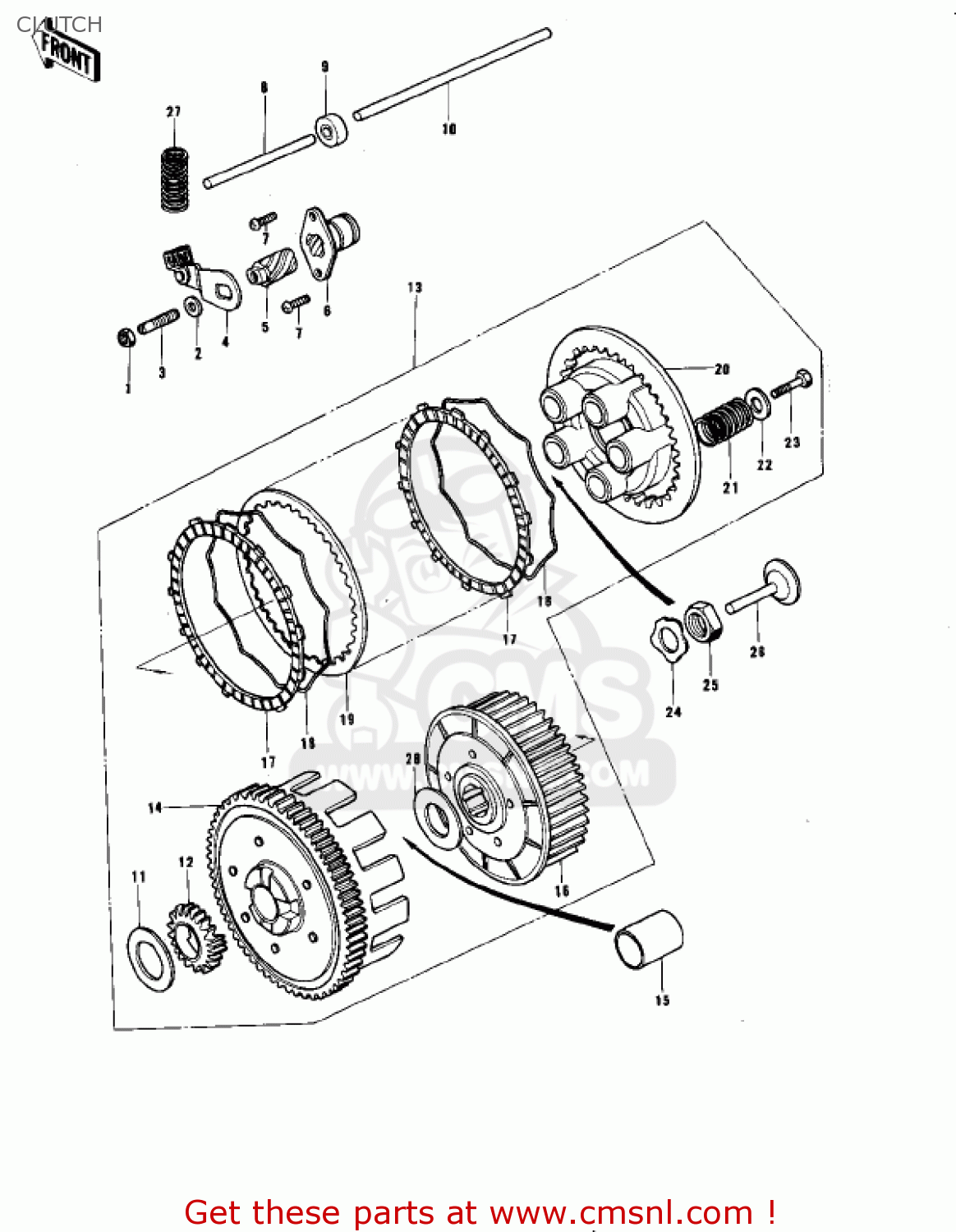

CLUTCH

ref

part #

description

quantity

1

311B0600
ref: 1

NUT,6MM

€ 0.50

2

411B0600
ref: 2

WASHER-PLAIN,6MM

€ 0.50

3

291H0624
ref: 3

SCREW,SLOTTED,6X24

€ 5.50

4

13102023
ref: 4

LEVER,CLUTCH RELEASE

€ 5.50

5

13104017
ref: 5

INNER,CLUTCH RELEASE

€ 21.00

6

13118014
ref: 6

OUTER,CLUTCH RELEASE

€ 9.00

7

220B0614
ref: 7

SCREW-PAN HEAD,6X14

€ 2.00

8

13116018
ref: 8
L=70M/M

ROD-CLUTCH PUSH,SHORT

€ 8.50

9

92052010
ref: 9

OIL SEAL TB7246

€ 10.00

10

13116017
ref: 10
L=126.5M/M

ROD-CLUTCH PUSH,LONG

€ 10.00

11

92022168
ref: 11

WASHER-CLUTCH THRUST

€ 6.50

12

13075006
ref: 12

GEAR-SPUR,KICKSTARTER

€ 36.00

13

13081084
ref: 13

CLUTCH ASSY

€ 314.50

13

13081084
ref: 13
KE175-B2/-B3

CLUTCH ASSY

€ 314.50

14

130951024
ref: 14

HOUSING-COMP-CLUTCH

€ 277.00

14

130951024
ref: 14
KE175-B2/-B3

HOUSING-COMP-CLUTCH

€ 277.00

15

92028014
ref: 15

BUSH-CLUTCH

€ 27.50

16

13087032
ref: 16

HUB,CLUTCH

€ 46.50

17

130881015
ref: 17

PLATE-FRICTION (NAS)

€ 11.50

18

13229002
ref: 18

SPRING,CLUTCH STEEL

€ 7.50

19

13089003
ref: 19

PLATE-CLUTCH,STEEL (NAS)

€ 7.50

20

13187004
ref: 20

PLATE-CLUTCH OPERATIN (NAS)

€ 24.50

21

92081080
ref: 21

SPRING-CLUTCH

€ 9.50

22

92022167
ref: 22

WASHER-PLAIN,5MM

€ 1.50

23

92003078
ref: 23

BOLT,5X18

€ 2.00

24

92024046
ref: 24

WASHER,LOCK,14MM

€ 2.00

25

315B1400
ref: 25

NUT,14MM

€ 1.00

26

13116016
ref: 26

ROD-PUSH,CLUTCH SPRIN

€ 11.50

27

92081096
ref: 27

SPRING-CLUTCH RELEASE

€ 3.50

28

92022270
ref: 28

WASHER,PLAIN

€ 7.00

28

92022168
ref: 28
KE175-B2/-B3

WASHER-CLUTCH THRUST

€ 6.50

all assemblies
