CARBURETOR
KE175-B2 KE175 1977 USA CANADA / MPH KPH

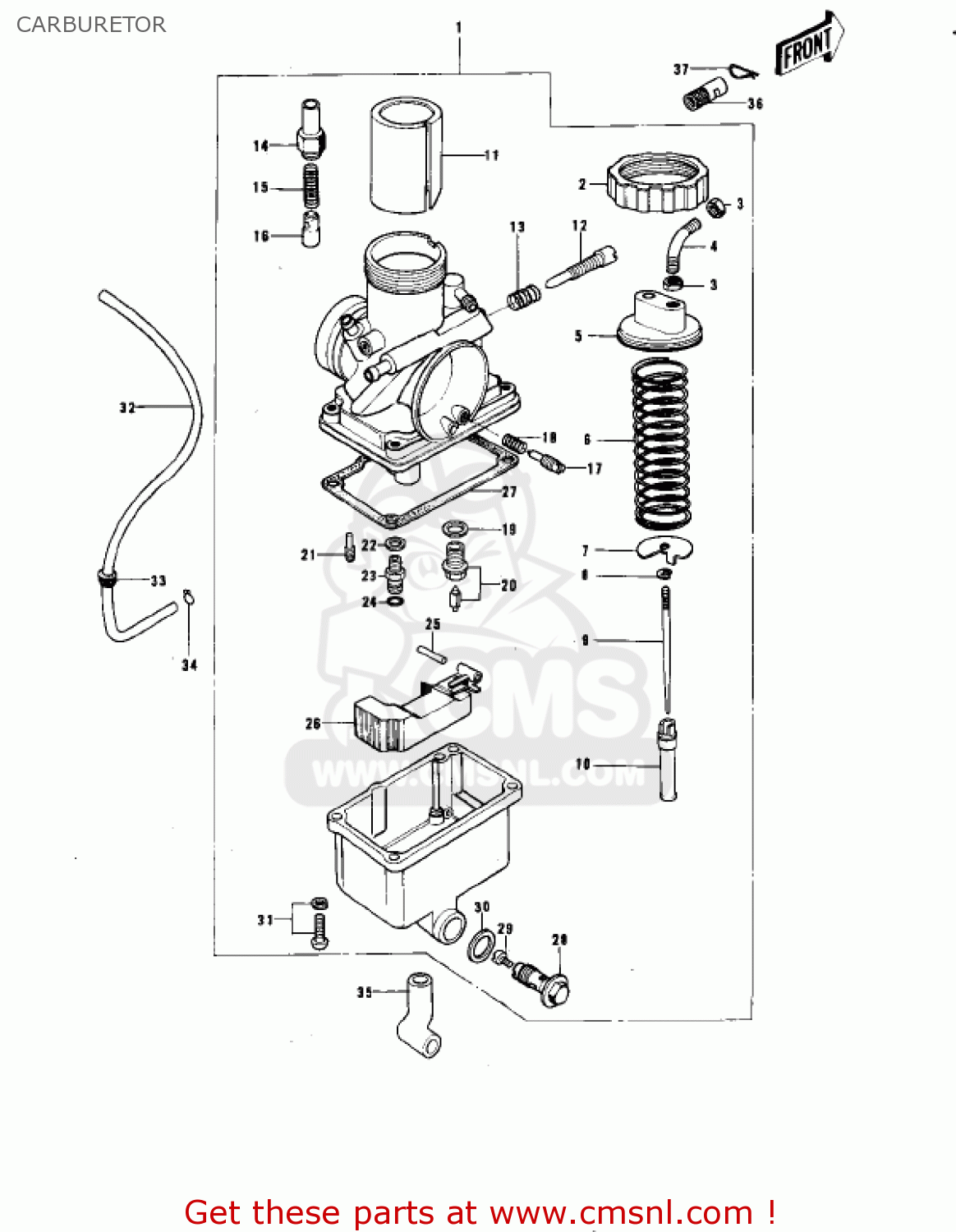

Carburetor diagram KE175-B2 KE175 1977 USA CANADA / MPH KPH
CARBURETOR KE175-B2 KE175 1977 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
16001241
ref: 1
VM26SC
CARBURETOR ASSY
€ 355.50
2
16004011
ref: 2
CAP-MIXING CHAMBER
€ 6.00
3
16003004
ref: 3
NUT-CABLE ADJUST LOCK
€ 4.50
4
16077009
ref: 4
GUIDE,CABLE
€ 5.50
5
16005025
ref: 5
TOP,MIXING CHAMBER
€ 8.50
6
16006029
ref: 6
SPRING,THROTTLE VALVE
€ 13.00
6
16006031
ref: 6
KE175-B2/-B3
SPRING,THROTTLE VALVE
€ 3.50
7
16007025
ref: 7
SPRING,THRTTL VALVES
€ 6.00
8
16008010
ref: 8
CLAMP,E-TYPE
€ 5.00
9
16009040
ref: 9
NEEDLE-JET,4EJ3
€ 28.00
10
16017094
ref: 10
NEEDLE JET,O-8
€ 19.00
10
16017094
ref: 10
KE175-B2/-B3
NEEDLE JET,O-8
€ 19.00
11
16025079
ref: 11
VALVE,THROTTLE,CA2.5
€ 45.50
12
16021023
ref: 12
SCREW-THROTTLE STOP
€ 12.50
13
16022005
ref: 13
SPRING-THR STOP SCREW
€ 5.50
14
16012017
ref: 14
CAP-STARTER PLUNGER
€ 11.50
15
16013003
ref: 15
SPRING-STARTER PLUNG
€ 4.00
16
16016002
ref: 16
PLUNGER,STARTER
€ 20.00
17
16014002
ref: 17
SCREW-PILOT AIR
€ 11.00
18
16022007
ref: 18
SPRING-THR STOP SCREW
€ 5.50
19
16029004
ref: 19
WASHER-FLOAT VLV SEAT
€ 2.50
20
16030025
ref: 20
VALVE-FLOAT,#2.6
€ 82.00
21
92064022
ref: 21
PILOT JET #30 ISO
€ 11.50
22
16034001
ref: 22
WASHER-MAIN JET
€ 2.50
23
16065008
ref: 23
HOLDER,JET NEEDLE
€ 12.00
24
92055044
ref: 24
'O' RING
€ 7.00
25
16032006
ref: 25
PIN,FLOAT
€ 4.00
26
16031026
ref: 26
FLOAT
€ 40.00
27
16019023
ref: 27
GASKET,FLOAT CHAMBER (NAS)
€ 10.00
28
92001097
ref: 28
BOLT-BANJO
€ 15.50
29
920631033
ref: 29
STD
JET-MAIN,#A100R
€ 17.00
29
920631031
ref: 29
OPT
MAIN JET,#95R
€ 10.00
29
920631035
ref: 29
OPT
MAIN JET,#97.5R
€ 10.00
29
920631028
ref: 29
OPT
JET-MAIN,#A102.5R
€ 10.00
29
920631042
ref: 29
OPT
JET-MAIN,#A105R
€ 10.50
29
92063073
ref: 29
OPT
JET-MAIN,#107.5R
€ 9.50
30
16034005
ref: 30
WASHER,BANJO BOLT (MCA)
€ 3.00
31
223B0414
ref: 31
SCREW PAN-WS-CROS
€ 2.50
32
92059072
ref: 32
TUBE,4.5X9X545
€ 22.00
33
92071038
ref: 33
GROMMET,PIPE
€ 2.50
34
92037010
ref: 34
CLAMP-FUEL PIPE
€ 2.50
35
16136011
ref: 35
GROMMET,OVERFLOW PIPE
€ 5.50
36
16002016
ref: 36
ADJUSTER,CABLE
€ 7.00
37
92036018
ref: 37
CIRCLIP
€ 2.50
