KICKSTARTER MECHANISM

KE175-B2 KE175 1977 USA CANADA / MPH KPH

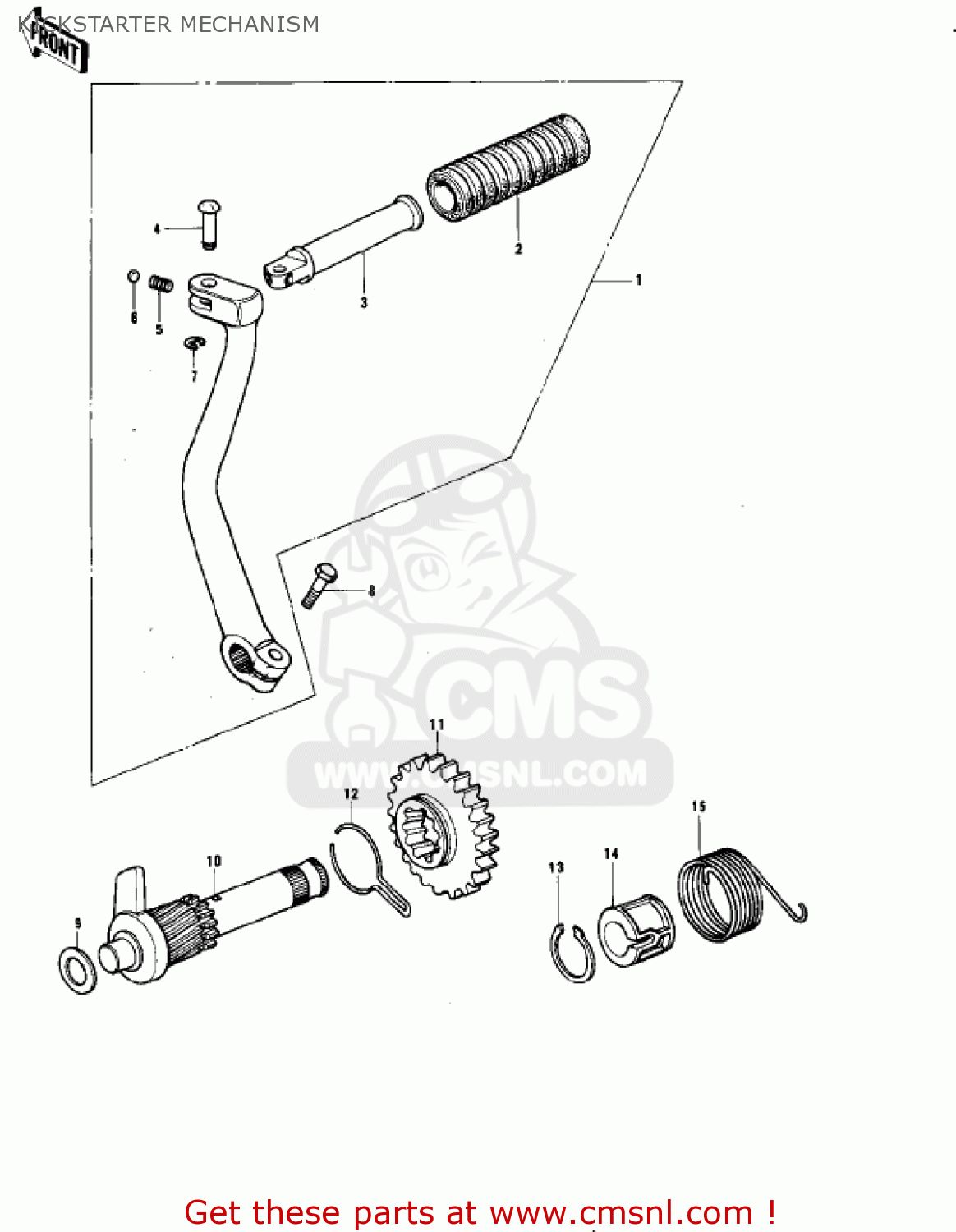

Kickstarter mechanism diagram KE175-B2 KE175 1977 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

13064020
ref: 1

PEDAL ASSY,KICKSTARTE

€ 72.50

13063002
ref: 2

RUBBER-KICK PEDAL

€ 3.00

13060003
ref: 3

LEVER,KICK PEDAL

€ 12.50

92043088
ref: 4

PIN,KICK PEDAL

€ 2.00

92081049
ref: 5

SPRING,KICK LEVER

€ 2.50

600A1100
ref: 6

BALL-STEEL,11/32

€ 0.50

482K5000
ref: 7

CIRCLIP,5MM

€ 2.00

115G0825
ref: 8

BOLT-HEX,HEAD,8X25

€ 3.00

92022150
ref: 9

SHIM-KICK SHAFT,0.5T

€ 2.00

13245010
ref: 10

SHAFT,KICKSTARTER

€ 27.00

13068026
ref: 11
34T

GEAR-KICKSTARTER

€ 23.00

13077002
ref: 12

HOLDER-KICK GEAR

€ 2.50

92033022
ref: 13

CIRCLIP

€ 6.50

13070010
ref: 14

GUIDE,KICK SPRING

€ 7.00

92082005
ref: 15

SPRING,KICKSTARTER

€ 13.50
