REAR HUB/BRAKE/CHAIN

KE175-B2 KE175 1977 USA CANADA / MPH KPH

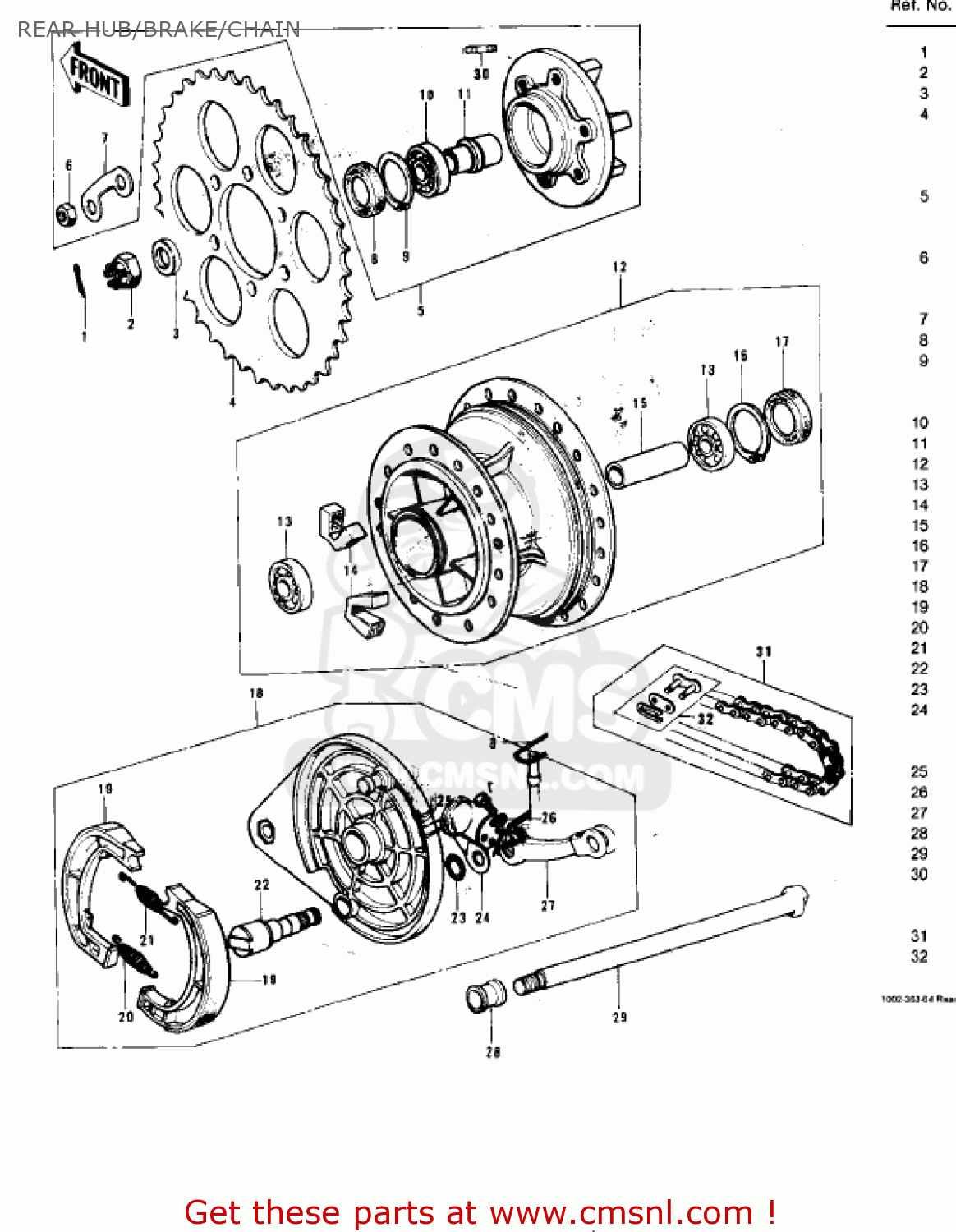

Rear hub/brake/chain diagram KE175-B2 KE175 1977 USA CANADA / MPH KPH

REAR HUB/BRAKE/CHAIN KE175-B2 KE175 1977 USA CANADA / MPH KPH
REAR HUB/BRAKE/CHAIN KE175-B2 KE175 1977 USA CANADA / MPH KPH
REAR HUB/BRAKE/CHAIN KE175-B2 KE175 1977 USA CANADA / MPH KPH
prices are in EUR
ref
part #
description
quantity
1
550D4035
ref: 1
PIN-COTTER,4.0X35
550D4035
€ 1.00
2
92103006
ref: 2
NUT,CASTLE,14MM
92103006
€ 9.00
3
42032058
ref: 3
COLLAR,15X26X14
42032058
€ 18.50
4
42041159
ref: 4
STD
REAR SPROCKET,48T
42041159
€ 35.00
4
42041136
ref: 4
OPT
REAR SPROCKET,47T
42041136
€ 36.00
4
42041146
ref: 4
OPT
REAR SPROCKET,50T
42041146
€ 36.50
4
42041147
ref: 4
OPT
REAR SPROCKET,54T
42041147
€ 55.00
5
42008031
ref: 5
KE175-B1
COUPRING ASSY,RR HUB
€ 115.50
5
42008031
ref: 5
KE175-B2/B3
COUPRING ASSY,RR HUB
€ 115.50
6
311B0800
ref: 6
WHN EXH USE 311B0800
NUT,8MM
311B0800
€ 0.50
6
311B0800
ref: 6
NUT,8MM
311B0800
€ 0.50
7
92088019
ref: 7
WASHER,SPROCKET LOCK
92088019
€ 4.00
8
92050060
ref: 8
OIL SEAL,RR HUB BRNK
92050060
€ 12.00
9
920331041
ref: 9
WHN EXH USE 92033-10
CIRCLIP,42MM
920331041
€ 4.00
9
920331041
ref: 9
CIRCLIP,42MM
920331041
€ 4.00
10
601B6004
ref: 10
BEARING-BALL,#6004C3
601B6004
€ 10.50
11
42036018
ref: 11
SLEEVE,RR HUB COUPLN
42036018
€ 19.50
12
4200504680
ref: 12
DRUM ASSY,RR BRK,BUFF
€ 205.00
13
601B6202
ref: 13
BEARING-BALL,#6202C3
601B6202
€ 14.50
14
42014023
ref: 14
DAMPER,RR HUB SHOCK
42014023
€ 10.00
15
42010029
ref: 15
COLLAR,L=60
42010029
€ 11.00
16
481J3500
ref: 16
CIRCLIP-TYPE-C,35MM
481J3500
€ 1.00
17
654A223508
ref: 17
OIL SEAL
654A223508
€ 7.50
18
4200607280
ref: 18
PANEL ASSY,RR BK,BUFF
4200607280
€ 161.50
19
42019010
ref: 19
SHOE,BRAKE (MCA)
42019010
€ 26.00
20
920811550
ref: 20
SPRING,BRAKE SHOE
920811550
€ 6.00
21
920811766
ref: 21
SPRING,BRAKE SHOE
920811766
€ 5.50
22
42026025
ref: 22
CAM SHAFT,REAR BRAKE
42026025
€ 13.50
23
92055004
ref: 23
RING-O,BRAKE CAM
92055004
€ 3.00
24
41085002
ref: 24
WHN EXH USE 41085-00
INDICATOR,BRAKE SHOE
41085002
€ 2.50
24
41085002
ref: 24
INDICATOR,BRAKE SHOE
41085002
€ 2.50
25
112B0622
ref: 25
BOLT, 6X22
€ 2.50
26
410B0600
ref: 26
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
27
42029030
ref: 27
LEVER-BRAKE CAM
42029030
€ 44.50
28
42032057
ref: 28
COLLAR,REAR AXLE,R.H
42032057
€ 12.00
29
42031046
ref: 29
AXLE,REAR
42031046
€ 45.50
30
920041015
ref: 30
WHN EXH USE 92004-10
STUD,8X17
920041015
€ 2.50
30
920041015
ref: 30
STUD,8X17
920041015
€ 2.50
31
92057098
ref: 31
EK 428SH-G
DRIVE CHAIN,428X120H
€ 253.00
32
920581015
ref: 32
JOINT-CHAIN,EK428SH
920581015
€ 3.50
