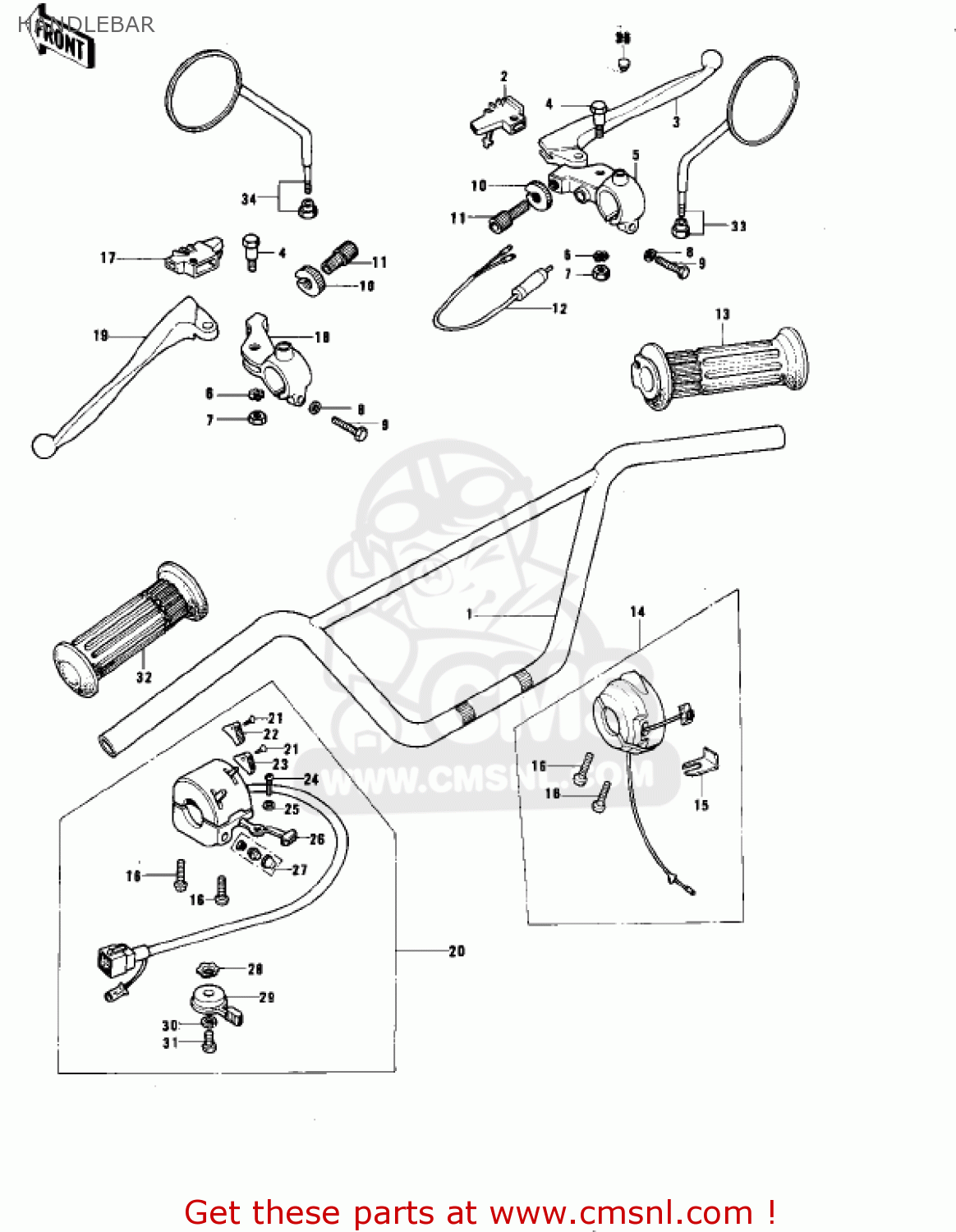

HANDLEBAR

ref

part #

description

quantity

1

46004033
ref: 1

HANDLE

€ 130.00

2

490061017
ref: 2

BOOTS,LEVER HOLDER

€ 13.00

3

46058004
ref: 3

LEVER-GRIP,FRONT BRAK

€ 24.00

4

92007046
ref: 4

BOLT,HEX HEAD,5X22

€ 4.50

5

4606000921
ref: 5

HOLDER,BRAKE LEVER,FR

€ 27.00

6

464H0500
ref: 6
N/R KE175-B2/-B3

WASHER-LOCK,5MM

€ 0.50

7

92019014
ref: 7

NUT-LOCK,5M/M

€ 2.50

8

411B0600
ref: 8

WASHER-PLAIN,6MM

€ 0.50

9

110N0625
ref: 9

BOLT-HEX HEAD,6X25

€ 3.50

10

46056005
ref: 10

NUT-LOCK

€ 6.00

11

46055003
ref: 11

SCREW-CABLE ADJUST

€ 11.50

12

27021004
ref: 12

SWITCH,FR BRAKE LAMP

€ 23.00

13

46019039
ref: 13

GRIP-ASSY,THROTTLE

€ 30.00

14

46018047
ref: 14

CASE ASSY,R.H

€ 74.50

15

46037023
ref: 15

HOLDER,CONTROL CABLE

€ 4.50

16

220B0525
ref: 16

SCREW-PAN-CROS,5X25

€ 2.50

17

490061017
ref: 17

BOOTS,LEVER HOLDER

€ 13.00

18

4609401121
ref: 18

HOLDER-CLUTCH LEV,BLK

€ 23.00

19

46092015
ref: 19

LEVER-GRIP,CLUTCH

€ 11.50

20

46091050
ref: 20
USE FOR U.S.A. MARKE

CASE ASSY,L.H

€ 119.00

20

46091052
ref: 20
USE FOR CANADIAN MAR

CASE ASSEMBLY,LH

€ 131.50

21

221B0308A
ref: 21

SCREW-CNTSNK HD,3X8

€ 2.50

22

46044008
ref: 22

KNOB-L.H SWITCH,B

€ 3.00

23

46044011
ref: 23

KNOB-L.H SWITCH

€ 6.00

24

220B0305A
ref: 24

SCREW-PAN HEAD,3X5

€ 1.00

25

92095010
ref: 25

WASHER

€ 2.50

26

46044007
ref: 26

KNOB-SWITCH

€ 8.00

27

46078003
ref: 27

SWITCH ASSY LH BUTTON

€ 5.50

28

92095012
ref: 28

WASHER-LOCK

€ 3.50

29

4609600810
ref: 29
BLACK

LEVER,STARTER,BLACK

€ 17.00

30

461F0600
ref: 30

WASHER-SPRING,6MM

€ 0.50

31

112G0610
ref: 31

BOLT,6X10

€ 0.50

32

46075029
ref: 32

RUBBER,L.H GRIP

€ 9.50

33

56002020
ref: 33
OPTION

MIRROR-ASSY,RH

€ 47.50

34

56003009
ref: 34

MIRROR-ASSY,LH

€ 50.00

34

56003009
ref: 34
KE175-B2/-B3

MIRROR-ASSY,LH

€ 50.00

35

92102009
ref: 35
NOT REQUIRED FOR 560

CAP-RR VIEW MIRROR

€ 3.00

all assemblies
