TRANSMISSION ('81-'82 A2/A3)

KDX175-A3 KDX175 1982 USA CANADA

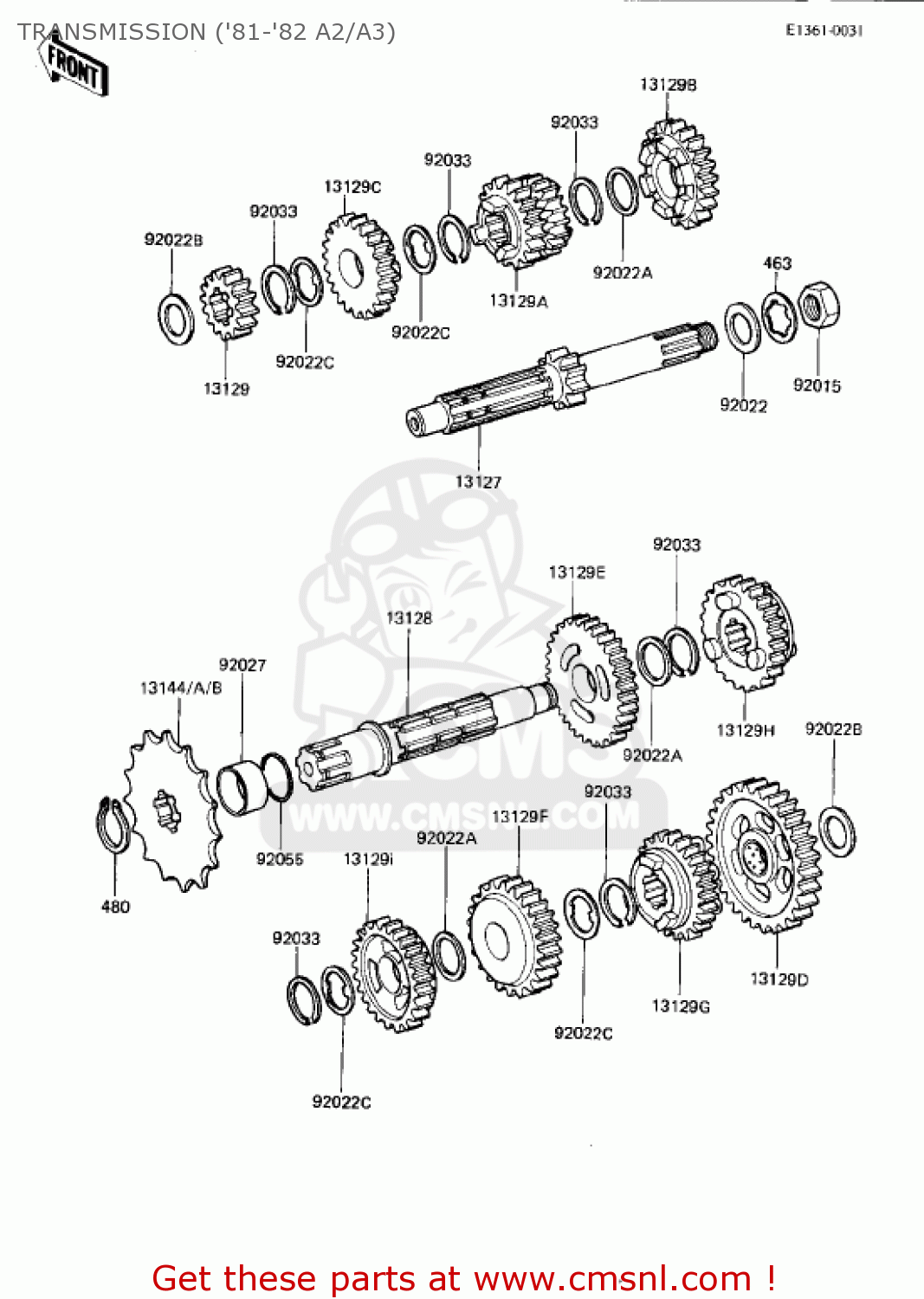

Transmission ('81-'82 a2/a3) diagram KDX175-A3 KDX175 1982 USA CANADA

TRANSMISSION ('81-'82 A2/A3) KDX175-A3 KDX175 1982 USA CANADA

TRANSMISSION ('81-'82 A2/A3) KDX175-A3 KDX175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

13127

131271026
ref: 13127

SHAFT,DRIVE

€ 90.00

13128

131281026
ref: 13128

SHAFT,OUTPUT

€ 104.00

13129

131291181
ref: 13129

GEAR,INPUT 2ND,16T

€ 69.00

13129A

131291182
ref: 13129A

3RD&4TH GEAR,DRIVE SF

€ 109.50

13129B

131291183
ref: 13129B

STH GEAR,DRIVE SHAFT

€ 75.00

13129C

131291184
ref: 13129C

TOP GEAR,DRIVE SHAFT

€ 33.00

13129D

131291185
ref: 13129D

LOW GEAR,OUTPUT SHAFT

€ 66.00

13129E

131291186
ref: 13129E

2ND GEAR,OUTPUT SHAFT

€ 101.00

13129F

131291187
ref: 13129F

3RD GEAR,OUTPUT SHAFT

€ 96.00

13129G

131291189
ref: 13129G

GEAR,OUTPUT 5TH,20T

€ 49.50

13129H

131291190
ref: 13129H

TOP GEAR,OUTPUT SHAFT

€ 69.50

13129I

131291324
ref: 13129I

GEAR-OUTPUT 4TH,25T

€ 93.00

13144

131441036
ref: 13144
(OPTION)

SPROCKET-OUTPUT,11T

€ 22.00

13144A

131441049
ref: 13144A

SPROCKET-OUTPUT,12T

€ 17.00

13144B

131441050
ref: 13144B
(OPTION)

SPROCKET-OUTPUT,13T

€ 18.00

92015

92016036
ref: 92015

NUT,16MM

€ 2.50

92022

920221277
ref: 92022

WASHER,16.8X32X1.6

€ 3.50

92022A

92022198
ref: 92022A

WASHER-PLAIN

€ 3.50

92022B

92022268
ref: 92022B

WASHER,16.3X24X1

€ 5.50

92022C

92024039
ref: 92022C

WASHER-LOCK

€ 4.00

92027

920271244
ref: 92027

COLLAR,OUTPUT SPROCKE

€ 11.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92055

92055022
ref: 92055

'O' RING

€ 4.00

463

463H1600
ref: 463

WASHER-TOOTHED,16MM

€ 3.50

480

480J2000
ref: 480

CIRCLIP-TYPE-C,20MM

€ 1.00
