FRONT FORK ('81-'82 A2/A3)
KDX175-A3 KDX175 1982 USA CANADA

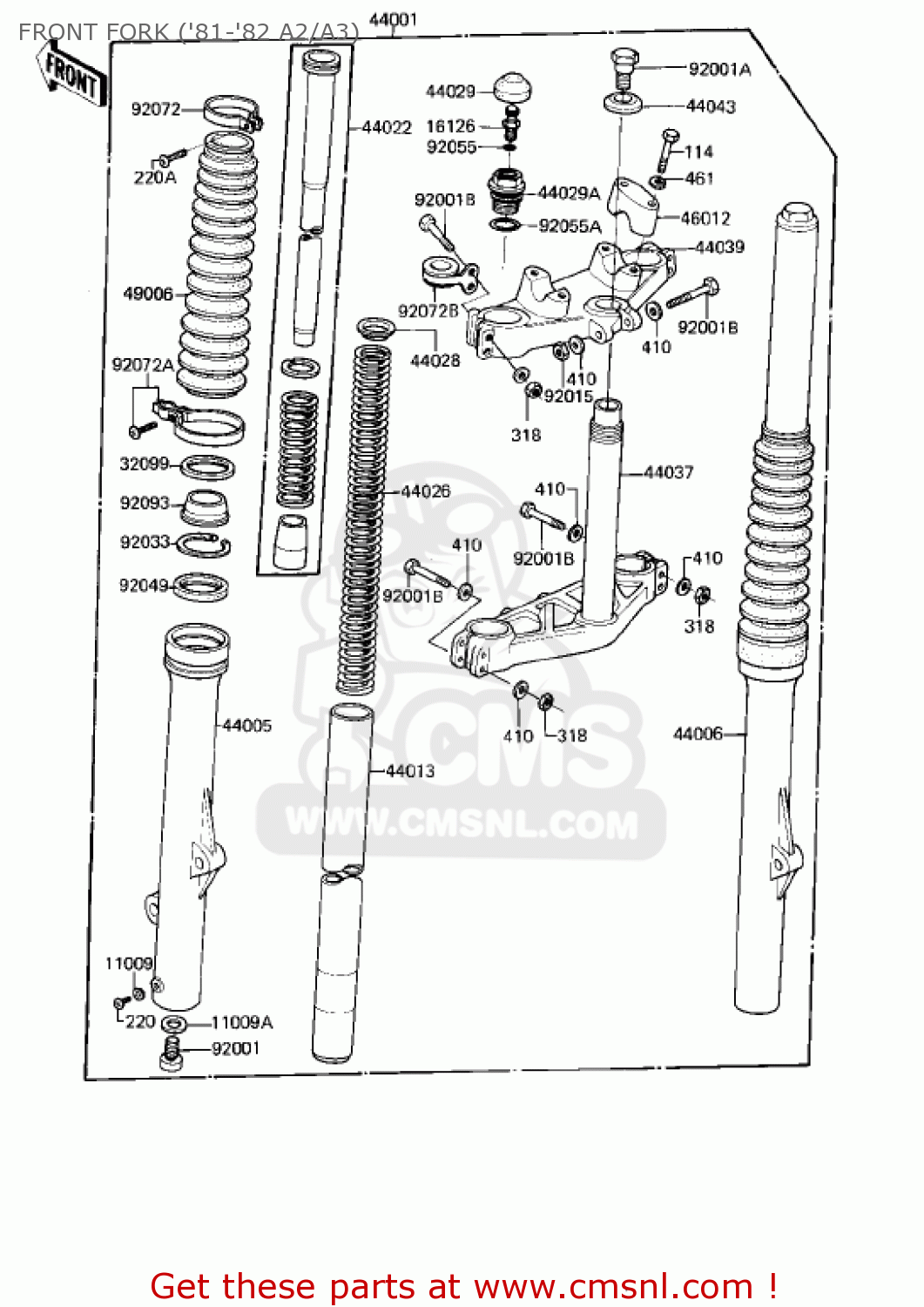

Front fork ('81-'82 a2/a3) diagram KDX175-A3 KDX175 1982 USA CANADA
FRONT FORK ('81-'82 A2/A3) KDX175-A3 KDX175 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
16126
161261003
ref: 16126
VALVE,AIR
€ 22.50
32099
320991002
ref: 32099
CASE,DUST SHIELD
€ 16.00
44001
440011256
ref: 44001
FORK-FRONT
€ 1,070.00
44005
440051030
ref: 44005
TUBE,L.H,FORK OUTER
€ 260.50
44006
440061030
ref: 44006
TUBE,R.H,FORK OUTER
€ 260.50
44013
440131026
ref: 44013
TUBE,FORK INNER
€ 159.00
44022
440221030
ref: 44022
CYLINDER ASSY,FORK
€ 81.00
44026
440261038
ref: 44026
SPRING,FORK INNER
€ 27.50
44028
440281004
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291009
ref: 44029
SEAT-FORK SPRING
€ 4.00
44029A
440291011
ref: 44029A
SEAT-FORK SPRING
€ 46.00
44037
440371021
ref: 44037
STEM,STEERING
€ 146.00
44039
440391018
ref: 44039
HEAD,STEERING STEM
€ 169.00
44043
44043052
ref: 44043
WASHER,PLAIN
€ 6.00
46012
460121003
ref: 46012
HOLDER,HANDLEBAR
€ 8.50
49006
490061009
ref: 49006
BOOTS,FORK
€ 49.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
44041065
ref: 92001A
BOLT,FORK TOP
€ 18.50
92001B
920011398
ref: 92001B
BOLT,FLANGED 8X55
€ 2.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92033
920331005
ref: 92033
RING-SNAP
€ 8.50
92049
920491009
ref: 92049
OIL SEAL,FORK OUTER
€ 16.00
92055
920551018
ref: 92055
RING-O,AIR VALVE
€ 2.50
92055A
920551051
ref: 92055A
ORING,FORK TOP CAP
€ 3.50
92072
920721008
ref: 92072
BAND,BOOTS
€ 7.50
92072A
920721011
ref: 92072A
BAND,BOOTS,L.H
€ 8.50
92072B
920721040
ref: 92072B
BAND,CABLE
€ 12.50
92093
920931007
ref: 92093
DUST SHIELD,FORK
€ 8.50
114
115G0840
ref: 114
115G0840
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0420
ref: 220A
SCREW-PAN-CROS
€ 2.00
318
318G0800
ref: 318
NUT-HEX-SMALL,8MM
€ 1.00
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
