CYLINDER HEAD/CYLINDER/REED VALV

KDX175-A3 KDX175 1982 USA CANADA

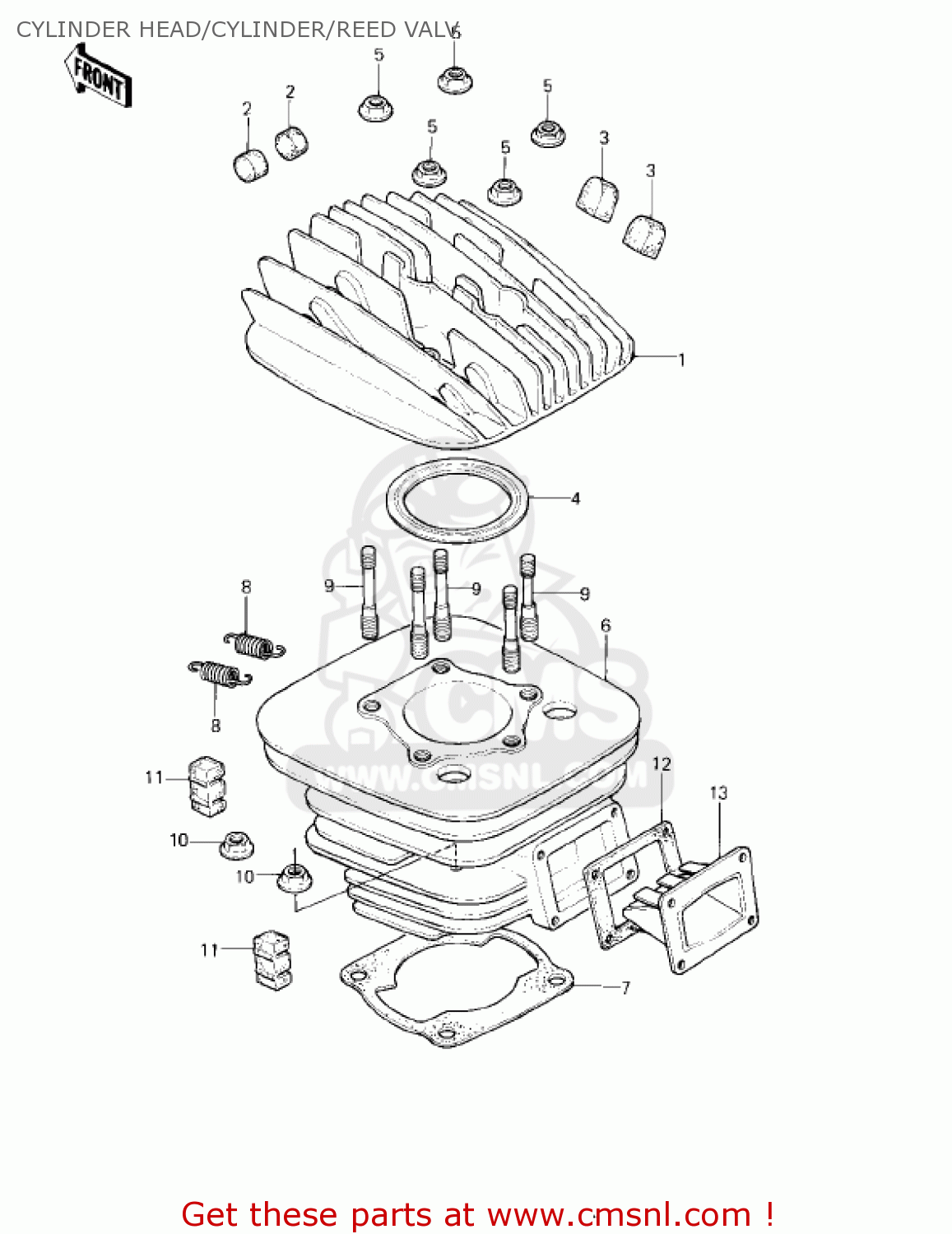

Cylinder head/cylinder/reed valv diagram KDX175-A3 KDX175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

110011052
ref: 1

CYLINDER HEAD,F.BLACK

€ 71.00

920751018
ref: 2

DAMPER,CYLINDER HEAD

€ 2.00

920751176
ref: 3

DAMPER,CYLINDER HEAD

€ 2.50

110041052
ref: 4

GASKET-HEAD,CYLINDER (NAS)

€ 13.50

920151014
ref: 5

NUT,8MM

€ 0.50

110051060
ref: 6

CYLINDER,ELECTRO-FUSE

€ 626.00

110091175
ref: 7

GASKET,CYLINDER BASE (MCA)

€ 5.50

18071003
ref: 8

SPRING,MUFFLER CONNEC

€ 7.50

920041026
ref: 9

STUD,CYLINDER

€ 4.50

920151014
ref: 10

NUT,8MM

€ 0.50

920751229
ref: 11

DAMPER,CYLINDER

€ 4.50

110091018
ref: 12

GASKET,REED VALVE (MCA)

€ 3.50

120211007
ref: 13

VALVE-ASSY-REED

€ 101.50
