ENGINE COVERS ('81-'82 A2/A3)

KDX175-A3 KDX175 1982 USA CANADA

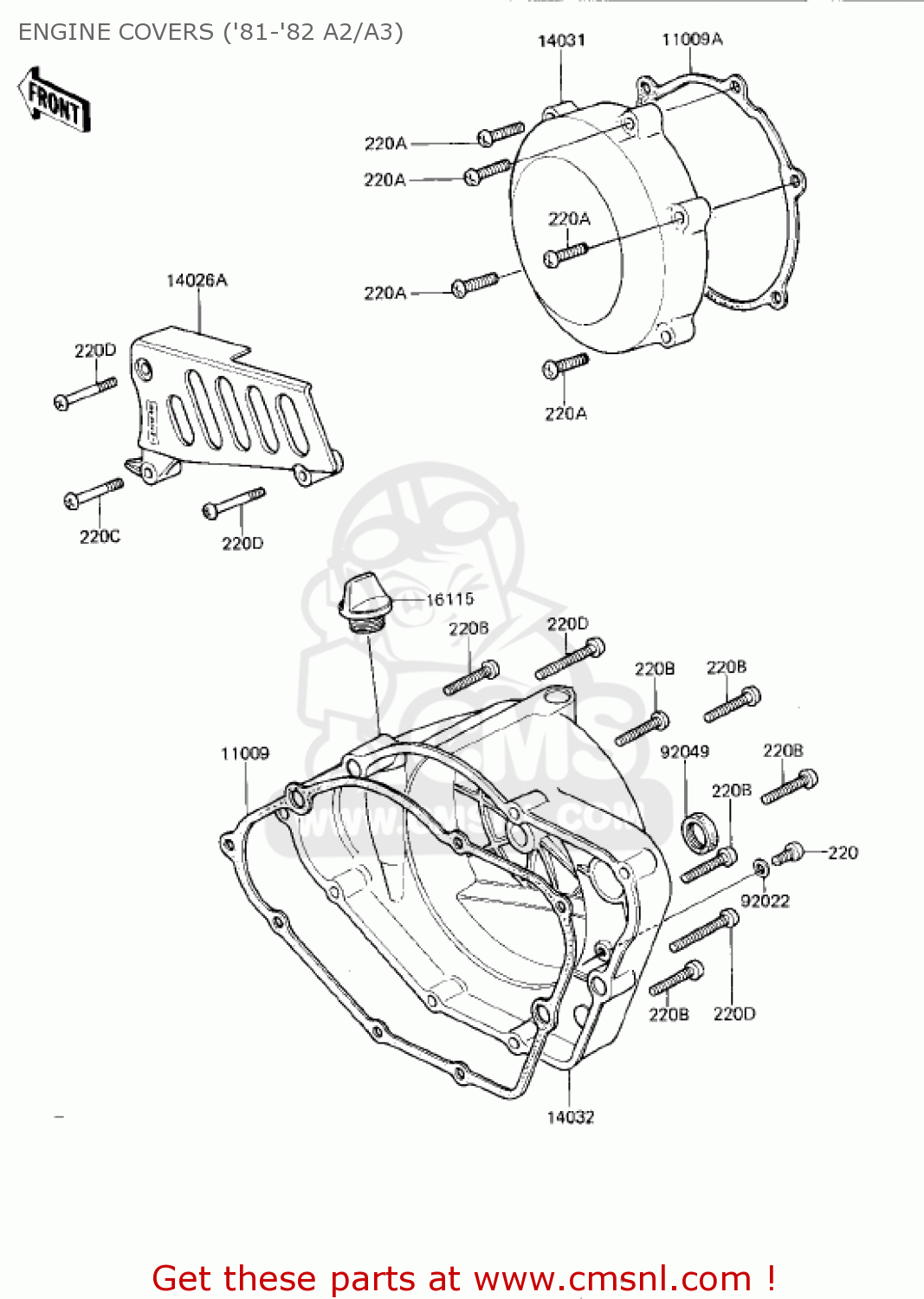

Engine covers ('81-'82 a2/a3) diagram KDX175-A3 KDX175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091040
ref: 11009

GASKET,R.H ENGINE COV (MCA)

€ 15.50

11009A

110091177
ref: 11009A

GASKET,L.H,ENG COVER (MCA)

€ 10.00

14026A

14026101221
ref: 14026A

COVER,FRONT CHAIN

€ 17.50

14031

140311048
ref: 14031

COVER,L.H ENG,F.BLACK

€ 35.50

14032

140321034
ref: 14032

COVER,R.H.ENG F.BLACK

€ 215.50

16115

16115018
ref: 16115

PLUG,OIL FILLER

€ 7.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92049

92049002
ref: 92049

OIL SEAL SB16244

€ 6.00

220

220B0608
ref: 220

SCREW-PAN HEAD,6X8

€ 0.50

220A

220B0625
ref: 220A

SCREW-PAN HEAD,6X25

€ 1.50

220B

220B0628
ref: 220B

SCREW-PAN HEAD,6X28

€ 2.50

220C

220B0635
ref: 220C

SCREW-PAN HEAD,6X35

€ 1.00

220D

220B0640
ref: 220D

SCREW-PAN HEAD,6X40

€ 2.00
