IGNITION/GENERATOR ('80 A1)

KDX175-A3 KDX175 1982 USA CANADA

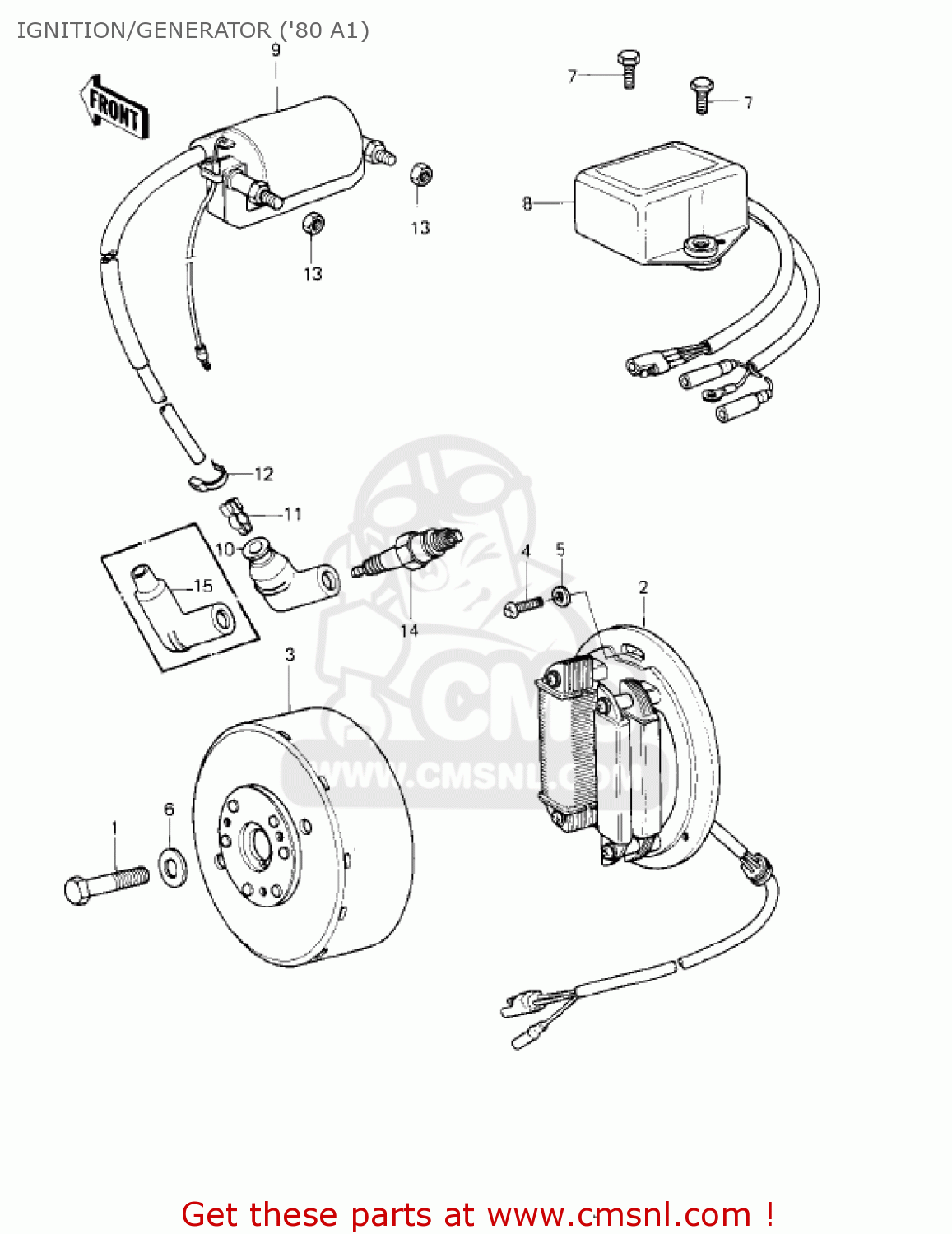

Ignition/generator ('80 a1) diagram KDX175-A3 KDX175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

920011578
ref: 1

BOLT,FLANGED,8X40

€ 4.00

210031029
ref: 2

STATOR,MAGNETO

€ 375.50

210071027
ref: 3

ROTOR,MAGNETO

€ 369.00

220B0616
ref: 4

SCREW-PAN HEAD,6X16

€ 2.50

410B0600
ref: 5

WASHER-PLAIN-SMALL,6M

€ 0.50

92022276
ref: 6

WASHER,PLAIN,8MM

€ 6.50

112G0618
ref: 7

BOLT-UPSET

€ 0.50

211191015
ref: 8

IGNITER

€ 165.00

211211032
ref: 9

COIL,IGNITION

€ 93.00

211301006
ref: 10

CAP-SPARK PLUG

€ 18.00

21169001
ref: 11

TERMINAL,PLUG CAP

€ 10.00

920371173
ref: 12

CLAMP,SPARK PLUG CAP

€ 1.00

92019008
ref: 13

NUT-LOCK,6MM

€ 3.00

B9ESA
ref: 14

NGK SPARK-PLUG B9ES

€ 3.00

920703002
ref: 14

BR9EVX (NGK SPARKPLUG

€ 54.00

211601009
ref: 15

CAP-ASSY-PLUG

€ 28.00
