MUFFLER (KDX175-A3)
KDX175-A3 KDX175 1982 USA CANADA

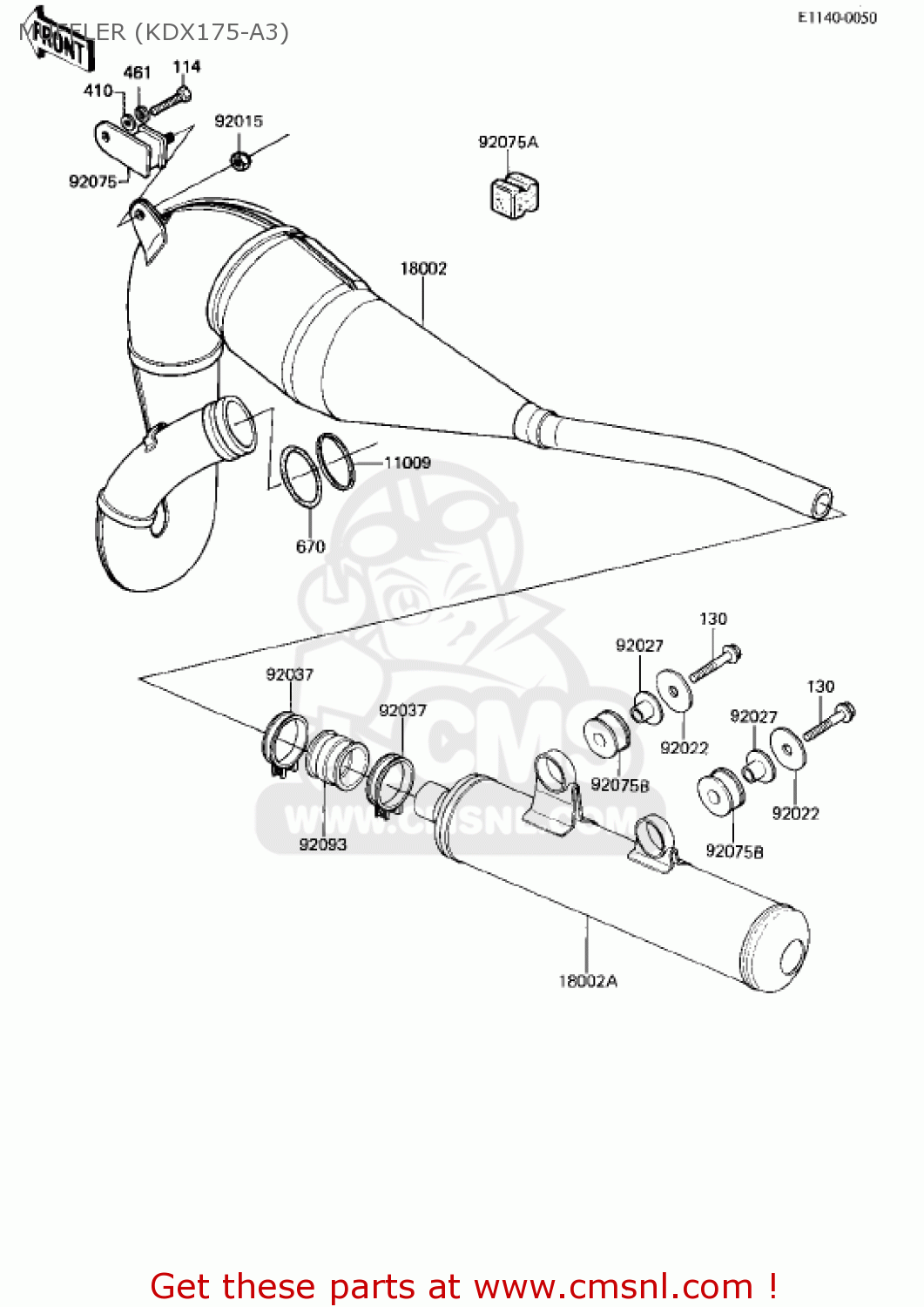

Muffler (kdx175-a3) diagram KDX175-A3 KDX175 1982 USA CANADA
MUFFLER (KDX175-A3) KDX175-A3 KDX175 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091123
ref: 11009
GASKET,EXHAUST HOLDER (NAS)
€ 10.50
18002
180021128
ref: 18002
BODY-COMP-MUFFLER,F.B
€ 376.00
18002A
180021188
ref: 18002A
BODY-COMP-MUFFLER
€ 204.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92022
92022298
ref: 92022
WASHER,8.5X35X2.3
€ 9.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
920371129
ref: 92037
CLAMP,40MM
€ 6.00
92075
920751060
ref: 92075
DAMPER,MUFFLER FITTIN
€ 18.50
92075A
920751339
ref: 92075A
DAMPER,CYLINDER HEAD
€ 3.00
92075B
920751196
ref: 92075B
DAMPER,MUFFLER
€ 5.50
92093
920931012
ref: 92093
SEAL,EXHAUST PIPE
€ 24.00
114
115G0825
ref: 114
BOLT-HEX,HEAD,8X25
€ 3.00
130
130G0830
ref: 130
BOLT,8X30
€ 1.00
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
670
670E3045
ref: 670
O RING,45MM
€ 11.50
