HEADLIGHT ('80 A1)
KDX175-A3 KDX175 1982 USA CANADA

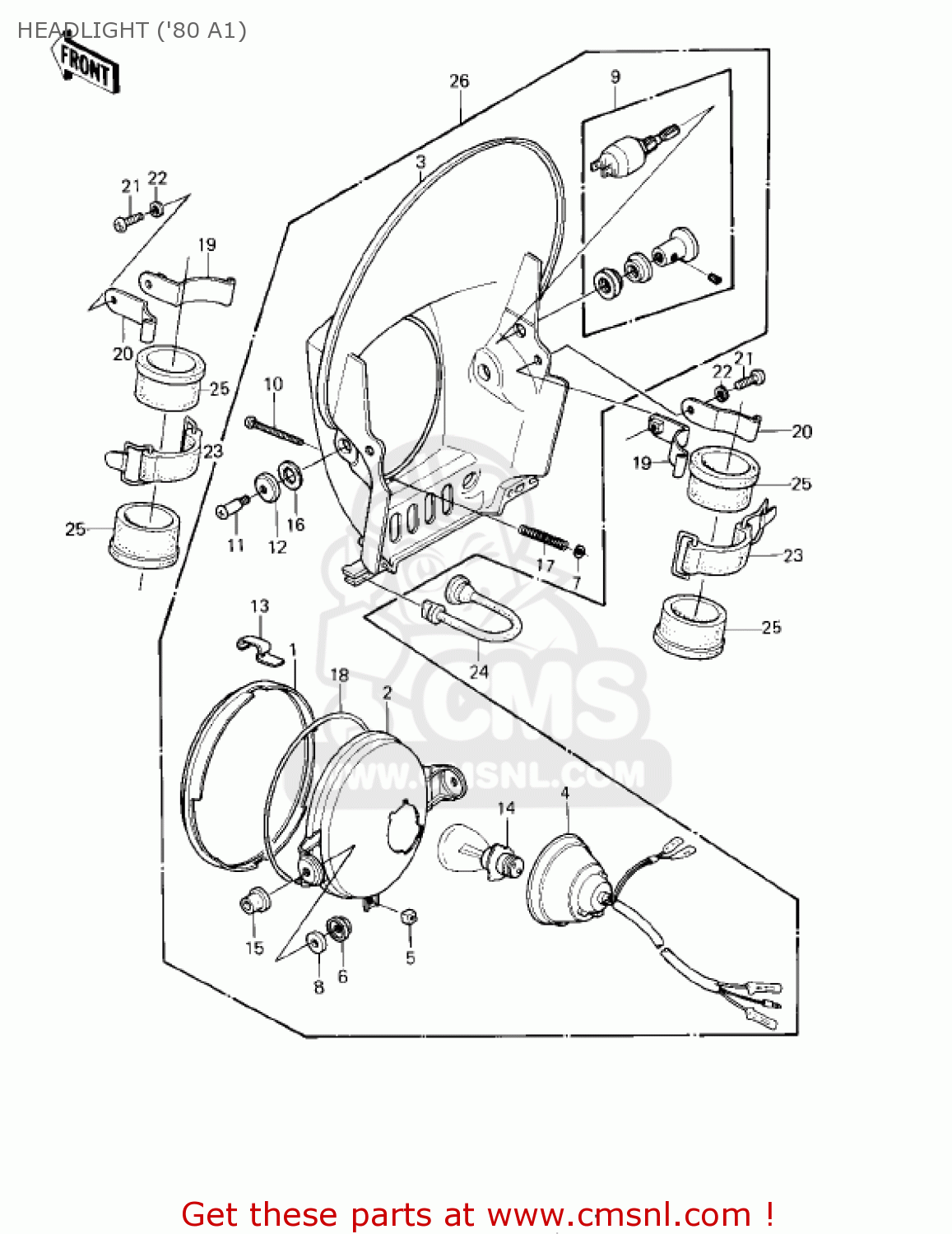

Headlight ('80 a1) diagram KDX175-A3 KDX175 1982 USA CANADA
HEADLIGHT ('80 A1) KDX175-A3 KDX175 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
140254002
ref: 1
COVER,HEAD LAMP
€ 18.00
2
230044001
ref: 2
LENS UNIT,HEAD LAMP
€ 35.00
3
2300550027F
ref: 3
BODY-COMP-HEAD LAMP,L
€ 102.00
4
230084001
ref: 4
SOCKET-ASSY,HEAD LAMP
€ 51.00
5
23020018
ref: 5
NUT,4MM,FOCUS ADJUST
€ 3.00
6
23020023
ref: 6
NUT,5MM
€ 3.00
7
23021004
ref: 7
WASHER,4.1X8X0.8
€ 2.00
8
23021012
ref: 8
WASHER
€ 3.00
9
270044001
ref: 9
SWITCH ASSY,HEAD LAMP
€ 48.50
10
920094002
ref: 10
SCREW,ADJUSTING,4X43
€ 4.00
11
920094003
ref: 11
SCREW,HEAD LAMP
€ 1.50
12
920224005
ref: 12
WASHER,HEAD LAMP
€ 3.00
13
920374001
ref: 13
CLAMP,HEAD LAMP
€ 6.00
14
920694001
ref: 14
BULB,6V-35/25W
€ 9.00
15
920754009
ref: 15
DAMPER RUBBER,HD LAMP
€ 2.50
16
920754010
ref: 16
DAMPER,HEAD LAMP
€ 2.50
17
920814003
ref: 17
SPRING,FOCUS ADJUST
€ 1.50
18
920934001
ref: 18
SEAL,HEAD LAMP
€ 3.50
19
110341688
ref: 19
BRACKET,HEAD LAMP FIT
€ 6.00
20
110341693
ref: 20
BRACKET,HEAD LAMP FIT
€ 4.50
21
220B0616
ref: 21
SCREW-PAN HEAD,6X16
€ 2.50
22
461F0600
ref: 22
WASHER-SPRING,6MM
€ 0.50
23
92072076
ref: 23
BAND,L=40
€ 14.00
24
92072077
ref: 24
BAND
€ 3.50
25
920751236
ref: 25
DAMPER RUBBER,LAMP
€ 8.50
26
230014001
ref: 26
HEAD LAMP ASSY
€ 166.50
