REAR SUSPENSION ('80 A1)
KDX175-A3 KDX175 1982 USA CANADA

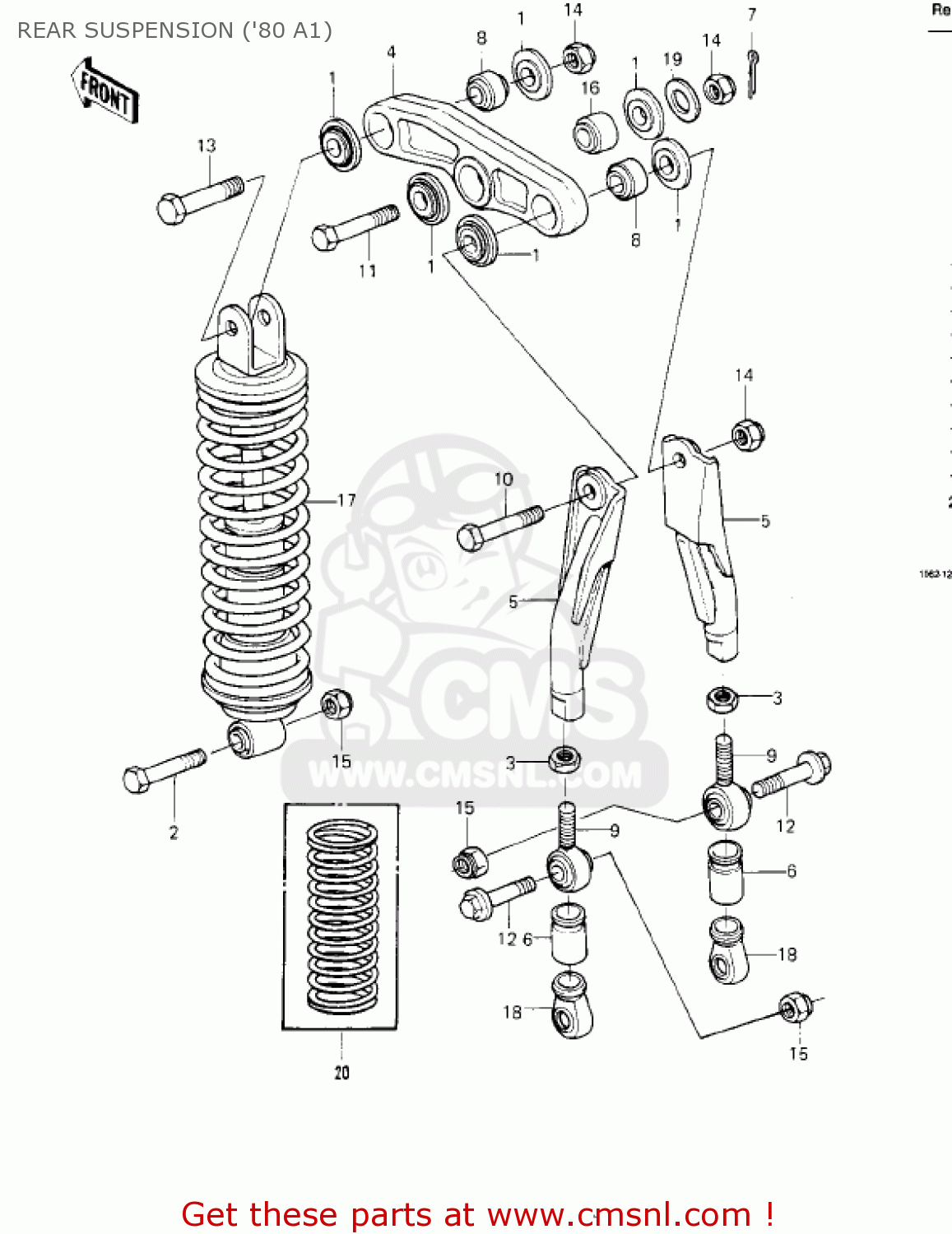

Rear suspension ('80 a1) diagram KDX175-A3 KDX175 1982 USA CANADA
REAR SUSPENSION ('80 A1) KDX175-A3 KDX175 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110121117
ref: 1
CAP,SUSPENSION ARM
€ 10.00
2
113P1255A
ref: 2
BOLT,HEX HEAD 12X55
€ 6.00
3
315B1200
ref: 3
NUT,12MM
€ 0.50
4
390071003
ref: 4
ARM,SUSPENSION
€ 93.00
5
461025001
ref: 5
ROD-ASSY,UNITRAK
€ 74.50
6
490061045
ref: 6
BOOT,BALL JOINT
€ 9.00
7
550D2525
ref: 7
PIN-COTTER,2.5X25
€ 1.00
8
592661001
ref: 8
SPHERICAL BEARING
JOINT-BALL,MBWTD14-20
€ 113.50
9
592661002
ref: 9
JOINT-BALL,HR12E-202
€ 91.50
10
920011295
ref: 10
BOLT,HEX HEAD,14X54
€ 6.00
11
920011335
ref: 11
BOLT,HEX HEAD,14X59
€ 14.00
12
920011306
ref: 12
BOLT,HEX HEAD,12X40
€ 7.50
13
920011317
ref: 13
BOLT,HEX HEAD,14X50
€ 8.00
14
92019011
ref: 14
NUT,LOCK,14MM
€ 6.00
15
92019009
ref: 15
NUT,LOCK,12MM
€ 5.00
16
920281087
ref: 16
SLEEVE BEARING
BUSHING,14X27.5X17
€ 108.00
17
450141052
ref: 17
SHOCK ABSORBER,REAR
€ 291.50
18
490061046
ref: 18
BOOT,BALL JOINT
€ 9.00
19
410B1400
ref: 19
410B1400
20
920811348
ref: 20
6.5 KG/MM
SPRING,RR SHCK ABSBR
€ 115.50
20
920811235
ref: 20
6.0 KG/MM
SPRING,REAR SHOCK
€ 133.00
20
920811236
ref: 20
7.0 KG/MM
SPRING,REAR SHOCK
€ 133.00
