BRAKE PEDAL/TORQUE LINK ('80 A1)

KDX175-A3 KDX175 1982 USA CANADA

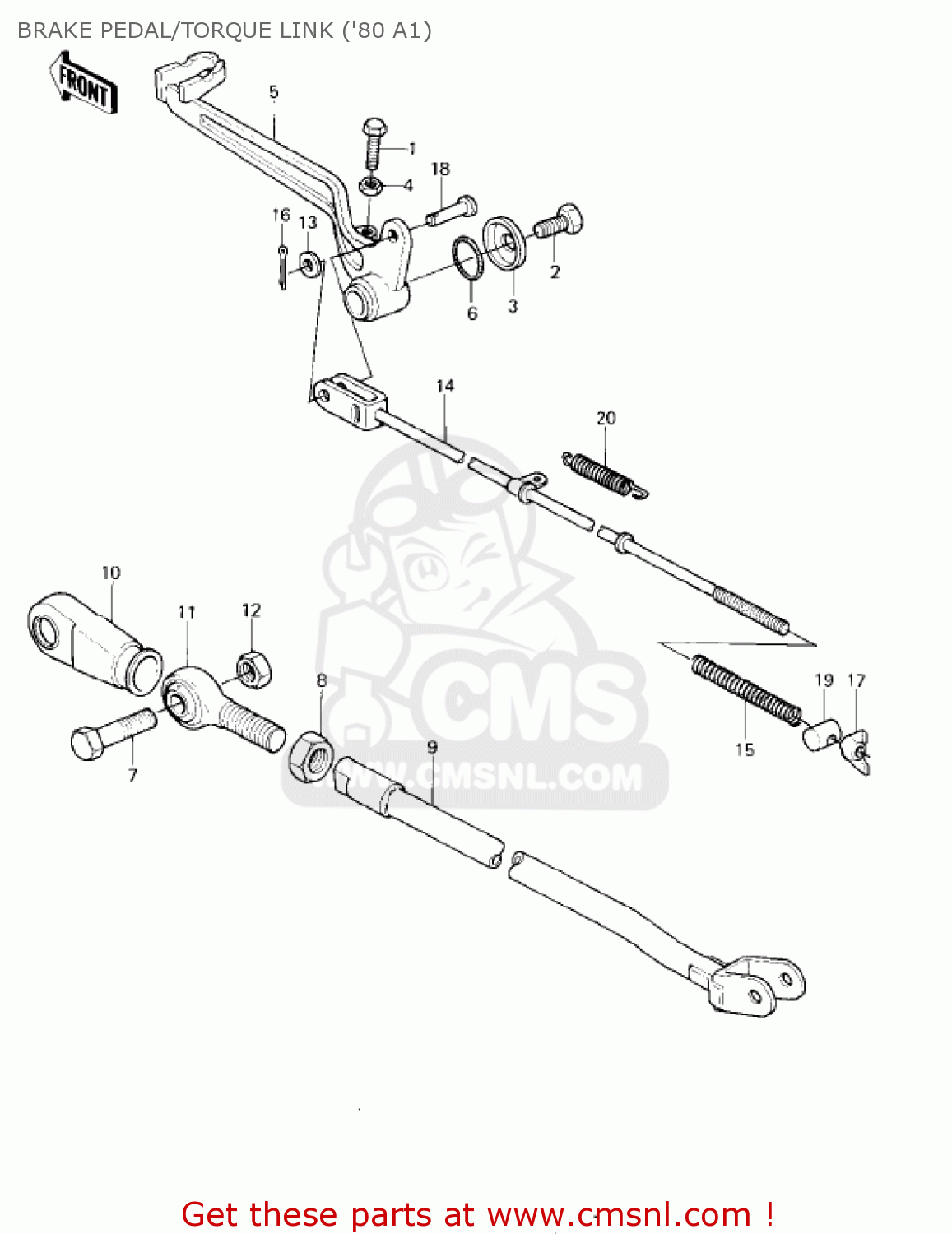

Brake pedal/torque link ('80 a1) diagram KDX175-A3 KDX175 1982 USA CANADA

BRAKE PEDAL/TORQUE LINK ('80 A1) KDX175-A3 KDX175 1982 USA CANADA

BRAKE PEDAL/TORQUE LINK ('80 A1) KDX175-A3 KDX175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

112G0625
ref: 1

BOLT-UPSET,6X25

€ 4.00

2

114G0812
ref: 2

BOLT-SMALL,8X12

€ 2.00

3

110121116
ref: 3

CAP,BRAKE PEDAL FITT

€ 3.00

4

311B0600
ref: 4

NUT,6MM

€ 0.50

5

430011043
ref: 5

PEDAL,BRAKE

€ 39.00

6

670B2018
ref: 6

O RING,18MM

€ 1.00

7

113P1235A
ref: 7

BOLT,HEX HEAD 12X35

€ 4.00

8

315B1200
ref: 8

NUT,12MM

€ 0.50

9

430071018
ref: 9

TORQUE LINK,RR BRAKE

€ 42.00

10

490061035
ref: 10

BOOT,BALL JOINT

€ 5.50

11

592661003
ref: 11

JOINT,BALL TORQUE LNK

€ 58.00

12

92019009
ref: 12

NUT,LOCK,12MM

€ 5.00

13

410B0600
ref: 13

WASHER-PLAIN-SMALL,6M

€ 0.50

14

430111019
ref: 14

ROD-BRAKE

€ 28.00

15

43012001
ref: 15

SPRING,BRAKE ROD

€ 3.00

16

550D2015
ref: 16

PIN-COTTER,2.0X15

€ 1.00

17

920154004
ref: 17

NUT,BRAKE ADJUSTING

€ 4.50

18

92043064
ref: 18

PIN-BRAKE ROD FITTING

€ 4.50

19

920431024
ref: 19

PIN,BRAKE

€ 6.00

20

920811059
ref: 20

SPRING,RETURN

€ 5.50
