SWING ARM ('80 A1)
KDX175-A3 KDX175 1982 USA CANADA

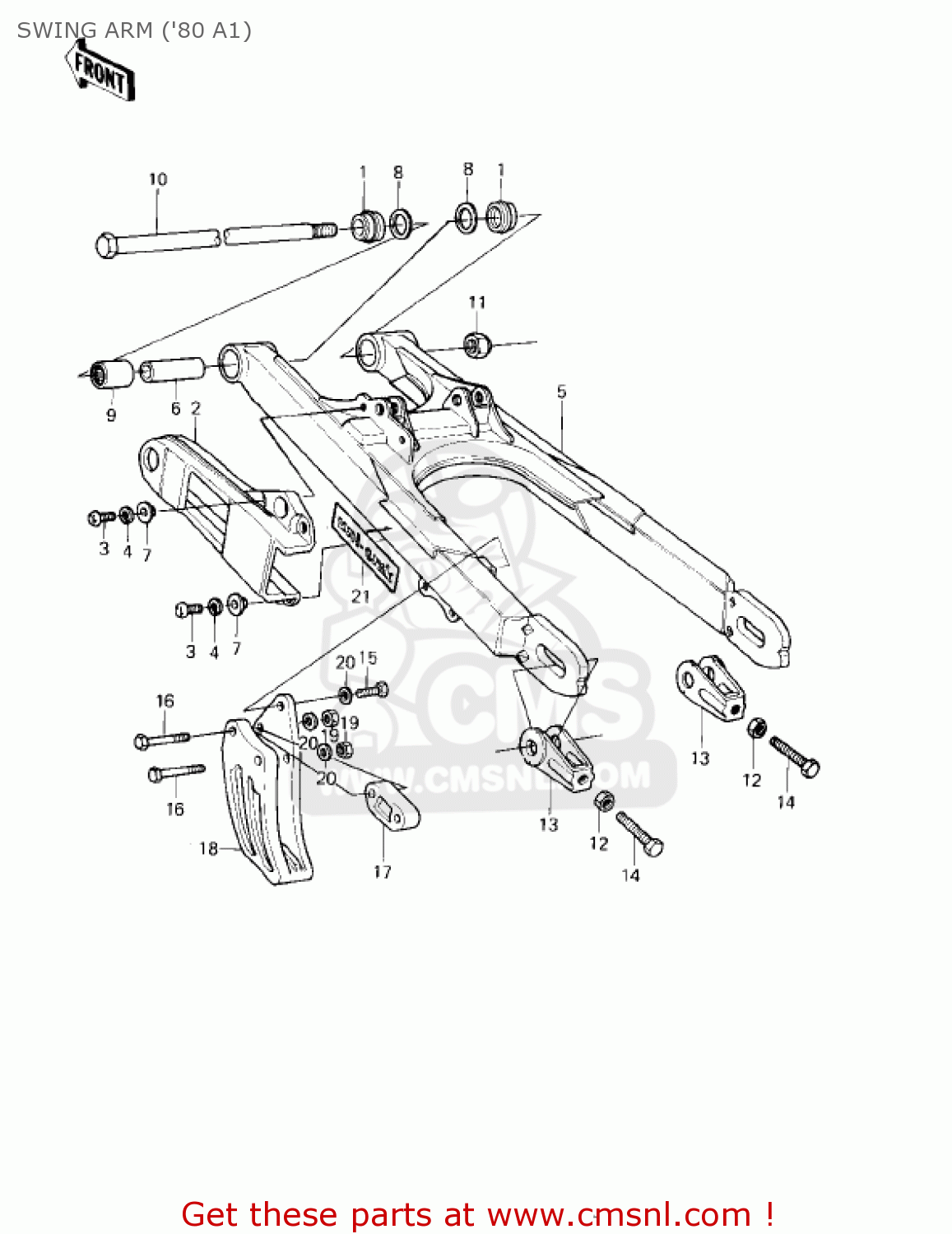

Swing arm ('80 a1) diagram KDX175-A3 KDX175 1982 USA CANADA
SWING ARM ('80 A1) KDX175-A3 KDX175 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110121099
ref: 1
CAP,SWING ARM
€ 14.50
2
120531043
ref: 2
GUIDE,CHAIN,FRONT
€ 42.00
3
220B0614
ref: 3
SCREW-PAN HEAD,6X14
€ 2.00
4
461F0600
ref: 4
WASHER-SPRING,6MM
€ 0.50
5
330011069
ref: 5
ARM,SWING
€ 243.50
6
420361031
ref: 6
SLEEVE,SWING ARM
€ 33.50
7
920271260
ref: 7
COLLAR
€ 4.00
8
920251116
ref: 8
SHIM,20X26.6X0.5
€ 2.50
9
920461031
ref: 9
BEARING-NEEDLE,HMK203
€ 20.50
10
330321020
ref: 10
SHAFT-SWING ARM
€ 64.50
11
92019011
ref: 11
NUT,LOCK,14MM
€ 6.00
12
312B0800
ref: 12
NUT,8MM
€ 0.50
13
33040043
ref: 13
ADJUSTER-CHAIN
€ 20.50
14
920011179
ref: 14
BOLT,CHAIN ADJUSTER
€ 12.50
15
112B0622
ref: 15
BOLT, 6X22
€ 2.50
16
112G0660
ref: 16
BOLT-UPSET
€ 3.00
17
120531039
ref: 17
GUIDE-CHAIN,RR,UPP
€ 10.50
18
550201038
ref: 18
GUARD,CHAIN
€ 24.50
19
92019008
ref: 19
NUT-LOCK,6MM
€ 3.00
20
92022125
ref: 20
WASHER,6.5X20X1.6
€ 1.00
21
560181157
ref: 21
MARK
€ 4.00
