CRANKSHAFT/PISTON ('81-'82 A2/A3

KDX175-A3 KDX175 1982 USA CANADA

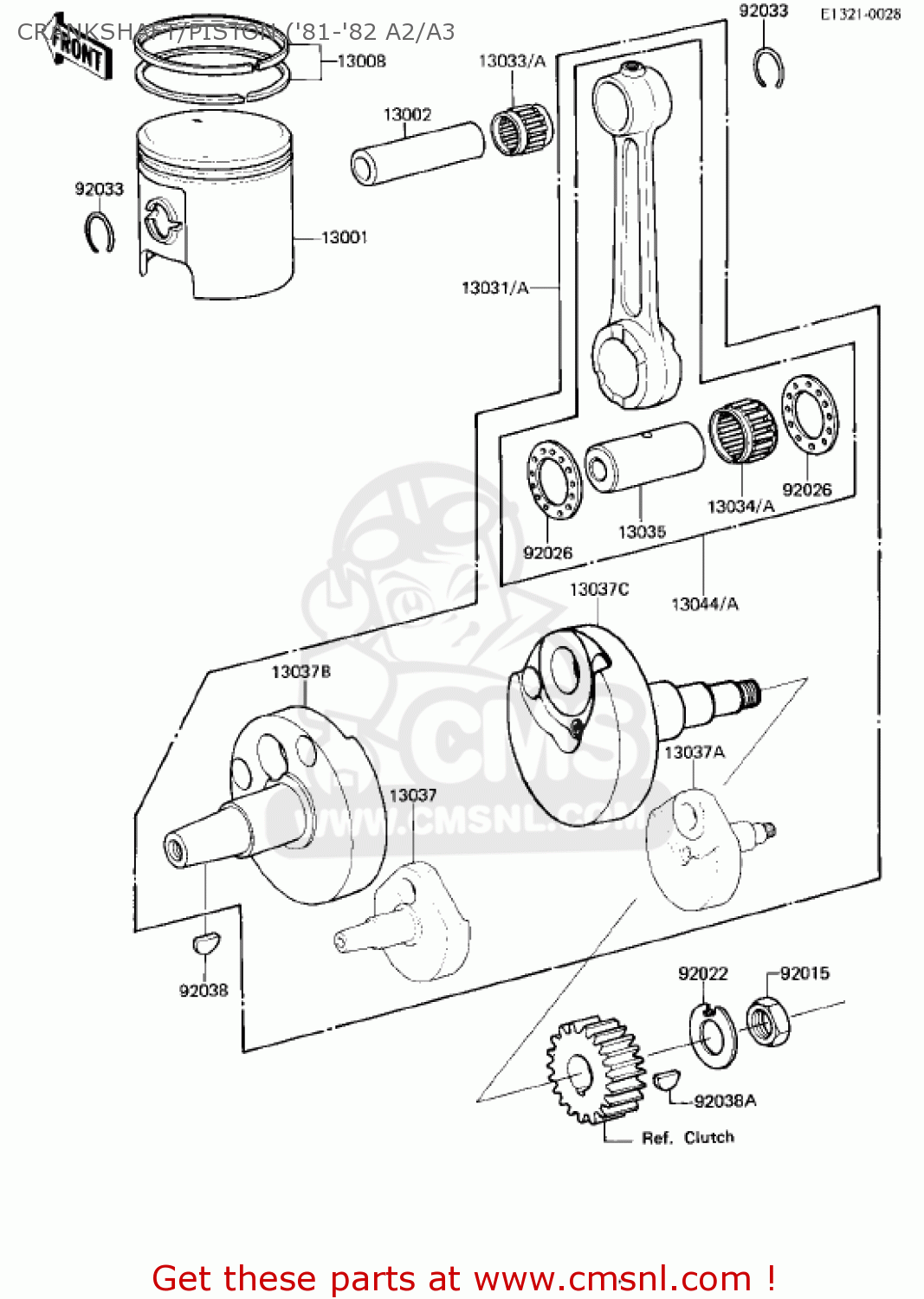

Crankshaft/piston ('81-'82 a2/a3 diagram KDX175-A3 KDX175 1982 USA CANADA

CRANKSHAFT/PISTON ('81-'82 A2/A3 KDX175-A3 KDX175 1982 USA CANADA

CRANKSHAFT/PISTON ('81-'82 A2/A3 KDX175-A3 KDX175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

13001

130011048
ref: 13001

PISTON-ENGINE

€ 66.00

13002

130021004
ref: 13002

PIN-PISTON

€ 5.00

13008

130085034
ref: 13008

RING-SET-PISTON

€ 48.50

13031

130311032
ref: 13031

CRANKSHAFT ASSY

€ 203.00

13031A

130315010
ref: 13031A

CRANKSHAFT COMP

€ 267.50

13033

130331004
ref: 13033

BEARING-NEEDLE,KBK162

€ 24.00

13033A

130331007
ref: 13033A

BEARING-SMALL END

€ 24.00

13034

130341002
ref: 13034

BEARING-NEEDLE,SKT228

€ 64.00

13034A

130341035
ref: 13034A

BEARING-BIG END,SKT22

€ 37.50

13035

130351001
ref: 13035

PIN-CRANK

€ 25.50

13037

130371062
ref: 13037

CRANKSHAFT,L.H

€ 131.50

13037A

130371063
ref: 13037A

CRANKSHAFT,R.H

€ 203.50

13037B

130371103
ref: 13037B

CRANKSHAFT,LH

€ 130.00

13037C

130371104
ref: 13037C

CRANKSHAFT,RH

€ 131.50

13044

130445017
ref: 13044

SET-CONNECTING ROD

€ 173.00

13044A

130445018
ref: 13044A

SET-CONNECTING ROD

€ 132.00

92015

92015006
ref: 92015

NUT,12MM

€ 3.50

92022

920221063
ref: 92022

WASHER,CLAW,12.5X32X0

€ 3.50

92026

92026011
ref: 92026

SPACER,22.5X37X1.0

€ 6.50

92033

92036004
ref: 92033

CIRCLIP-PISTON PIN

€ 0.50

92038

92038001
ref: 92038

WOODRUFF KEY

€ 3.00

92038A

92038003
ref: 92038A

WOODRUFF KEY-PRY PINI

€ 1.50
