TAIL LAMP
KDX125-B4 KDX125SR 1993 FRANCE

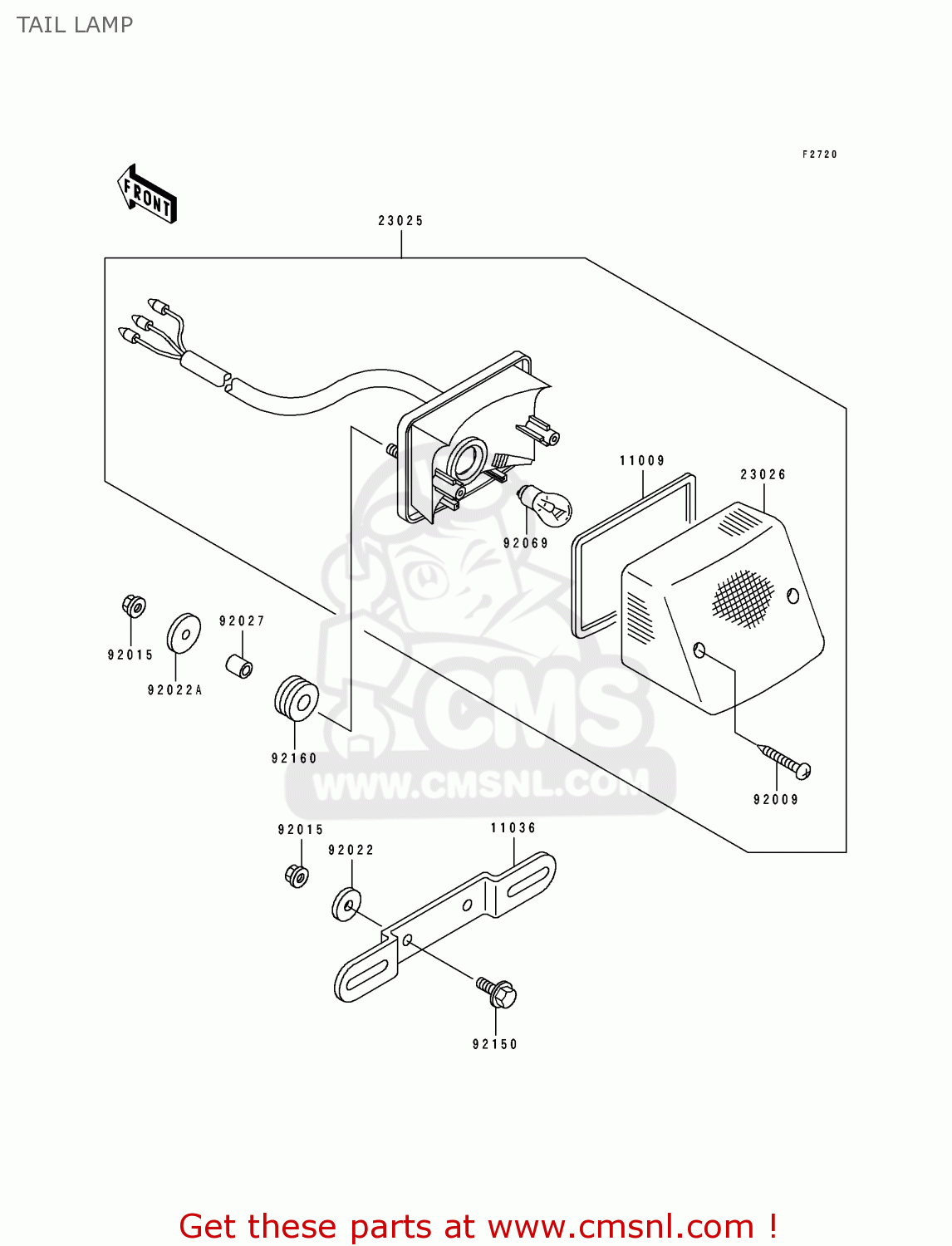

Tail lamp diagram KDX125-B4 KDX125SR 1993 FRANCE
TAIL LAMP KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
11009
110091078
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 4.50
11036
110361040
ref: 11036
BRACKET-A,LICENSE PLT
€ 13.00
23025
230251198
ref: 23025
LAMP-TAIL
€ 85.50
23026
230261113
ref: 23026
LENS,TAIL LAMP
€ 51.50
92009
920091056
ref: 92009
SCREW,TAPPING
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92022A
920221690
ref: 92022A
WASHER
€ 2.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92069
920691084
ref: 92069
BULB,12V 21/5W
€ 6.00
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92160
921601162
ref: 92160
DAMPER
€ 3.00
