CARBURETOR
KDX125-B4 KDX125SR 1993 FRANCE

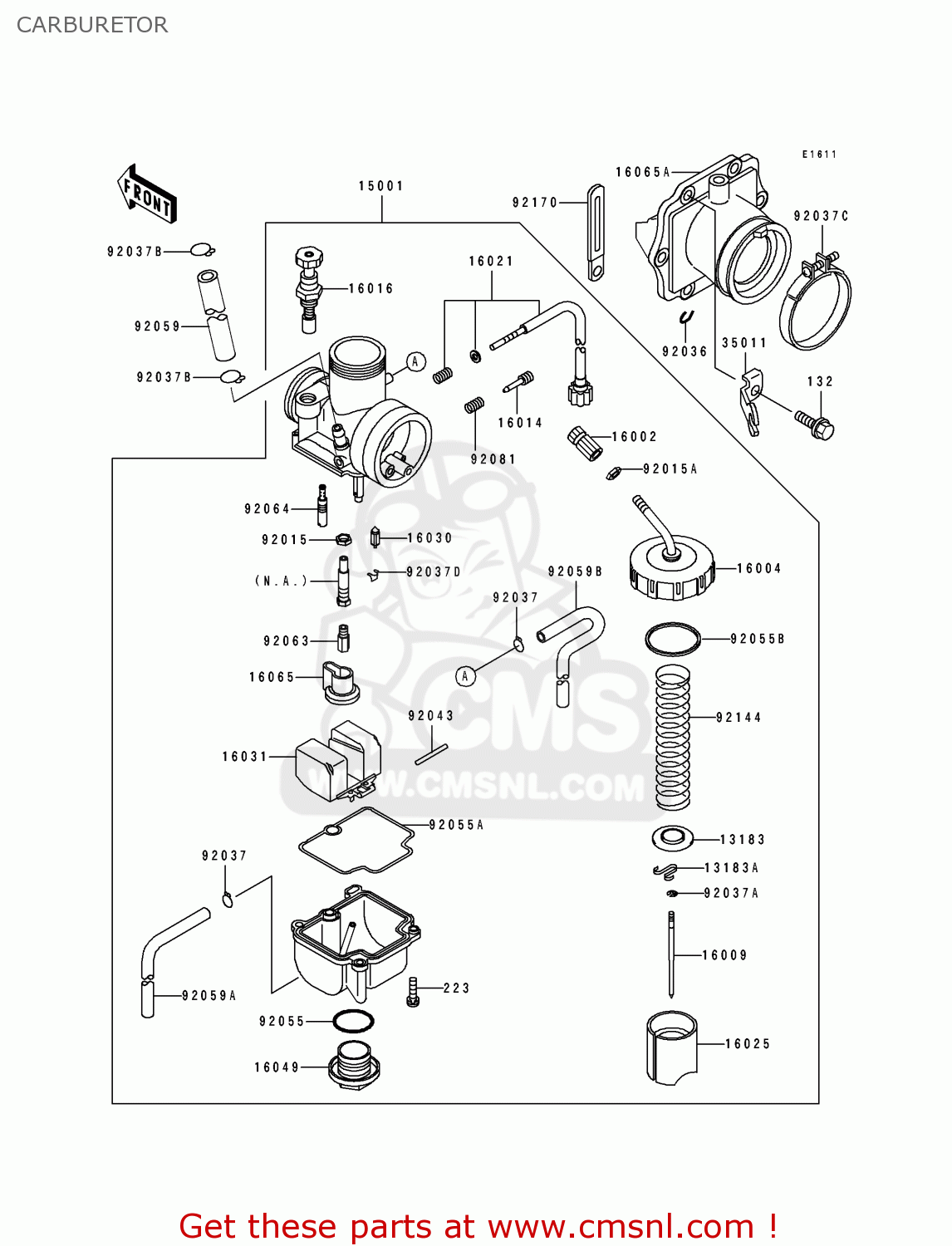

Carburetor diagram KDX125-B4 KDX125SR 1993 FRANCE
CARBURETOR KDX125-B4 KDX125SR 1993 FRANCE
×
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
13183
131831162
ref: 13183
PLATE
€ 7.50
13183A
131831250
ref: 13183A
PLATE,THROTTLE
€ 9.00
15001
150011670
ref: 15001
CARBURETOR-ASSY
€ 352.50
16002
160021057
ref: 16002
ADJUSTER-CABLE
€ 13.00
16004
160041068
ref: 16004
CAP-CHAMBER
€ 49.50
16009
160091634
ref: 16009
NEEDLE-JET,N99A
€ 26.50
16014
160141033
ref: 16014
SCREW-PILOT AIR
€ 13.50
16016
160161028
ref: 16016
PLUNGER,STARTER
€ 75.00
16021
160211142
ref: 16021
SCREW-THROTTLE STOP
€ 36.50
16025
160251143
ref: 16025
VALVE-THROTTLE,CA6.0
€ 145.00
16030
160301064
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311065
ref: 16031
FLOAT
€ 39.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160651162
ref: 16065
HOLDER-CARBURETOR
€ 23.50
16065A
160651209
ref: 16065A
HOLDER-CARBURETOR
€ 53.00
35011
350111539
ref: 35011
STAY
€ 3.00
92015
920151674
ref: 92015
NUT
€ 5.50
92015A
920151772
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 3.00
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371396
ref: 92037
CLAMP,TUBE
€ 3.50
92037A
920371401
ref: 92037A
CLAMP,JET NEEDLE
€ 2.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371527
ref: 92037C
CLAMP,43MM
€ 12.00
92037D
920371991
ref: 92037D
CLAMP,FLOAT
€ 5.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551167
ref: 92055
RING-O,MAIN JET COVER
€ 6.50
92055A
920551389
ref: 92055A
RING-O,FLOAT CHAMBER
€ 6.50
92055B
920551390
ref: 92055B
RING-O,CHAMBER TOP
€ 5.00
92059
920591295
ref: 92059
TUBE,6.5X11.5X215
€ 4.50
92059A
920591844
ref: 92059A
TUBE,4X7X300
€ 10.00
92059B
920591941
ref: 92059B
TUBE,4X7X360
€ 10.00
92063
920631355
ref: 92063
JET-MAIN,#115
€ 8.50
92064
920641143
ref: 92064
JET-PILOT,#48
€ 11.50
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92144
921441177
ref: 92144
SPRING,THROTTLE VALVE
€ 10.50
92170
921701113
ref: 92170
CLAMP
€ 2.50
